EN-30 CKW-55 CHECKWEIGHER
Bar Graph Increment
This menu item is used to define how the bar graph segments are incremented during
checkweighing.
Selections are:
Scaled = Each bar graph increment is automatically calculated based on the set point
entries and scaled relative to the scale capacity.
AUTO = Each bar graph increment is automatically calculated based on the set point
entries.
User = The value of under and over bar graph increment is set by the user via the
numeric keypad.
When selected, the display flashes the last Increment value entered. Enter a
value within one scale division and full scale capacity.
Note: The user value can be set to represent the weight of a single item which
will display as a single segment.

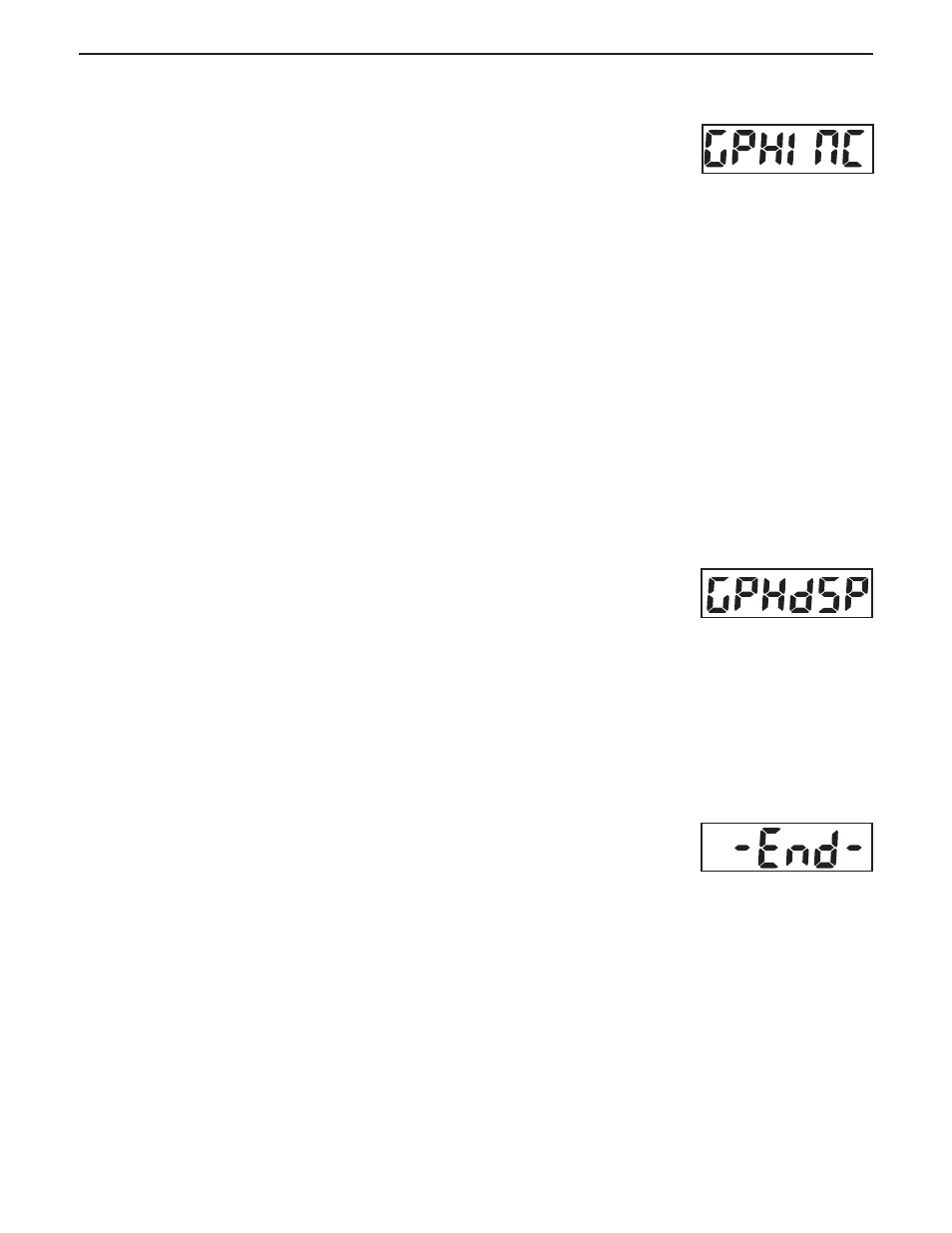

Graph Display
This menu item is used to define how the bar graph segments are grouped during
checkweighing.
Selections are:
Segment = Bar graph segment light up one at a time.
(SEG)
Bar = Bar graph segments light up as a continuous bar.
Block = Bar graph section will light up as a single block.
(BLOC)
END
Represents the end of the menu.
