Condensate vessel TK 10 TK 11 TK 12/LA5 TK13 TK13/LA5
Part number 09K4250 09K4200 09K4300 09K4310 09K4320
Contents approx. 1 litre 10 litre
Operating pressure at 20 °C 0,2 to 2 bar abs. atmospheric
Sample temperature 0 to +50 °C
Ambient temperature 0 to +55 °C
Storage temperature -15 to +65 °C
Connection condensate IN 1x G3/8" i, 2x G1/4" i 1x G3/8" i, 1x M28
x1,5 i 1x G3/8" i, 1x M28
x1,5 i 3x DN4/6 2x DN4/6
Connection condensate OUT 3x G1/4" i stopcock ø11,5
Dimensions see drawing 235x310 mm ø x h
Weight 0,5 kg 0,6 kg 1 kg
Sample contacting parts PVC, FPM PVC, FPM PVC, FPM PE, rubber, PVDF
With liquid level alarm NO NO (option) YES NO YES
Contact rating 48V 0,5A 10W 48V 0,5A 10W
Condensate vessel TG 1 TG 1/LA 1 TG 10
Part number 09K4000 09K4100 09K4050
Contents approx. 1 litre
Operating pressure at 20 °C 0,2 to 2 bar abs.
Sample temperature 0 to +80 °C
Ambient temperature 0 to +55 °C
Storage temperature -15 to +65 °C
Material of sample contacting parts glass, PTFE
Dimensions 145x290x235 mm / w x h x d
Connections 1x GL25-12, 1x GL25, 1x 13 mm
nipple 2x GL25-12, 1x 13 mm nipple 1x GL25-12, 1x 13 mm nipple
Weight 1 kg 2 kg 1 kg
With liquid alarm unit NO (option) YES NO
Power supply 115/230V 50/60Hz 2VA
Technical Data
308
230
310

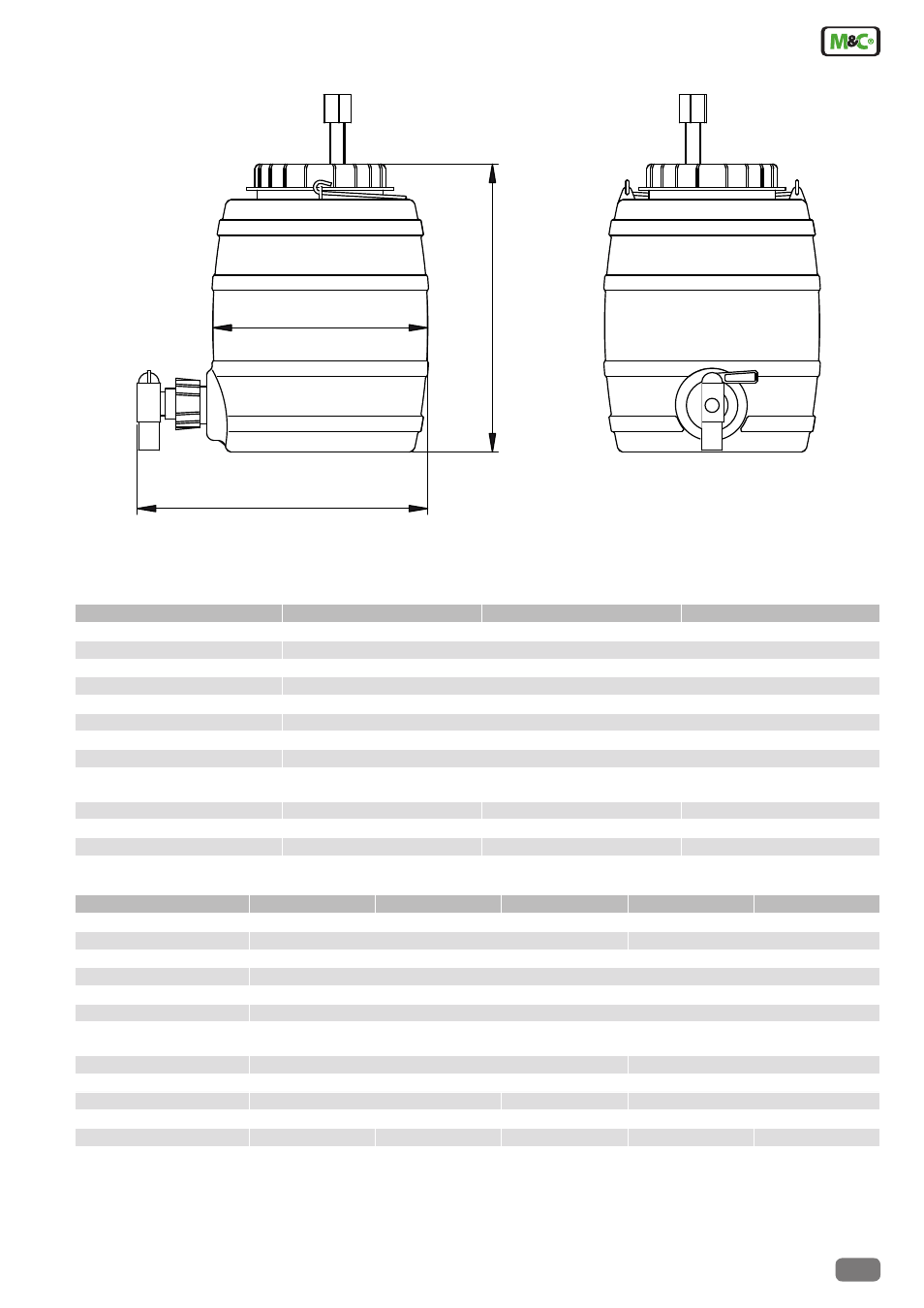

Condensate vessel TK13/LA5
