8.3
Technical specifications and illustrations are without
obligation, subject to modifications.04.99/11.06
65x50
135
Ø16
Chemraz* O-Ring 15
Sleeve nut GL25/18
PG 7
KS2
* Chemraz is a trade mark of Greene Tweed

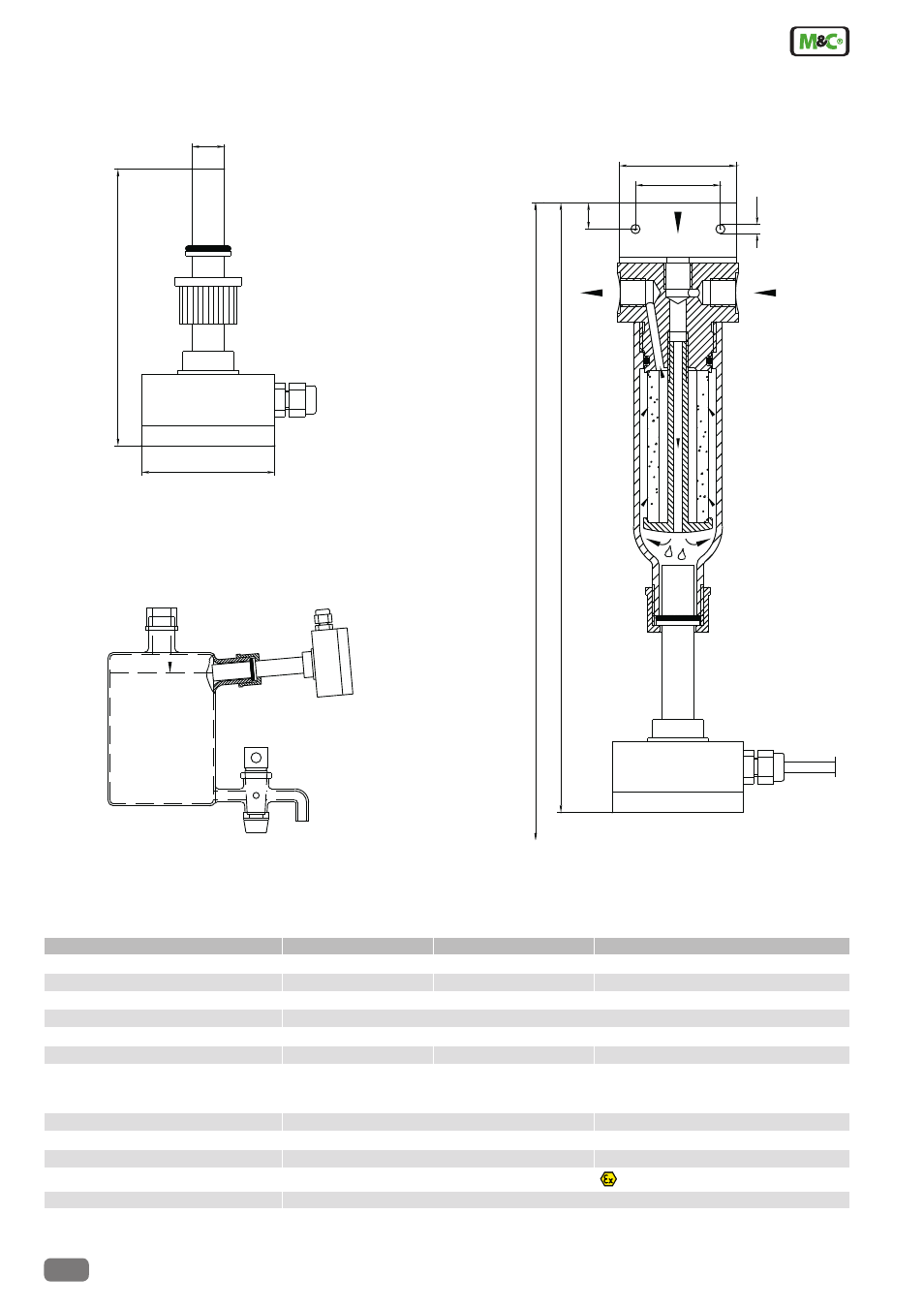

Dimensions
KS 2 / KS 2.Ex liquid sensor Liquid alarm sensor KS 2 / KS 2.Ex
in a universal filter F..-..-D
In the event of condensate penetration, the filter housing acts as a buffer vessel
preventing immediate liquid penetration.
Dimensions in mm
42
58
Ø 5
13
305
* constructional size 410mm
G1/4"
G1/4" G1/4"
*
KS 2
KS 2..liquid sensor for level
monitoring in condensate pot TG1
KS2
TG1
max.
Technical Data
Sensor KS 2 KS 2 Peek KS 2.EX
Part No. 03E4100 03E4110 03E4200
Pressure max. 2 bar abs. max. 11 bar abs. max. 2 bar abs.
Max. operating temperature 0 bis +60 °C 0 bis +50 °C
Liquid alarm limit 1,5 ml
Material of sample contacting parts PTFE, Chemraz*, SS316Ti Peek, Chemraz*, SS316Ti PTFE, Chemraz*, SS316Ti
Sample connection ø 16 mm ø 18 mm ø 16 mm
Option sample connection ø 18 mm,
Part No.. 03E9400 (fitting for mounting: Part
No. 09V2317 GE SS 1/2“NPT-18mm) for mounting in
stainl. steel filter
FSS...-D 1/2“NPT for mounting in stainl. steel
filter
FSS...-D 1/2“NPT
Power supply 8-12V DC , feeding via FA1.1 or FA1.4 8V DC , max. 2,4mA / operating: <1,4mA = Alarm
Method of mounting / mounting position clamping attachment / any position
Connection cable, length 1,5 m standard 3x 0,25 mm
2
2x 0,25 mm
2
System of protection IP 54 EN 60529
II 1 G EEx ia IIC T6, KEMA 03ATEX1006
Weight 190 g
Electronic controller FA1.1 or FA1.4 (see data sheet 9.5) KFA6-SR2-Ex1W
part no. 01U2501 (230V) / 01U2501A (115V)
