6.5
Technical specifications and illustrations are without
obligation, subject to modifications. 10.96/09.09
1)
19“- housing on request - please note on your order
*
Universal units, peristaltic pumps, collecting vessels and fittings are presented in separate data sheets.
Order example:
1 gas cooler ECS-2G, power 115V 60Hz, with 2 heat exchangers out of glass and a universal unit EC-FD with 2 peristaltic pumps
P.N. 1x02K1500A + 1x02k9100 + 1x02K9540A + 1x01P1000 (peristaltic pump SR25.1) + 1x01P9100
Types
P.N.
Execution in wall mounting housing
1)
ECS 1-G
02 K 1500
Gas cooler with 1 heat exchanger out of Borosilicate glass, epth of housing 360 mm, 230V, 50Hz
ECS-1-SS
02 K 2500
Gas cooler with 1 heat exchanger out of stainless steel, depth of housing 360 mm, 230V, 50Hz
ECS-1-PV
02 K 3500
Gas cooler with 1 heat exchanger out of PVDF, depth of housing 360 mm, 230V, 50Hz
/115V
02 K ...A
Power EC/ECS 115V 60Hz
EC-Ex-1G
02 K 5000
Gas cooler with 1 heat exchanger out of Borosilicate glass, depth of housing 450 mm, 230V, 50Hz, EEx execution
EC-Ex-1SS
02 K 5010
Gas cooler with 1 heat exchanger out of stainless steel, depth of housing 450 mm, 230V, 50Hz, EEx execution
EC-Ex-1PV
02 K 5020
Gas cooler with 1 heat exchanger out of PVDF, depth of housing 450 mm, 230V, 50Hz, EEx execution
/115V
02 K ...A
Power EC-Ex 115V 60Hz
Anotherheatexchanger
EC-G
02 K 9100
Jet stream heat exchanger out of Borosilicate glass
EC-G-90°
02 K 9150
Jet stream heat exchanger out of Borosilicate glass with 90° bend at the gas connectors
EC-SS
02 K 9200
Jet stream heat exchanger out of stainless steel 316Ti
EC-PV
02 K 9300
Jet stream heat exchanger out of PVDF
Options
/PT 100
02 K 9500
PT 100 Sensor built in cooling block of EC / ECS for external temperature controlling
EC-F*
02 K 9530
Universal unit with 2 fans and dust filter for mounting under EC / ECS cooler,completely mounted, 230V 50Hz or 115V 60Hz,
not at EC-Ex
EC-FD*
02 K 9540
Universal unit for up to 4 peristaltic pumps with 2 fans and dust filter for mounting under EC / ECS cooler, incl. one peristaltic
pump, completely mounted, 230V 50Hz or 115V 60Hz, not at EC-Ex
EC-D*
02 K 9535
Universal unit for up to 4 peristaltic pumps for mounting under EC / ECS cooler, incl. one peristaltic pump,
completely mounted, 230V 50Hz or 115V 60Hz, not at EC-Ex
/115V
02K95..A
Universal unit, power 115V 60Hz
/SR25.2
01P9140
Extra charge for 1 pc. peristaltic pump SR25.2 incorporated in the front plate of the cooler, compl. installed, cooler weight
plus 0,6 kg per pump

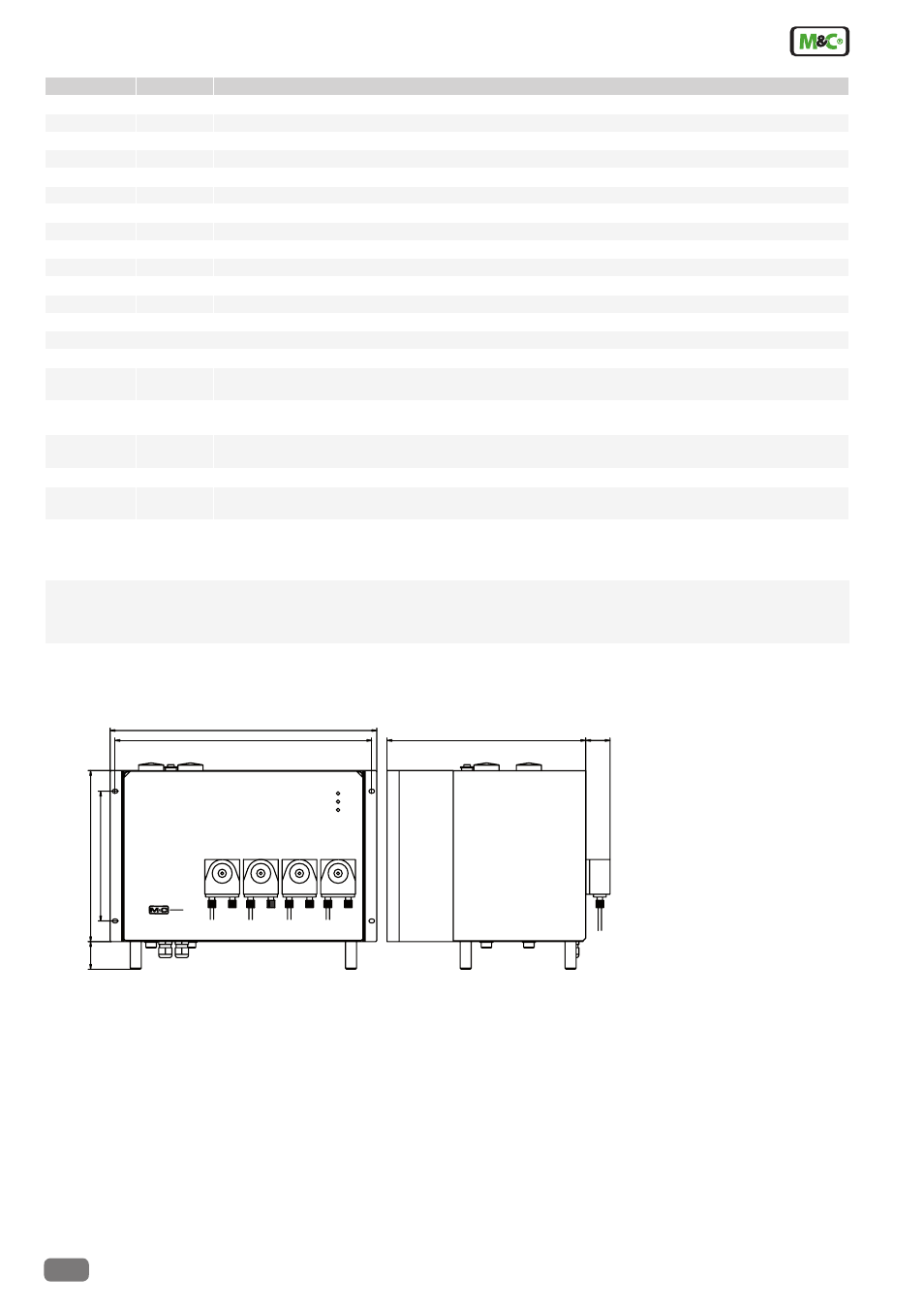

Gas cooler ECS...
465
483
235
310
50
ON
°C>
°C<
Cooler
EC
360
44
Gas cooler ECS... with SR25.2 incorporated in the front plate of the cooler
