12.2
Technical specifications and illustrations are without
obligation, subject to modifications. 09.96/01.07

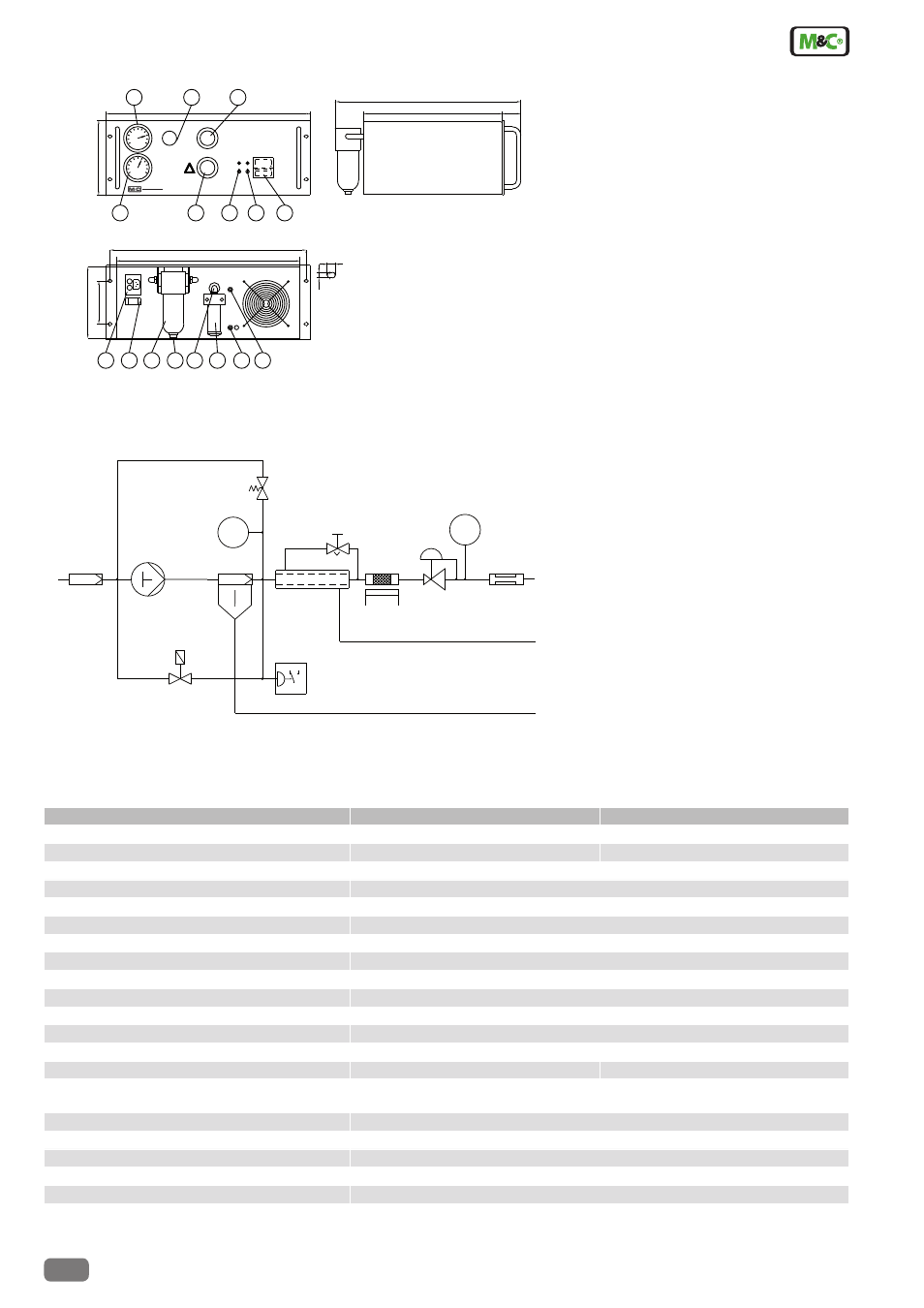

Dimensions
Functional diagram BA-P4
1 Burner air outlet
2 Vent
3 Condensate outlet
4 Air inlet
for BA compressed air IN
B1 Temperature controller
FI1 Air inlet filter
FI2 Membrane dryer
FI3 Catalyst
FI4 Adsorber
M1 Compressor
for BA solenoid valve
P1 Inlet pressure gauge
P2 Outlet pressure gauge
S1 Pump ON switch
for BA solenoid valve ON
S2 Power ON switch
S3 Pressure switch
X1 Power supply
X2 Status contact
Y1
Solenoid valve
YA1 Condensate drainer
YD1 Pressure regulator
YD2 Check valve
YN1 Needle valve
7
10 435
465
169 102
177 (4K)
483 (84TE) 44 360
472
2 3 1 Fl1 4 YA1 X2 X1
B1 S2 S1 Fl3 P1
Fl4 P2 YD1
Rearside
Hot
Catalyst
Adsorber Regulator
Inlet
Outlet
!
BA
Burner air supply
P2
FI3
FI2
P1
YA1 FI1
S3
4 1
2
3
Y1
YD2
YN1
YD1
M1
FI4
Dimensions in mm
Technical Data
Burner air conditioning series BA version BA version BA-P4
Part No. 60A2000 60A2200
Inlet pressure compressed air, 4 - 5,8 bar internal pump
Outlet pressure / Burner air flow 0-4 bar adjustable / max. 3 Nl/min
Ambient temperature +5 °C to +40 °C
Start up time approx. 45 min.
Catalyst temperature 500 °C
Burner air purity <10 ppb C
n
H
m
, H
2
O-dew point <-10 °C
Catalyst poisons Halogens, silicon, lead, materials containing phosphorous
Storage temperature -25 °C to +65 °C
Relative humidity <75 %, avoid condensation
Inlet gas connection compressed air in G1/4"i air suction filter
Outlet gas connections Hose connection DN 4/6 mm* Standard
Condensate connection G1/8 i DIN ISO 228/1
Power supply 230V 50Hz 480VA 230V 50Hz 560VA
Electrical connections Plug with 2 m cable for power in
9-pin sub-D connector for status contact
Status signal contact for pressure and temperature 1 changeover contact - potential free, contact rating 24V, 1A
Case protection IP 20 EN60529
Housing dimensions / protection 19" plug-in unit 4U, 84HP, depth 430 mm / IP 20 EN60529
Weight approx. 14,5 kg approx. 16 kg
Electrical equipment standard EN 61010
