5-.0.9
M&C | TechGroup Germany GmbH
Rehhecke 79, D-40885 Ratingen
[email protected]
www.mc-techgroup.com
Fon +49 (0)2102 935-0
Fax +49 (0)2102 935-111

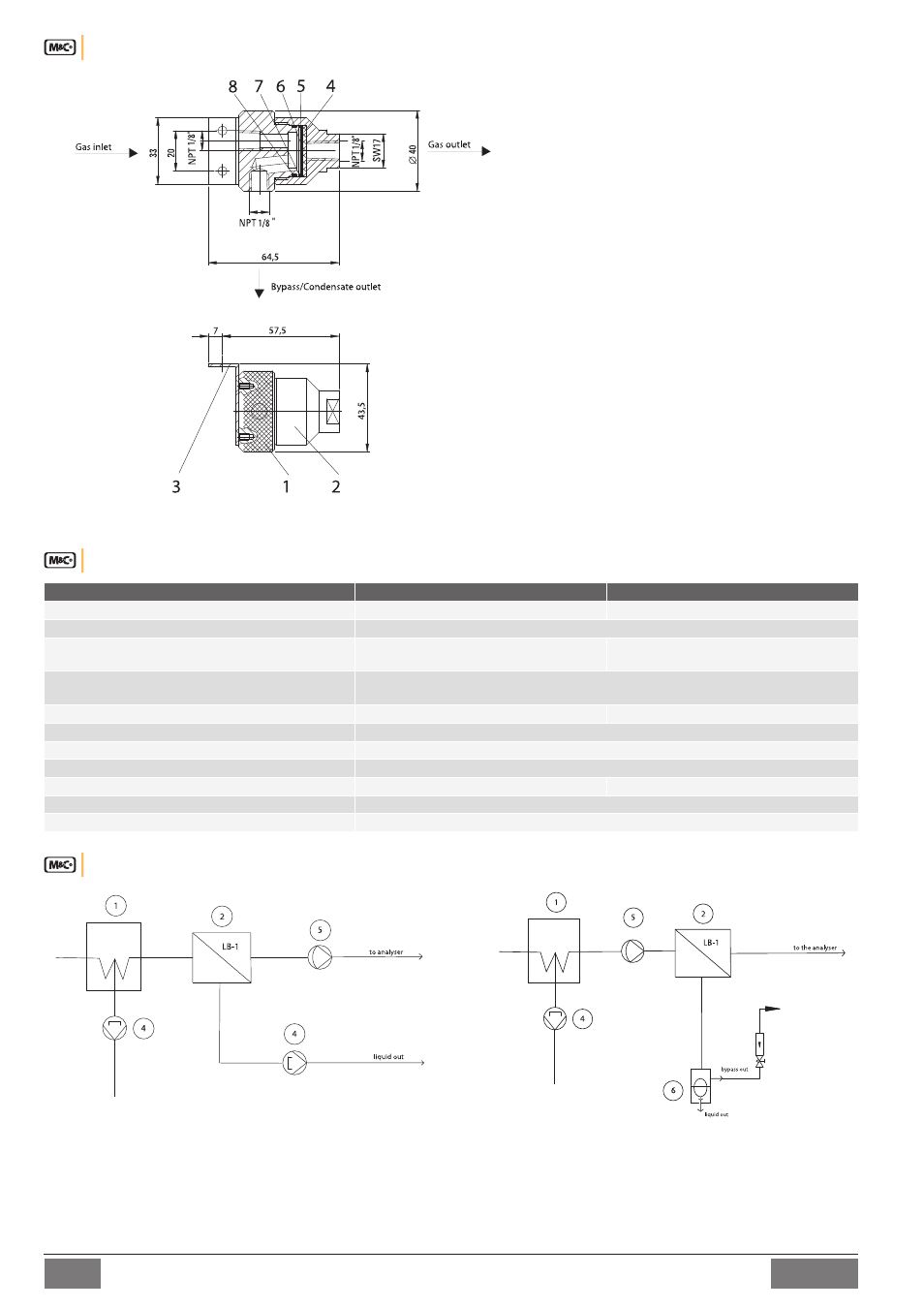

Upper part of housing
Lower part of housing
3 Holding angle
4 Glass filter frit
5 Hydrophobic protective membrane
6 Flat ring of Teflon
7 O-ring FPM
8 O-ring FPM
Dimensions
Dimensions in mm
Technical Data
Examples for application
Gas cooler
Liquid-stop LB-1
4 Liquid drain with peristaltic pump SR25.1
5 Gas sample pump
6 Seperator and automatic liquid drain ADS-SS
Liquid-stop LB-PV LB-SS
Part No. 03F4005 03F4000
Gas flow max. 200 Nl/h
Gas pressure 0,3-2 bar abs.
∆P max. 0,5 bar 0,3 -10 bar abs.
∆P max. 0,5 bar
Differential pressure with clean
protection membrane, medium air, 20°C 50 100 mbar
100 200 Nl/hr
Temperature sample gas max. +80 °C max. +100 °C
Ambient temperature 0 °C to +60 °C
Storage temperature -25 °C to +80 °C
Stagnant space 4 ml
Material of gas bearing parts PVDF, FPM, PTFE, Polyester, glass 1.4571, FPM, PTFE, Polyester, glass
Sample gas / drain connections NPT 1/8"i DIN ISO 228/1
Mounting / weight wall mounting / approx. 0,3 kg
