2.7a
Technical Data
Technical specifications and illustrations are without
obligation, subject to modifications. 07.13
Series SP® Version SP180-H
Part No. 02S1800
Protective cover yes
Outdoor mounting yes
Degree of protection IP54 EN60529
Sample temperature max. 600 °C*
Sample pressure 0,4 to 6 bar abs.
Ambient temperature -20 °C to +60 °C
Dust load max.1 g/m 3
Filter chamber volume 70 ml
Filter element type S-2K, filter porosity 2 µm, ceramic (others on request)
Probe heating +180 °C self-regulated
Ready for operation after 2 hours
Low temperature alarm contact, alarm point <160 °C, NO
Low temperature alarm contact, contact rating 250V-3A AC, 30V-3A DC
Connection sample outlet 1/4"-NPT inside with Swagelok tube connector ø6 x 1 mm (DN4/6)
Connection calibration gas Swagelok tube connector ø6 x 1 mm (DN4/6)
Power supply 110 up to 240V 50/60Hz
Power consumption start up: 400VA, usual: 100VA, (fuse 6A)
Electrical connection terminals max. 2,5 mm 2 , 1xM20, 1xM16 cable glands
Electrical equipment standard EN 61010, EN 60335-1
Mounting flange DN65 PN6, B stainless steel 316Ti
Material of sample contacting parts stainless steel 316 / 316Ti, FPM, ceramic
Dimensions 230x280x225 mm, w x h x d
Weight 7,5 kg
Flow max. 500 Nl/hr
Options
02 S 9200
Insitu probe tube out of stainless steel 316Ti type SP210/SS, connection G3/4“ o, ø 10/12, length
1 m*, incl. flange gasket.
∆P and T90 at flow of: 100 200 500 Nl/hr
∆P pressure loss with new filter element S-2K 4 7 15 mbar
T90 time with insitu probe tube SP210/SS 4,0 2,5 <1,0 sec.
* Standard, other versions on request.

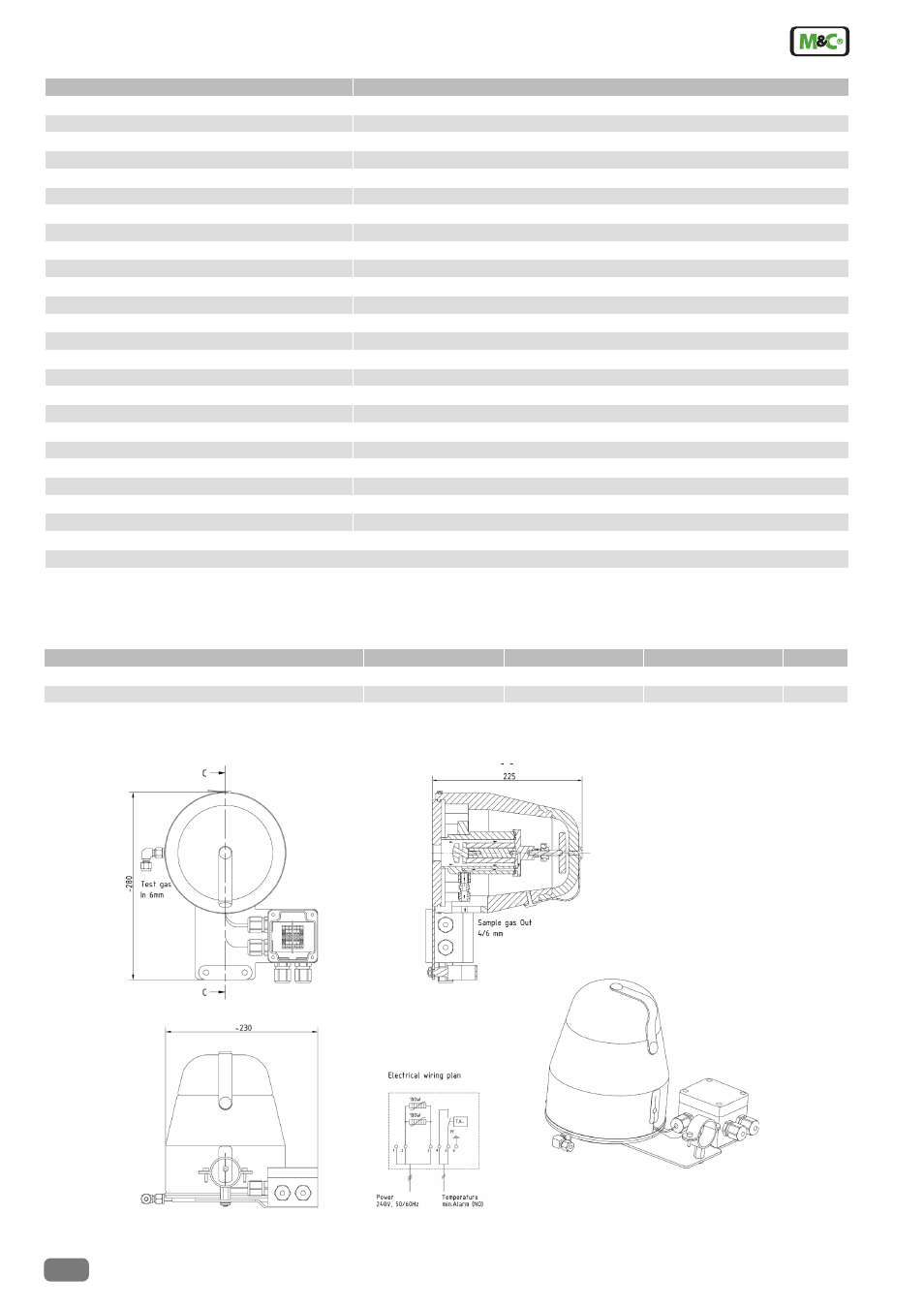

Dimensions
Dimensions in mm
