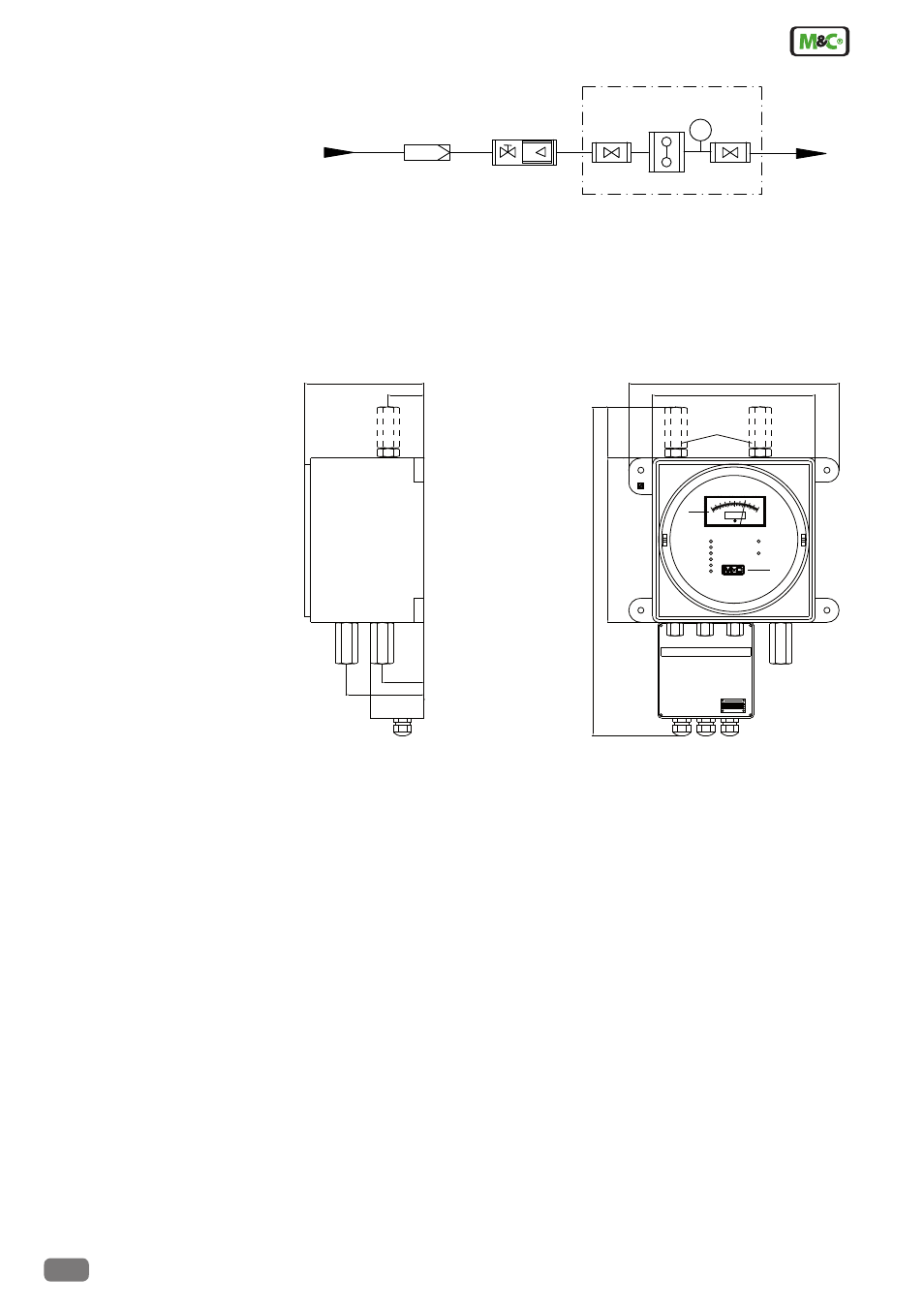

GasflowdiagramPMA50EEX
1 2
FLA
(P)
4 3 3 5
1. External fine filter
2. External flowmeter with needle valve
3. Ventilate arrestor
4. Oxygen measuring cell PMA
5. Flow alarm sensor
(and at version #:with
pressure sensor)
Dimensions
Dimensions in mm
Front view Side view
60
200
70
130
275
70
535
275
355
2
1
5 3 4
6
O -Analyser
PMA 50 Ex
2
20
0
0
5 10 20 15
40 60 80
25 30
100
20.9
1. Sample gas in/out with certified
ventilate arrestors
2. Cable glands 2x PG 13,5; 1x PG 16
3. Zero control
4. Measuring range select
5. Span control
6. Optional purging with certified venti-
late arrestors
