2.5.3 H
OW TO
C
REATE A
G
RAPHIC
S
UITE
This procedure explains how to create and customize a graphic suite. If you want
to include default graphic packs in your graphic suite without customizing them,
skip the step 7.

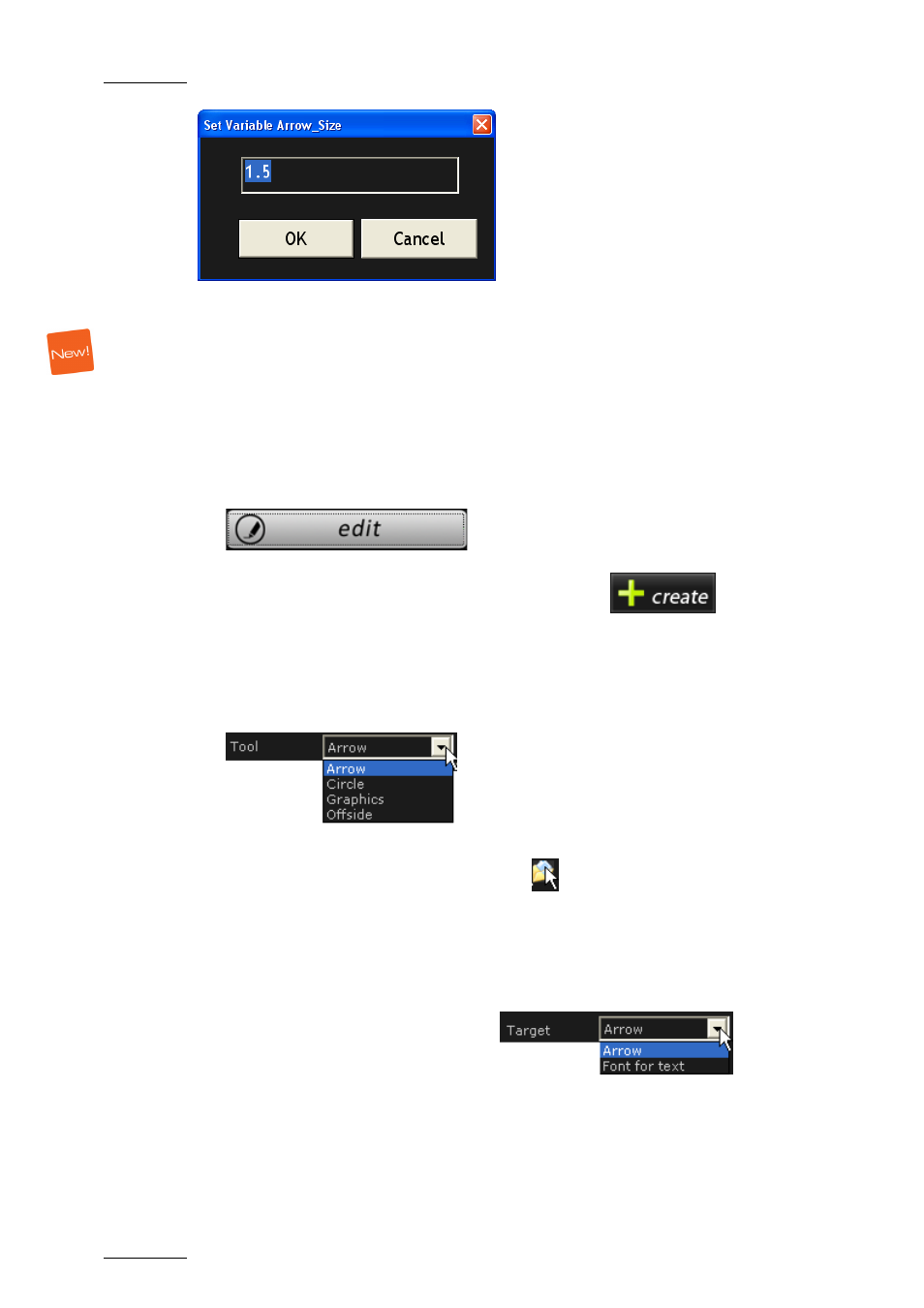

To create a graphic suite, proceed as follows:
1. In the TOOLS tab, Graphics area in Epsio, click the Edit radio button in the
Tools working mode area:
The Generic tab is displayed in the lower part of the Tools tab:
2. In the Graphic area in Epsio, Generic tab, click the button.
3. In the Save As window, type the name you want to give to your graphic suite in
the File Name field, and click Save.
This creates a graphic suite (.egs file) to which you will associate the graphic
packs.
4. In the Generic tab, click the arrow in the Tool drop-down field,
and select the tool which you want to assign a graphic pack to.
5. In the Generic tab, click the Folder icon next to the Pack drop-down field,
and select the default graphic pack (.egp file) on which you want to base your
customization.
More information on the various graphic packs is available as you click the
interrogation mark (?).
6. If you need to customize the loaded graphic pack, execute the following steps:
a. Click the Target drop-down field ,
and select the component of the graphic pack you want to customize.
The parameters associated to the loaded target are displayed below the
Target field, or in the table on the right.
b. Edit the requested parameters referring to the section ‘Target Area’, on
44
