Issue 1.60.C Epsio Version 1.60 – User’s Manual
EVS Broadcast Equipment - July 2010
14

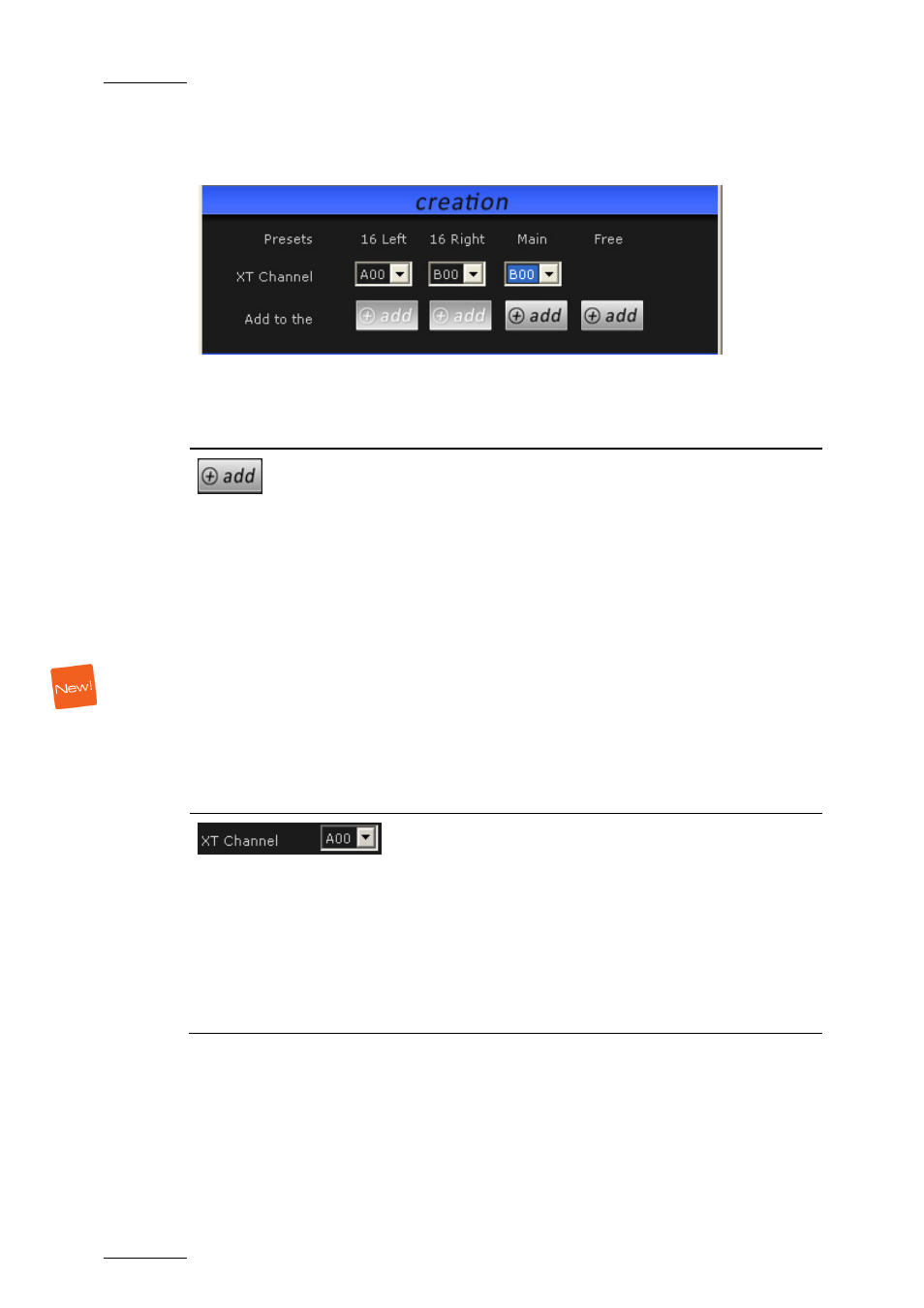

C
AMERA
C
REATION
A
REA
This area allows you to add cameras, and assign them to a recorder channel on an
EVS server.
Field Description
Buttons that allow the user to define a new camera in
the system. Several preset cameras are available:
• The Add button below the 16 Left label allows
adding a 16-meter left-angle camera.
It creates two cameras angles (goal and center).
• The Add button below the 16 Right label allows
adding a 16-meter right-angle camera.
It creates two cameras angles (goal and center).
• The Add button below the Main Label allows adding
a camera for the live tools.
It creates three camera angles (left, center, right).
• The Add button below the Free Preset label should
be used to create any other camera.
It creates one camera angle.
Field to associate the recorder channel of the EVS
server to the created camera. The field value is made
up as follows:
• The first letter is the camera letter on the server
• The last two digits correspond to the server net
number on the SDTI network.
By default, the A channel is assigned to the 16-meter
left camera, and the B channel is assigned to the to the
16-meter right camera.
