2.5 ADDING AND CUSTOMIZING THE
GRAPHIC SUITE
2.5.1 G
RAPHIC
S
UITE
D
EFINITION AND
C
OMPONENTS
The graphic suite includes the graphic packs for the various tools you can use in
Epsio (offside, arrow, circle, graphics).
The graphic pack contains the definition of the components of a given Epsio
graphic tool, in other words this is the graphic chart of the tool.
A series of template graphic packs is available for each graphic tool. When the
graphic pack is loaded, its various targets (components) can be customized to
your needs.

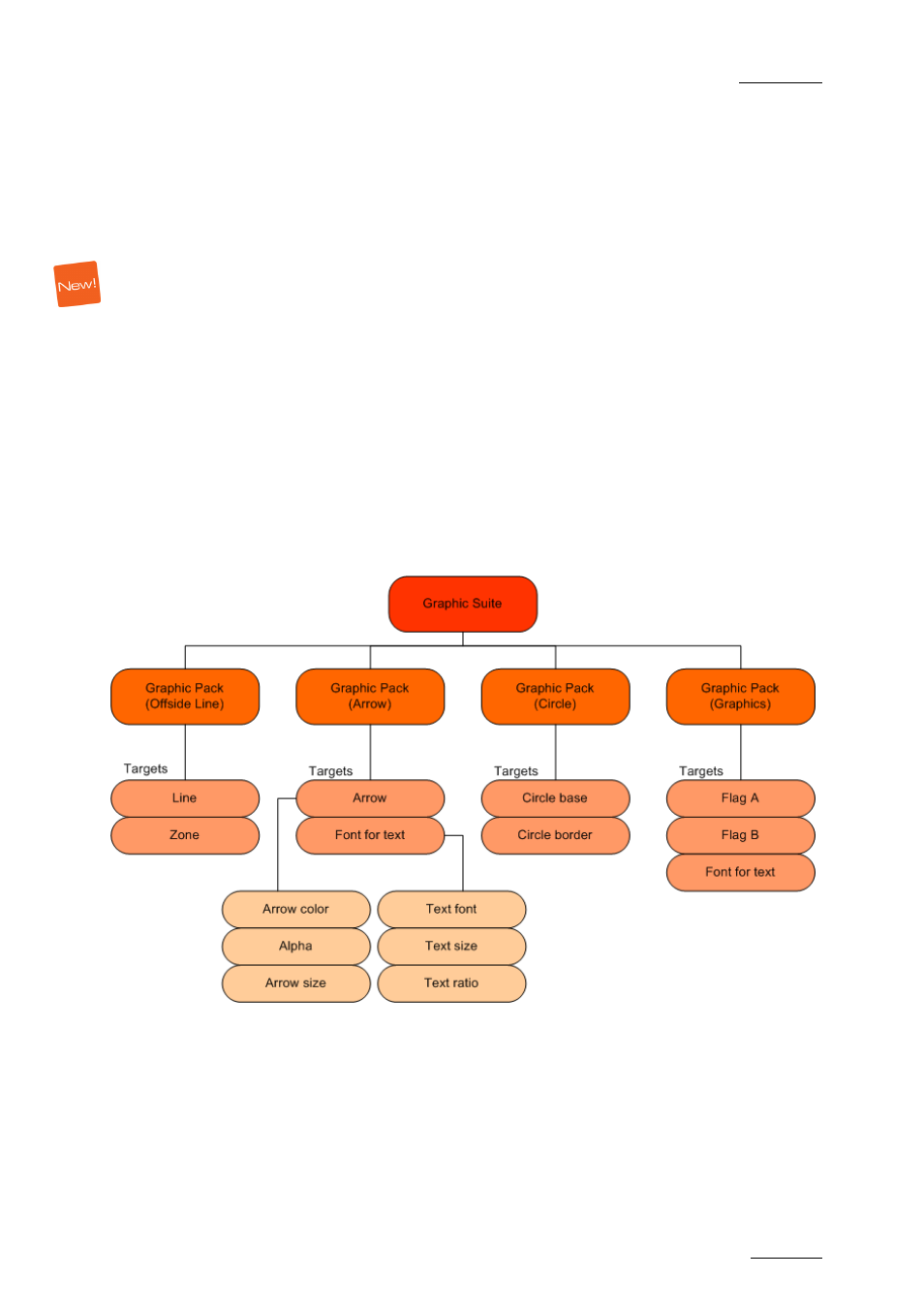

The following schema gives you an overview on the elements included in a graphic
suite, and how they are hierarchically organized. The customization is performed
at the level of the target parameters. The schema does not show all possible
targets and target parameters for the available tools.
To be able to perform an animation in Epsio, you need to define and load a
graphic suite. You will create, load and modify your graphic suite from the TOOLS
tab in Epsio. Once the graphic suite has been loaded in Epsio, the same suite is
automatically loaded each time Epsio is started.
