Epsio Version 1.60 – User’s Manual
EVS Broadcast Equipment – July 2010
Issue 1.60.C
A
CTIONS
A
REA
The following table describes the user interface elements in the Actions area:
Button Description
New Action Not applicable.
The fields in this area aim at creating the offside line
animations. As Epsio is used in combination with the
LSM Remote Panel, the offside line animations are
created on the Remote Panel.
G
RAPHICS
A
REA
You will define your graphic suite in the Graphics area. The Graphics area is a
tabbed zone that you can display or hide. Once you have defined and loaded your
graphic suite, it is recommended to close the Graphics area since you should not
need to modify the graphic suite in the course of the event.

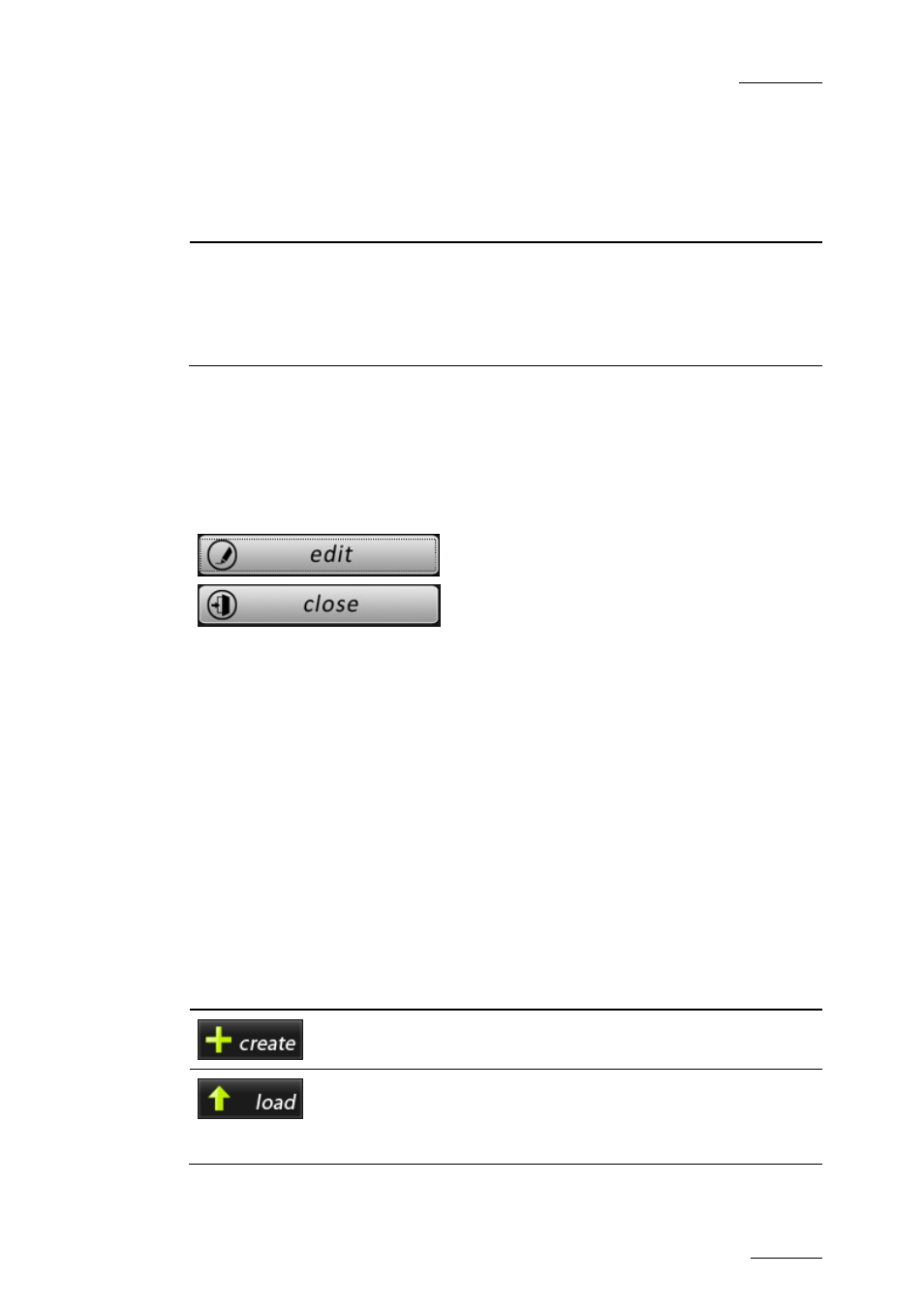

The Edit button shows the tabbed zone in the
Graphics area.
When this zone is open, the Edit button
becomes a Close button, used to hide the
tabbed zone.
G
ENERIC
T
AB
The Generic Tab is the sub-tab in the Tools tab where you define your graphic
suite. It contains several areas, named as follows:
• Suite Area
• Pack Area
• Target Area
S
UITE
A
REA
The Suite area contains the various commands you will use to manage your
graphic suite:
Field/Button Description
Button to create a new graphic suite (.egs file)
from scratch.
Button to select and load the graphic suite you
will use in Epsio. You always need to load a
graphic suite to be able to use the various
graphic tools in Epsio.
41
