Issue 1.60.C Epsio Version 1.60 – User’s Manual
EVS Broadcast Equipment - July 2010
2.2.3 A
CTIVATING THE
C
ONNECTION
B
ETWEEN
E
PSIO AND THE
EVS S
ERVER
To activate the offside line mode and the external offside line mode, proceed as
follows:
1. From the Main menu, select Setup by pressing SHIFT + D to enter the Setup
menu.
2. Press the F9 key to go to the Special Effects settings, and then F0 to open
page 9.2.
3. Press F2 to access the Offside Line setting and rotate the jog dial to set it to
‘ON’.
This will display the External Offside setting.
4. Press F3 to access the External Offside setting and rotate the job dial to set
it to ‘ON’. The EVS server will set this setting to ‘On’ if no telestration option
is installed on the server.
This will display the IP Address setting.
5. Enter the IP address of the Epsio workstation as follows:
After entering the number for an octet with the function keys, validate by
pressing ENTER on the LSM Remote Panel.
6. Press MENU twice to go out of the Setup menu.
7. Press SHIFT+D to enter the offside line mode.

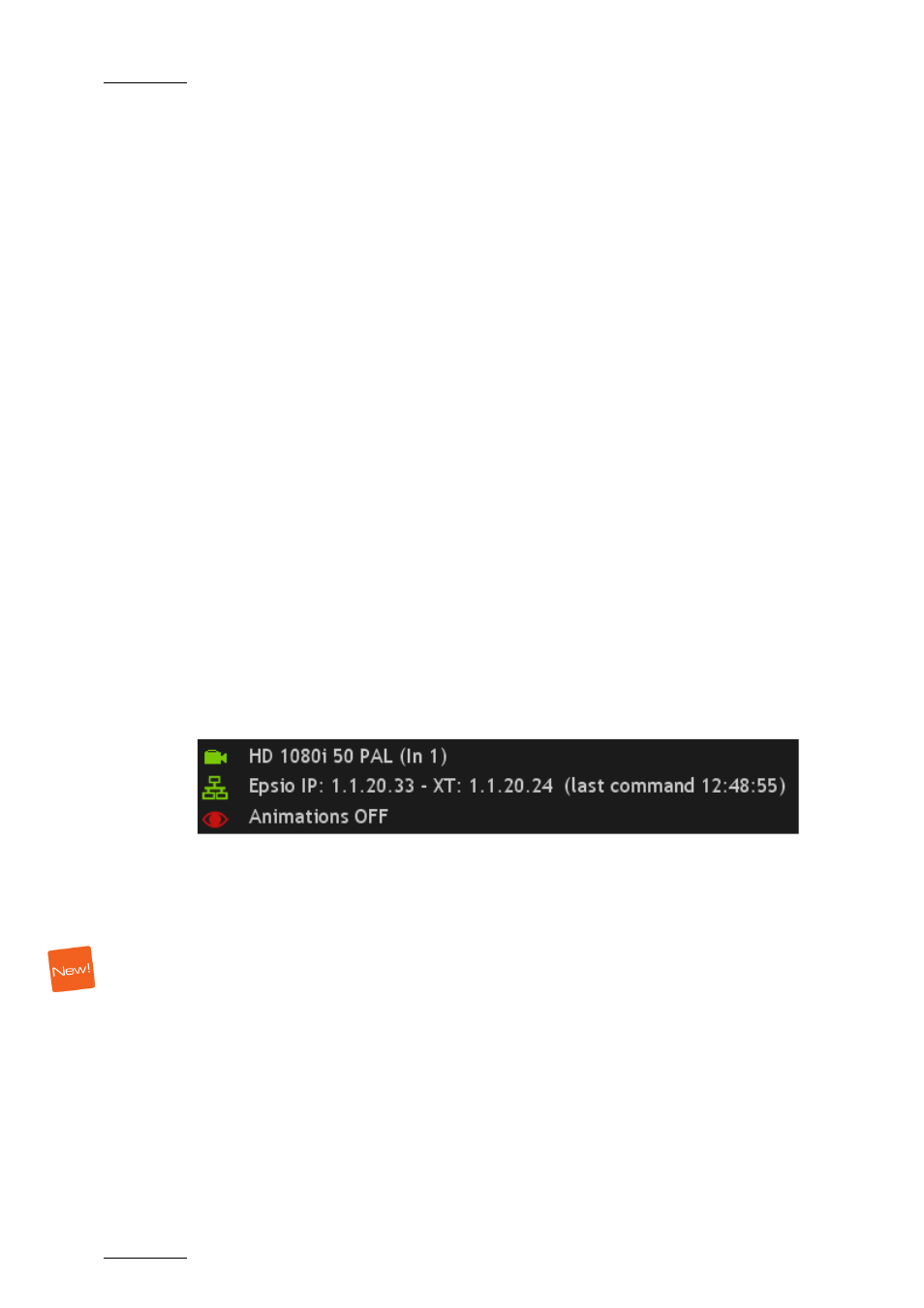

The Epsio workstation should now be connected. In Epsio, the first two lines in the
Server Information area should have green icons, which shows that both systems
are correctly connected and using the same standard:
For more information on this Server Information area, refer to the section 1.3.3
‘Server Information Area’, on page 5.
2.2.4 C
HECKING THE
V
IDEO
F
EEDS
Once you have switched on the Epsio workstation for an event, you should check
that you correctly get the feeds before you launch the Epsio software. The Epsio
Configurator helps you detect and check the feeds.
To check the video feeds, proceed as follows:
1. Double click EpsioConfigurator.exe available in C:/Program
Files/EVS Broadcast Equipment/Epsio/Bin or on the desktop.
The Epsio Configurator opens:
10
