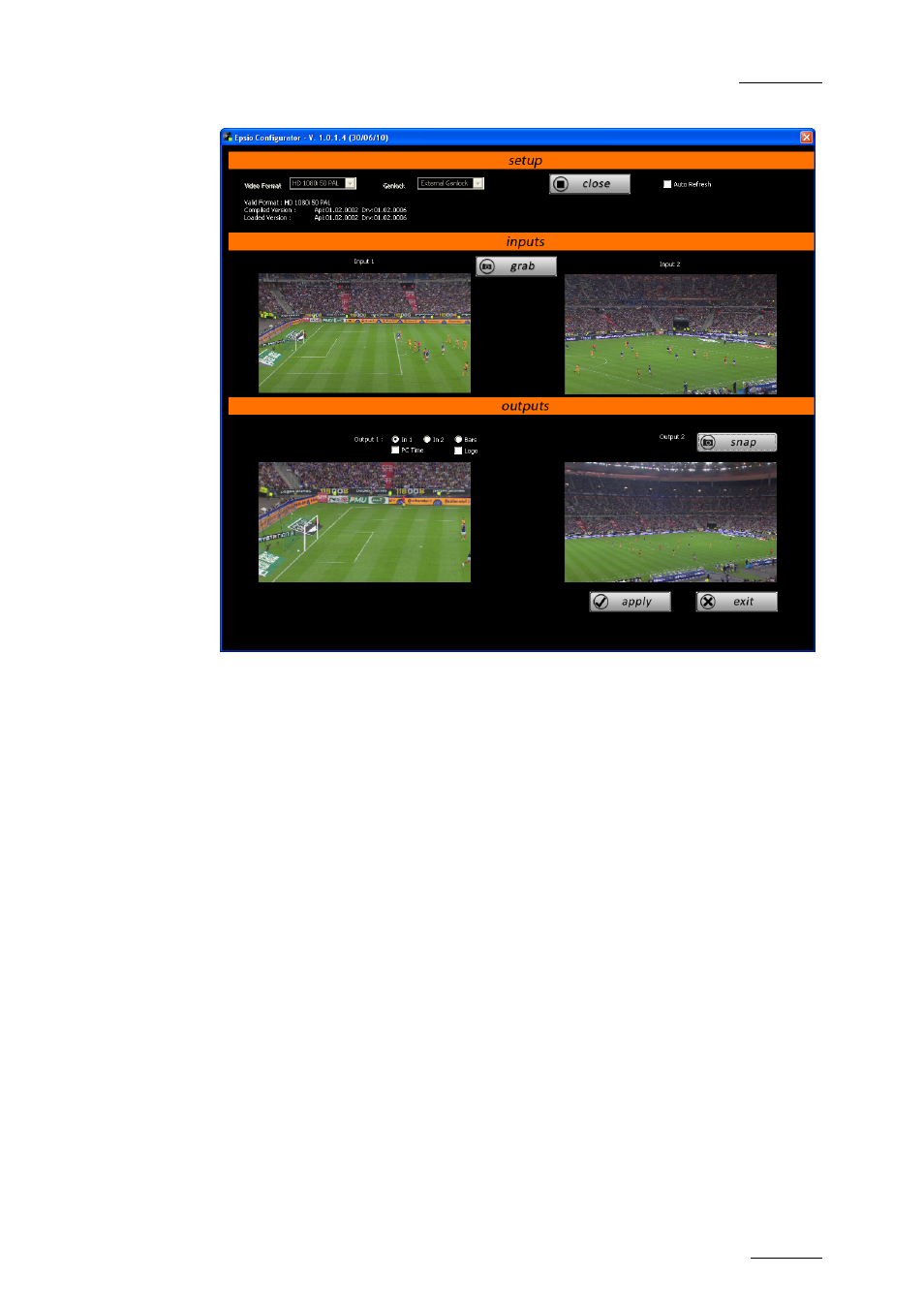

2. In the Setup group box, select the Video Format you are working with and the

type of Genlock system you are using.

3. Click the Open button.

Epsio checks the format you have specified is compatible with the format used
by the EVS server.
Epsio automatically grabs and displays an image of the video signals delivered
to the IN connectors and sent from the OUT connectors.

4. As you check the incoming and outgoing signals, you can perform the following

actions to help you identify the signals:

o To check the incoming signals, you can click the Grab button to grab the

current image delivered to the incoming feeds.

o To check the output signal from the OUT1 connector, you can either

change the signal sent to OUT1 by selecting In 1, In 2, or Bars, or add the
PC time or a logo display to the output signal.

o To check the current output signal from the OUT 2 connector, you can click

the Snap button to refresh the video display corresponding to output 2.

5. When you have checked the incoming and outgoing video signals, click the

Apply button.

6. Click Exit.
