Epsio Version 1.60 – User’s Manual
EVS Broadcast Equipment – July 2010
Issue 1.60.C
Note
When the offside line mode is activated on the LSM Remote Panel, you
cannot use the mouse outside the operating monitor in Epsio.
To be able to move the mouse in the whole Epsio window, do one of the
following:
• In Epsio, press on the keyboard.
• Press RECORD on the LSM Remote Panel to go out of the offside line
mode.
1.3.2 O
PERATING
M
ONITOR
The operating monitor shows the video signal coming from the EVS server and
received on the Epsio connector IN1. It allows the users to visualize the
configuration action they perform, or the animations they create.
The image on the monitor is surrounded by a colored frame, which varies
depending on the tab open in the tabbed area on the right of the Epsio main
window:
• Blue frame when the Calibration tab is open
• Red frame when the Tools tab is open
• Green frame when the Chroma tab is open
1.3.3 S
ERVER
I
NFORMATION
A
REA

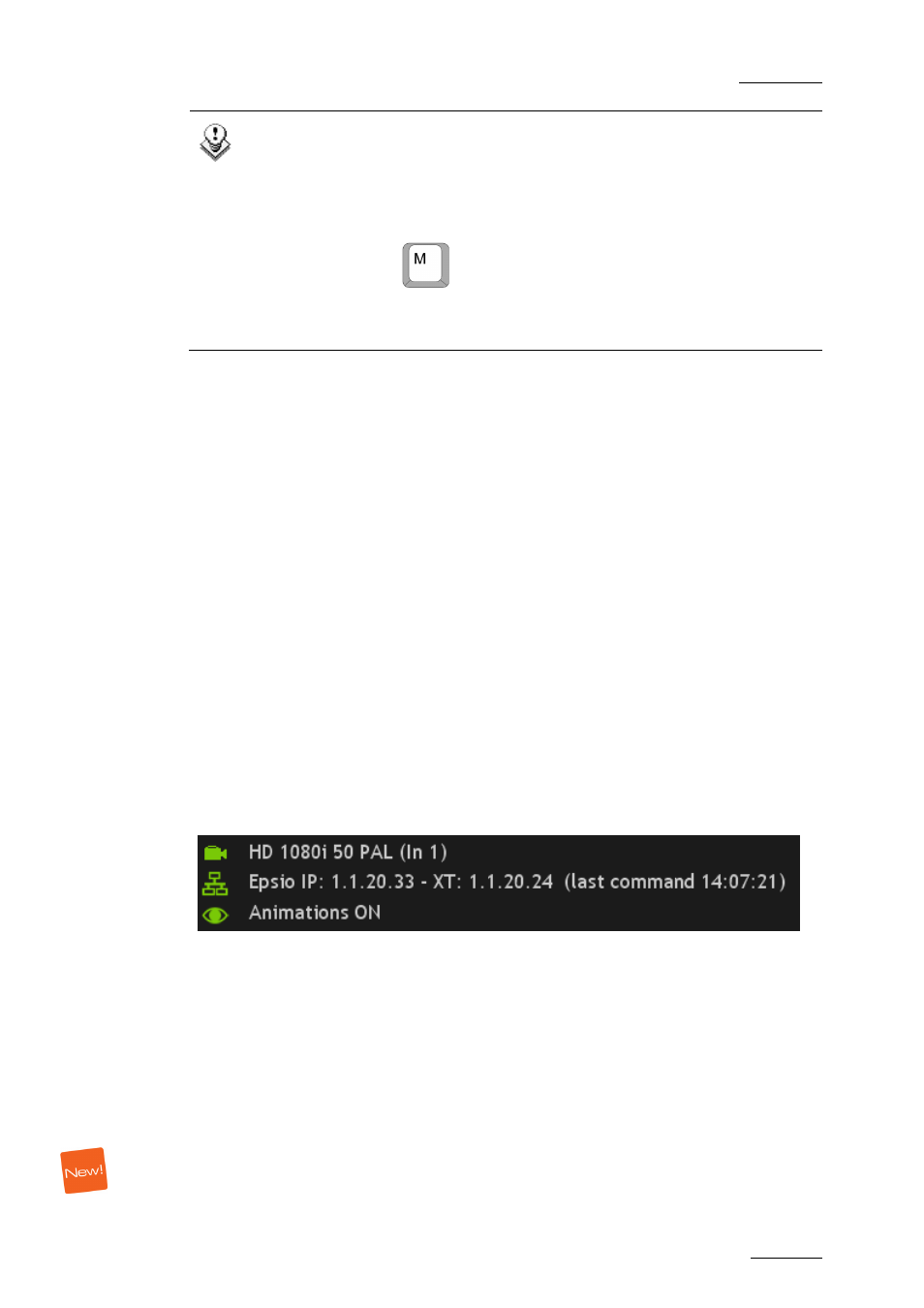

The Server Information area is located at the left bottom of the Epsio main window
and provides the following information:
The 1 s t line specifies:
• The video standard used by Epsio and the EVS server
• The Epsio IN connector that receives the video signal from the EVS server.
The 2 n d line specifies:
• The Epsio and EVS server IP addresses
• The time when the last command was executed on the server.
When both systems are correctly connected, the icons in front of the first two lines
are greens.
The 3 r d line informs the user whether the animation is visible or not.
5
