2 n d test

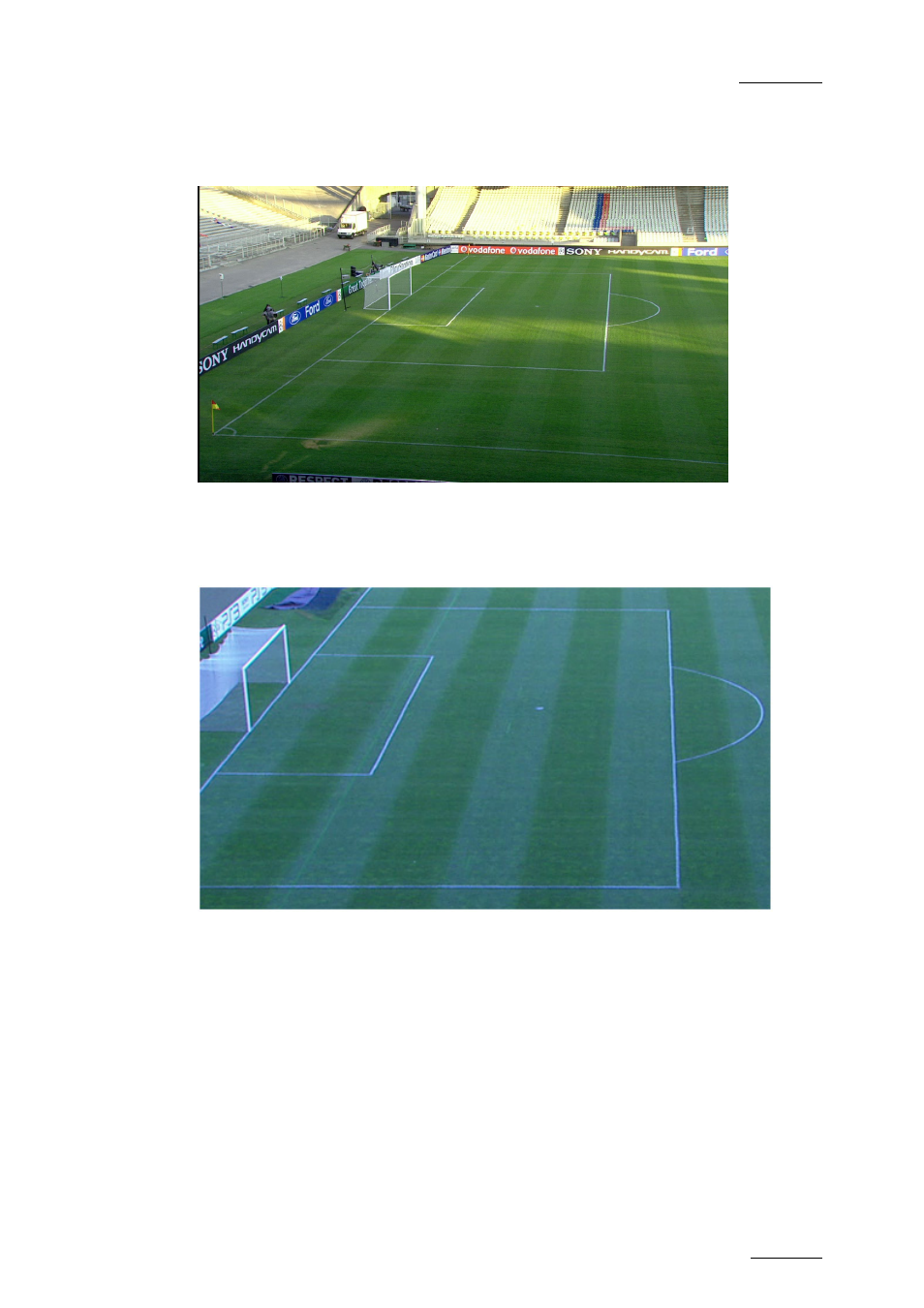

Move the camera to the bottom corner arch without changing the zoom.
Check that the 16-meter line and 6-meter line are correctly matched.
3 r d test
Move the camera back to the goal area, keeping the 6-meter and 16-meter lines.
All lines must match.
If the tests are not satisfactory, refine the calibration by matching several
calibration points again. Each time you modify your calibration, you need to
perform the tests again.
When you do not achieve perfect results using calibration points, you can modify
the advanced settings for the camera position in the Current area to fine-tune your
calibration. These parameters allow a global modification of the calibration for
each camera, taking into account the X, Y, Z position, as well as the orientation
with the pan, tilt and roll angles. See also the description of the Advanced group
box in the section ‘Current Camera Area’, on page 15.
