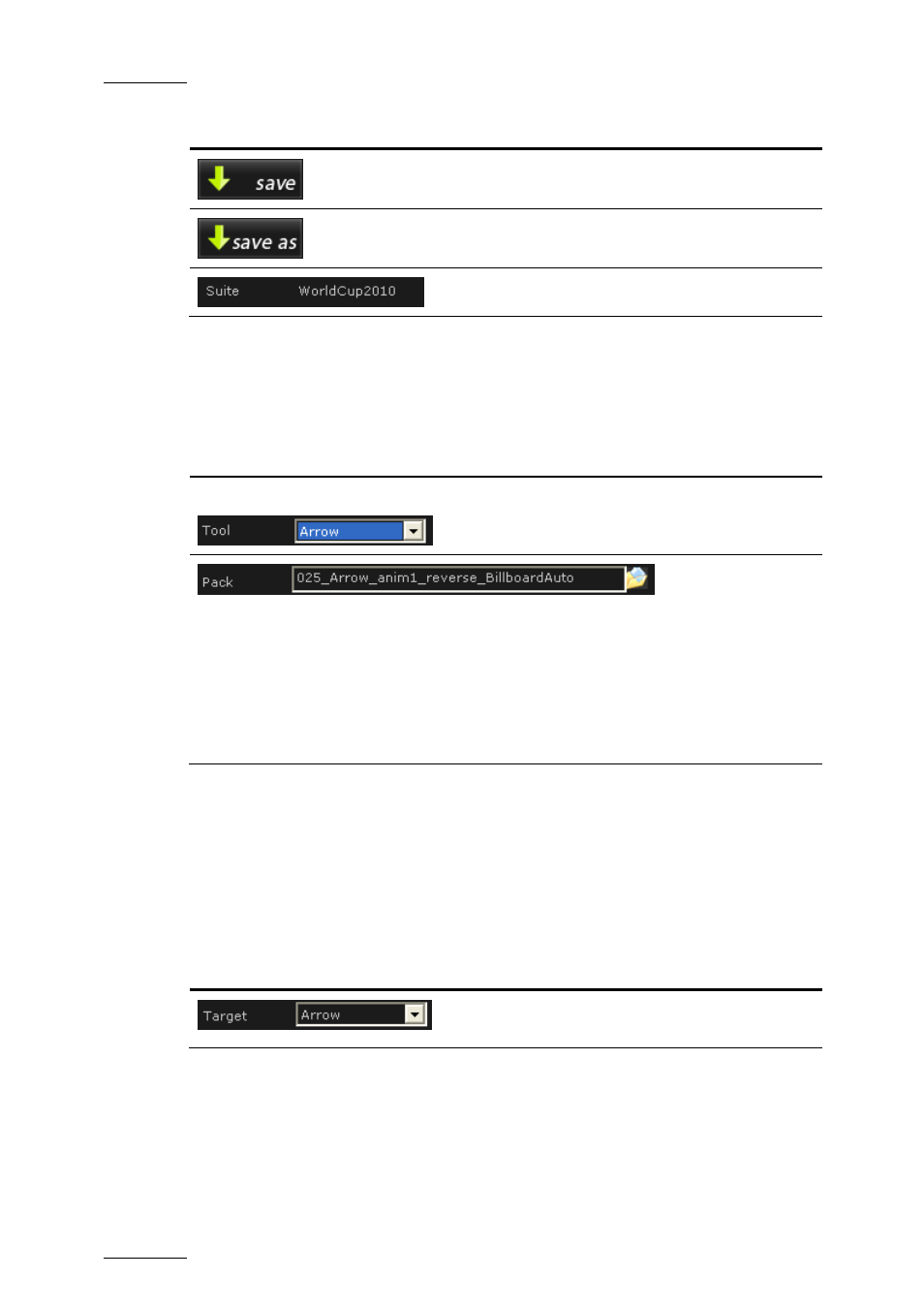

Field/Button Description
Button to save the currently open graphic suite.
Button to save the currently open graphic suite
under a new name.
Name of the loaded suite
P
ACK
A
REA
The Pack area allows you to select the tool and the graphic pack that you want to
edit.
Field/Button Description
Drop-down field to select the graphic tool for
which you want to define a graphic pack.
Click the Folder icon next to the Pack field to
select the graphic pack you want to work with
and assign to the above-mentioned tool.
If you click on the interrogation mark (?) next
to the Folder icon, you will have access to
additional information on the available graphic
packs.
T
ARGET
A
REA
Once you have selected the tool you want to edit, and the basic graphic pack you
want to use with this tool, you can refine the definition of the various components
included in the graphic pack in the Target area.
The components of a graphic pack are called ‘targets’. The parameters you can
customize will depend on the type of target you are editing:
Field/Button Description
Drop-down field to select the target you want to
edit in the selected graphic pack.
