IPDirector Version 5.8 – User Manual – Part 3: Browsing
EVS Broadcast Equipment – July 2010
Issue 5.8.B
13
Tree Branch Description

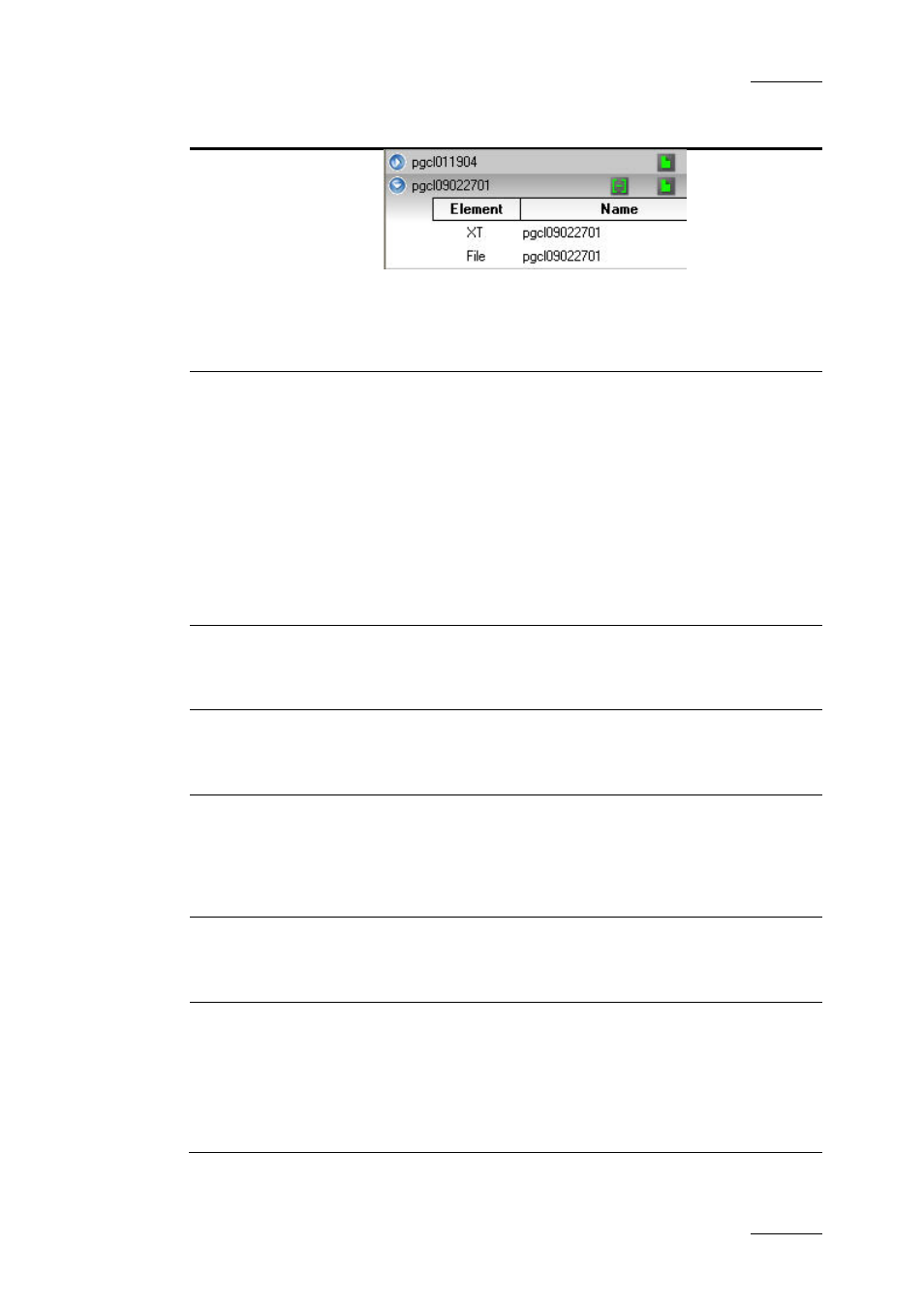

It also lists the record trains from the servers present on
the XNet.
Refer to section 4 ‘Clips View’ on page 27 for more
information on the Clips branch of the tree.
Clip Elements
(not visible for most
users)
Displays the list of clip elements. Each element is
displayed on a separate line within the grid.
It also provide separate nodes for XT hi-res clip, XT lo-
res clip, on-line hi-res media files, on-line lo-res media
files, off-line hi-res media files, off-line lo-res media files,
each element listed on one line as well.
XT nodes also list the record trains from the
corresponding servers.
Refer to section 5 ‘Clip Elements View’ on page 57 for
more information on the Clip Elements branch of the
tree.
Playlists Displays separate nodes for on-line and off-line playlists.
Refer to section 6 ‘Playlists View’ on page 63 for more
information on the Playlists branch of the tree.
Timelines Displays separate nodes for hi-res and lo-res timelines.
Refer to section 7 ‘Timelines View’ on page 71 for more
information on the Timelines branch of the tree.
Bins Provides three buttons, Clips, Playlists and Timelines,
to display respectively the clips, playlists and timelines
which have been sent to the bin or a bin folder.
Refer to section 8 ‘Bins View’ on page 74 for more
information on the Bins branch of the tree.
Logs Displays the logs created.
Refer to section 9 ‘Logs View’ on page 84 for more
information on the Logs branch of the tree.
Media Files
(not visible for most
users)
Displays on-line hi-res media files, on-line lo-res media
files, off-line hi-res media files, off-line lo-res media files.
They are listed with full file name, file extension and full
path of their physical storage location.
Refer to section 10 ‘Media Files View’ on page 92 for
more information on the Media Files branch of the tree.
