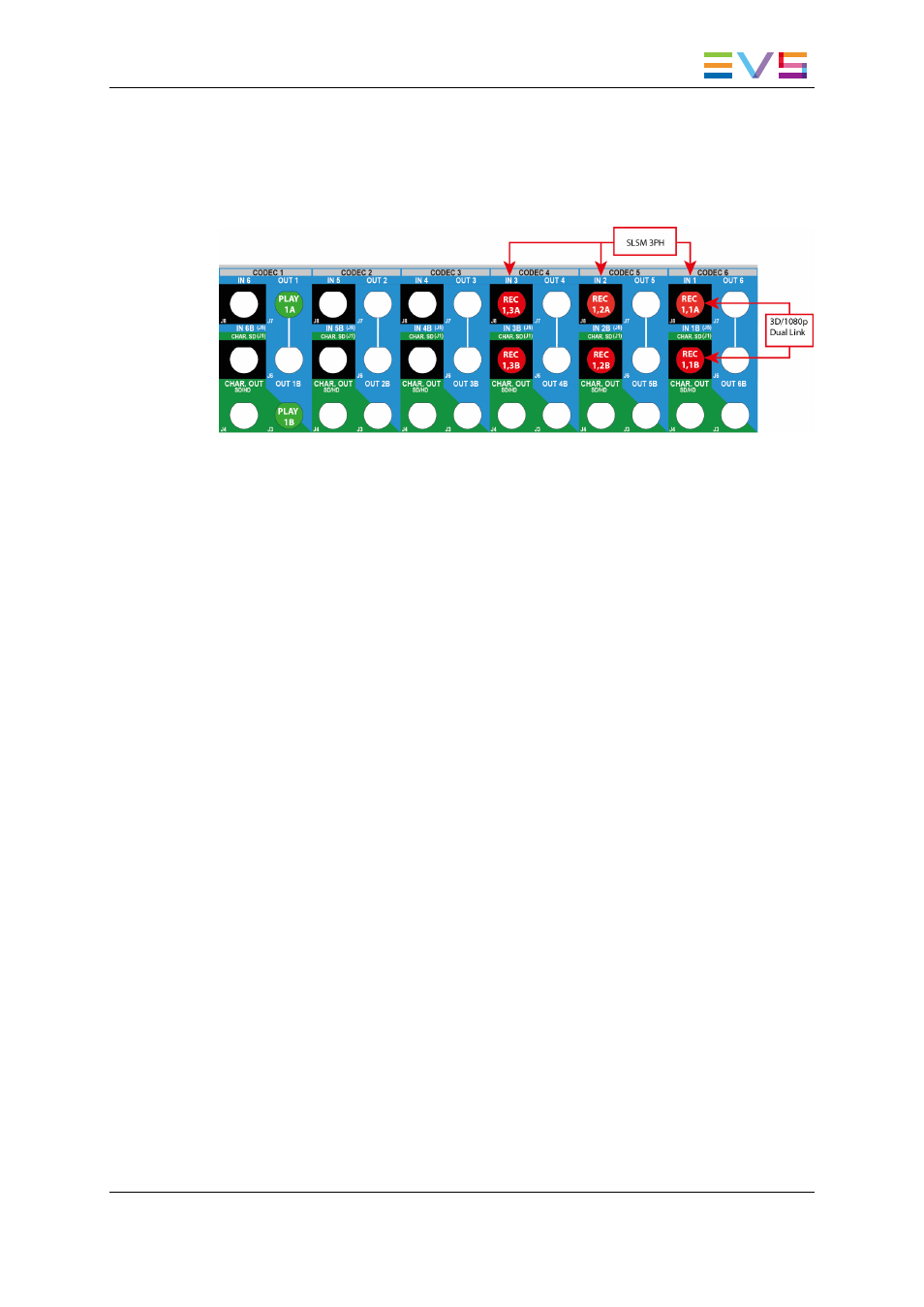

Example: 3D/1080p Dual Link 1SLSM 3x + 1PLAY

The BNC connectors to be used as record and play channels in a 3D or 1080p Dual Link
configuration 1SLSM 3PH + 1 PLAY need to be cabled as shown below:
