3.2.6. 3D/1080p Standard Configurations
Assignment Principles
The following rules on connector assignments on the rear panel apply to 3D or 1080p
configurations:
• For 3D or 1080p in Dual Link with V3X boards, the primary link of a codec module is
used for the first connector, and the secondary link for the same codec module is used
for the second connector.
• For 3D or 1080p in Dual Link with COHX boards, the primary link of a codec module is
used for the first connector, and the primary link for the next codec module is used for
the second connector.
• For 3D or 1080p in 3G (single link), the primary link of the codec module is used for the
single connector. However, both primary and secondary links of a codec module of
the V3X board are used. The 3D/1080p configurations in 3G are only supported on an
XT2+ server equipped with V3X boards.
Warning
Bear in mind that, even with a 3G interface (single link connected to the rear
panel), both primary and secondary links of a codec module of the V3X board are
used in 3D/1080p.
XT2+ 6U Servers
Available Configurations with V3X Boards
The tables below show the available 3D and 1080p configurations with standard cameras
on a XT2+ 6U server. They show the link assignment at the level of the codec module of a
V3X board:

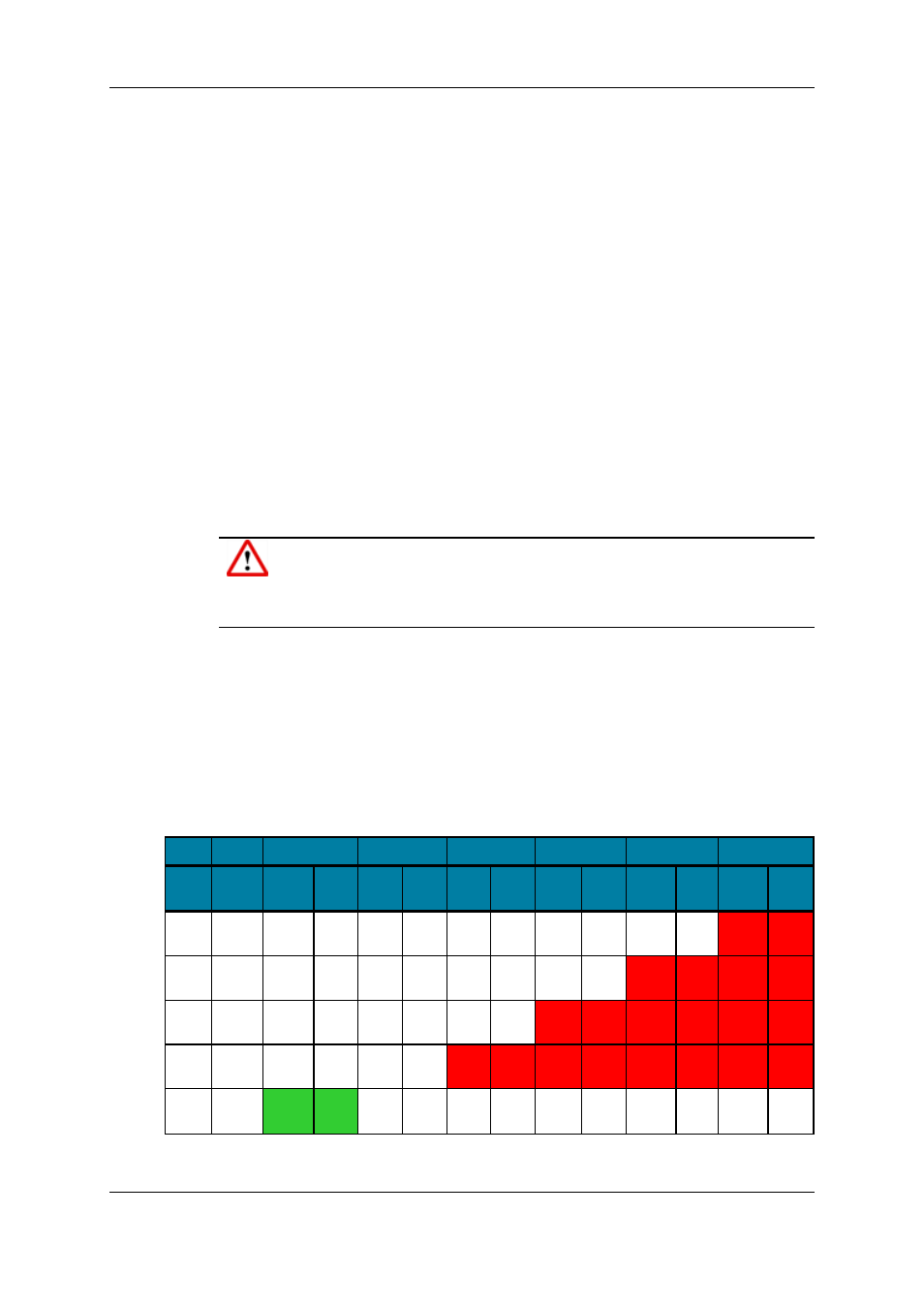

IN6/OUT1 IN5/OUT2 IN4/OUT3 IN3/OUT4 IN2/OUT5 IN1/OUT6
#REC #PLAY
Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link Prim.
Link Sec.
Link
1 0 REC
1A REC
1B
2 0 REC
2A REC
2B REC
1A REC
1B
3 0 REC
3A REC
3B REC
2A REC
2B REC
1A REC
1B
4 0 REC
4A REC
4B REC
3A REC
3B REC
2A REC
2B REC
1A REC
1B
0 1 PLAY
1A PLAY
1B
