190-00709-02 Rev. B Garmin G1000 Pilot’s Guide for the Socata TBM 850 395
HAZARD AVOIDANCE
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EAS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL
FEA
TURES
APPENDICES
INDEX
SYSTEM STATUS
The G1000 performs an automatic test of TIS during power-up. If TIS passes the test, TIS enters Standby
Mode (on the ground) or Operating Mode (in the air). If TIS fails the power up test, an annunciation is shown
in the center of the Traffic Map Page.
Traffic Map Page
Annunciation
Description
NO DATA Data is not being received from the transponder*
DATA FAILED
Data is being received from the transponder, but
a failure is detected in the data stream*
FAILED The transponder has failed*
UNAVAILABLE TIS is unavailable or out of range
* Contact a service center or Garmin dealer for corrective action
Table 6-16 TIS Failure Annunciations

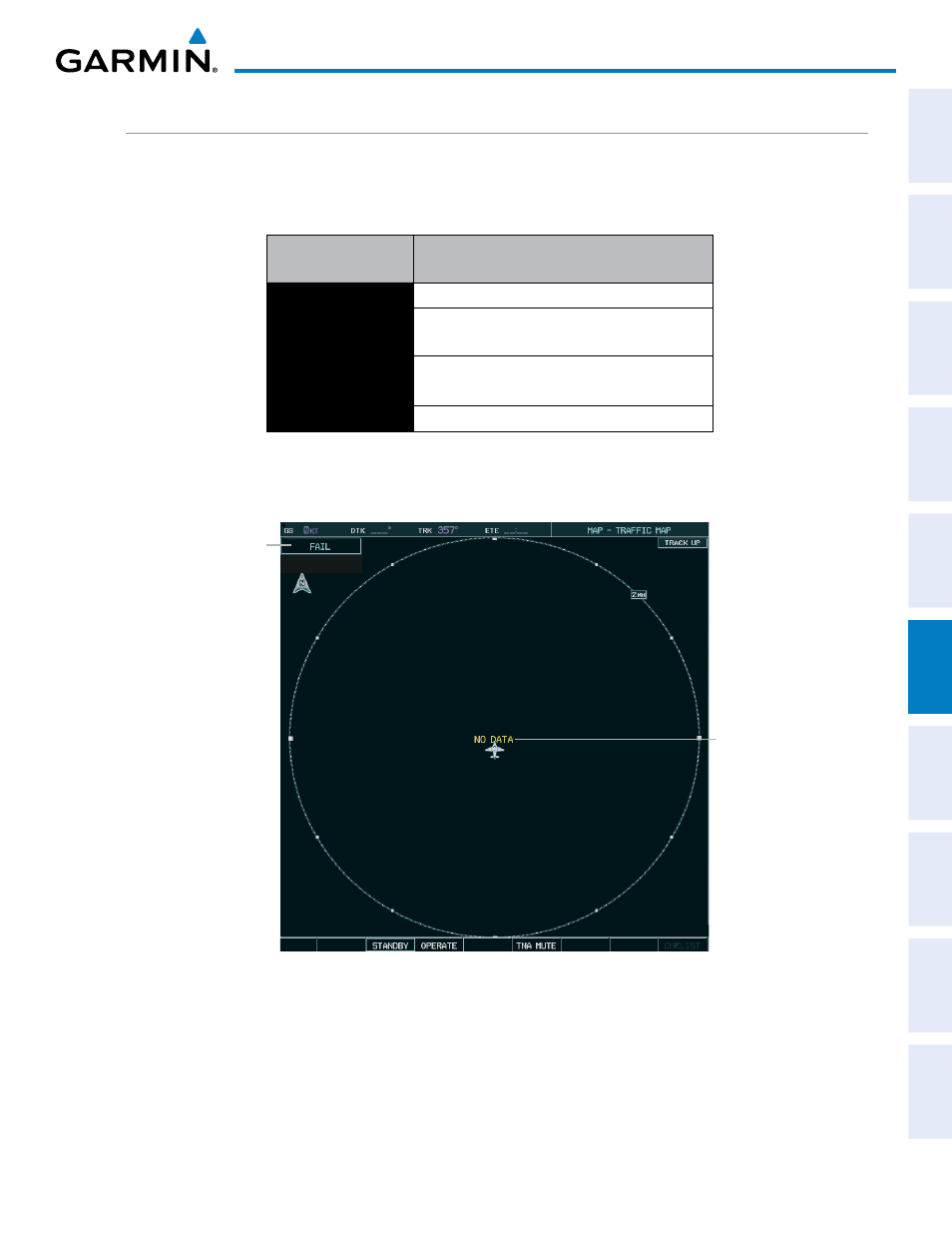

Figure 6-113 TIS Power-up Test Failure
Data Not Received
from Transponder
System Test has Failed
