d) Verify the displayed leg is the desired leg and press the ENT Key. Note in Figure 5-114, the magenta arrow in
the flight plan window and magenta line on the map indicating V4 is now the active flight plan leg.
No te the phase of flight remained in Terminal (TERM) mode up to this point because a departure leg was active.
Since a leg after the departure is now active, the current CDI flight phase is ENR (Enroute) and CDI scaling has
changed to 2.0 nm.

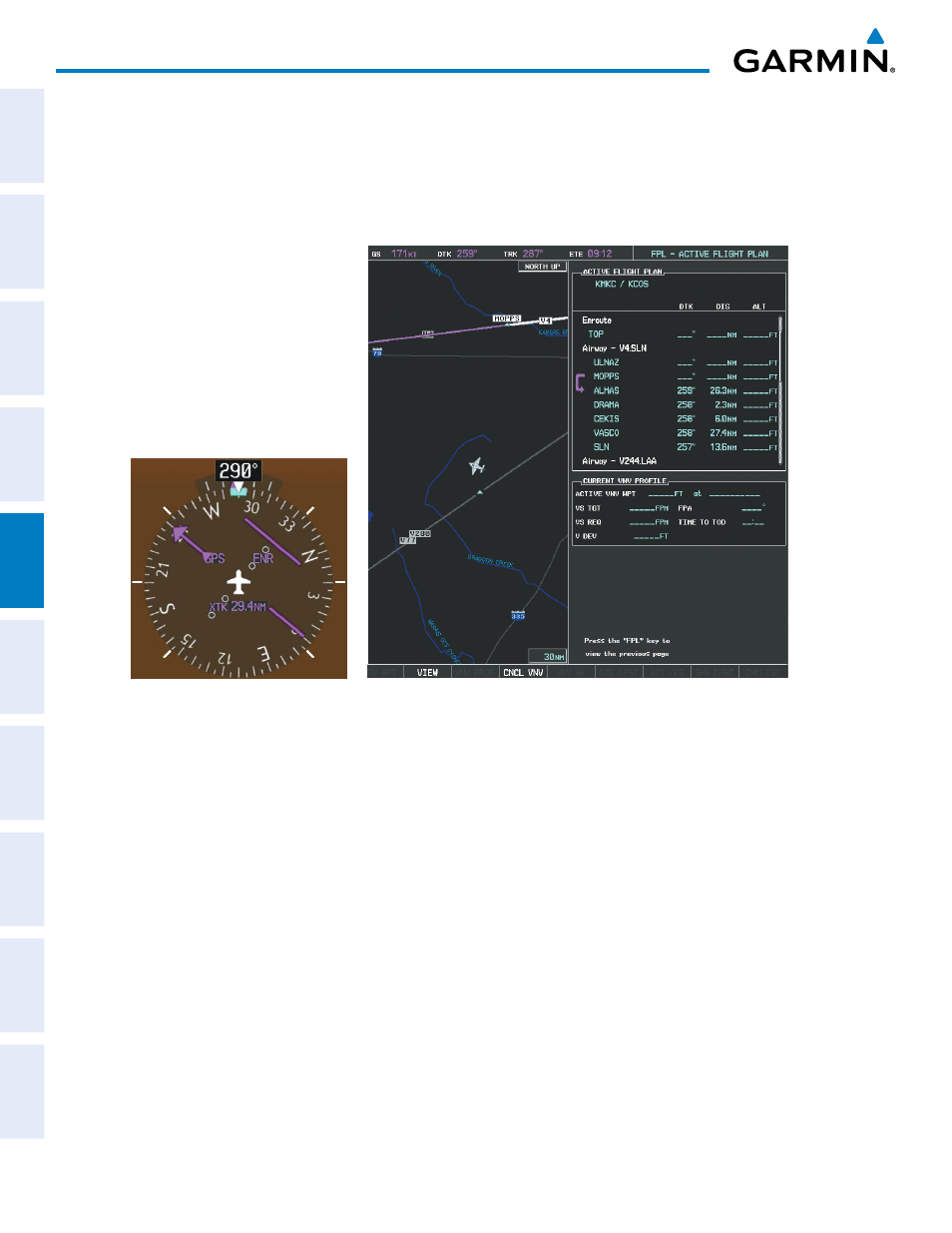

Figure 5-114 V4 Now Active Leg
6) The aircraft continues on heading 290º. When crosstrack distance is less than 2.0 nm, the XTK disappears from
the HSI and the CDI is positioned on the last dot indicating a 2.0 nm distance from the centerline of the next
course.
