Showing/hiding aviation information on the Terrain Proximity Page:
1) Press the MENU Key.
2) Select ‘Show Aviation Data’ or ‘Hide Aviation Data’ (choice dependent on current state) and press the ENT Key.

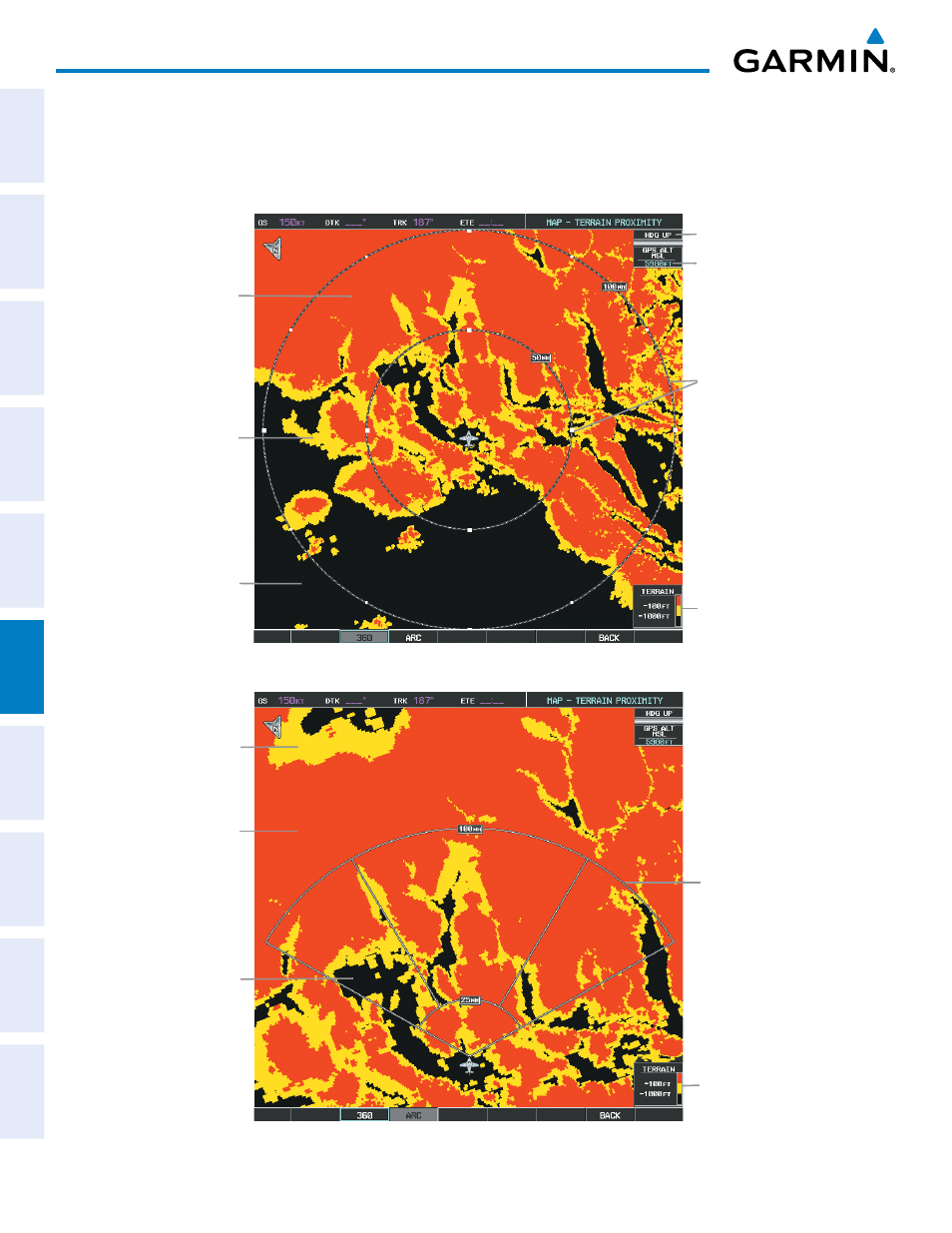

Figure 6-76 Terrain Proximity Page
Yellow Terrain
(Between 100’ and 1000’
Below the Aircraft Altitude)
Red Terrain
(Above or Within 100’
Below the Aircraft Altitude)
Black Terrain
(More than 1000’ Below
the Aircraft Altitude)
Terrain Legend
Map Range Rings
Map Orientation
Current Aircraft GPS-
derived MSL Altitude
Figure 6-77 Terrain Proximity Page (ARC View)
Yellow Terrain
(Between 100’ and 1000’
Below the Aircraft Altitude)
Red Terrain
(Above or Within 100’
Below the Aircraft Altitude)
Black Terrain
(Terrain More than 1000’
Below the Aircraft Altitude)
Map Range Arcs
Terrain Legend
