Diagnostic Menu
4
On-Board Systems
The On-Board Systems test allows the Scan Tool to control operation
of vehicle components, tests or systems.
✓
Some manufacturers do not allow tools to control vehicle systems. A
vehicle not supporting an on-board system is identified by a message
that is displayed when selected.
✓
Refer to the vehicle service manual for on-board systems instructions.

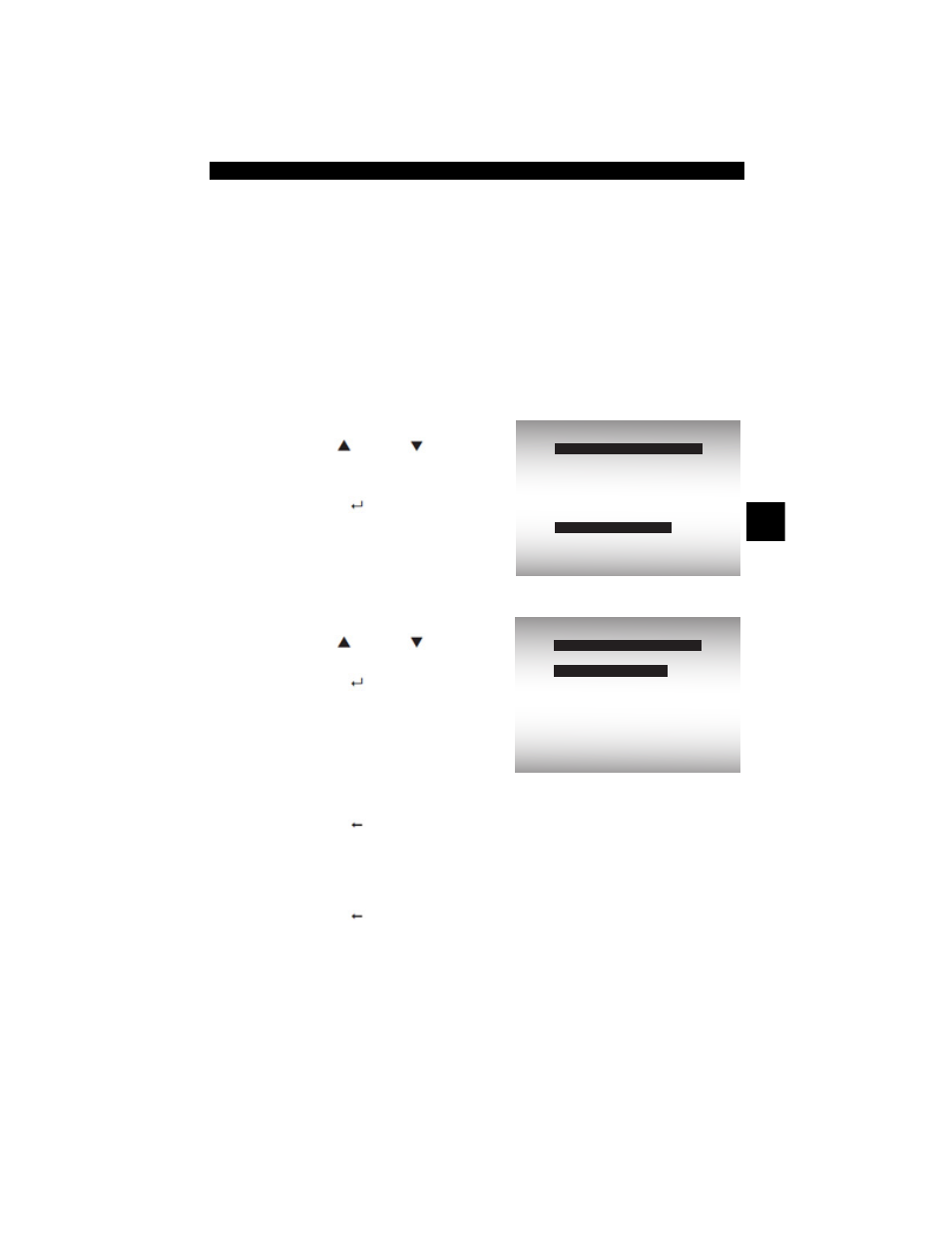

From the Diagnostic Menu:
1.
=====================
View Fre eze Data
Drive Cycle Monitor
O2 Monitor Tests
Diag Monitor Tests
On-Board Systems
Vehicle Information
Diagnostic Menu
On-Board Systems
Select On-Board Systems.
•Use
UP or DOWN
arrow key until On-Board
Systems is highlighted.
•Press ENTER.
✓
A list of on-board systems and
components available for testing are shown on the display.
2. Select Test.
=====================
EVAP System Test
On-Board Systems
EVAP System Test
•Use UP or DOWN
arrow key.
•Press ENTER.
3. Return to On-Board Systems menu.
•Press BACK key.
4. Return to Diagnostic Menu.
•Press BACK key.
✓
The manufacturer is responsible for determining the criteria to
automatically stop test. Refer to appropriate vehicle service manual.
