ACR1283L – Reference Manual [email protected]
Version 1.00 www.acs.com.hk
Page 49 of 55
Please follow the fonts tables (selected by INS Bit 4 - 5) below for the LCD character index.
Note: Size of the characters in Fonts Set A and Fonts Set B is 8x16, but size of the characters in
Fonts Set C is 8x8.

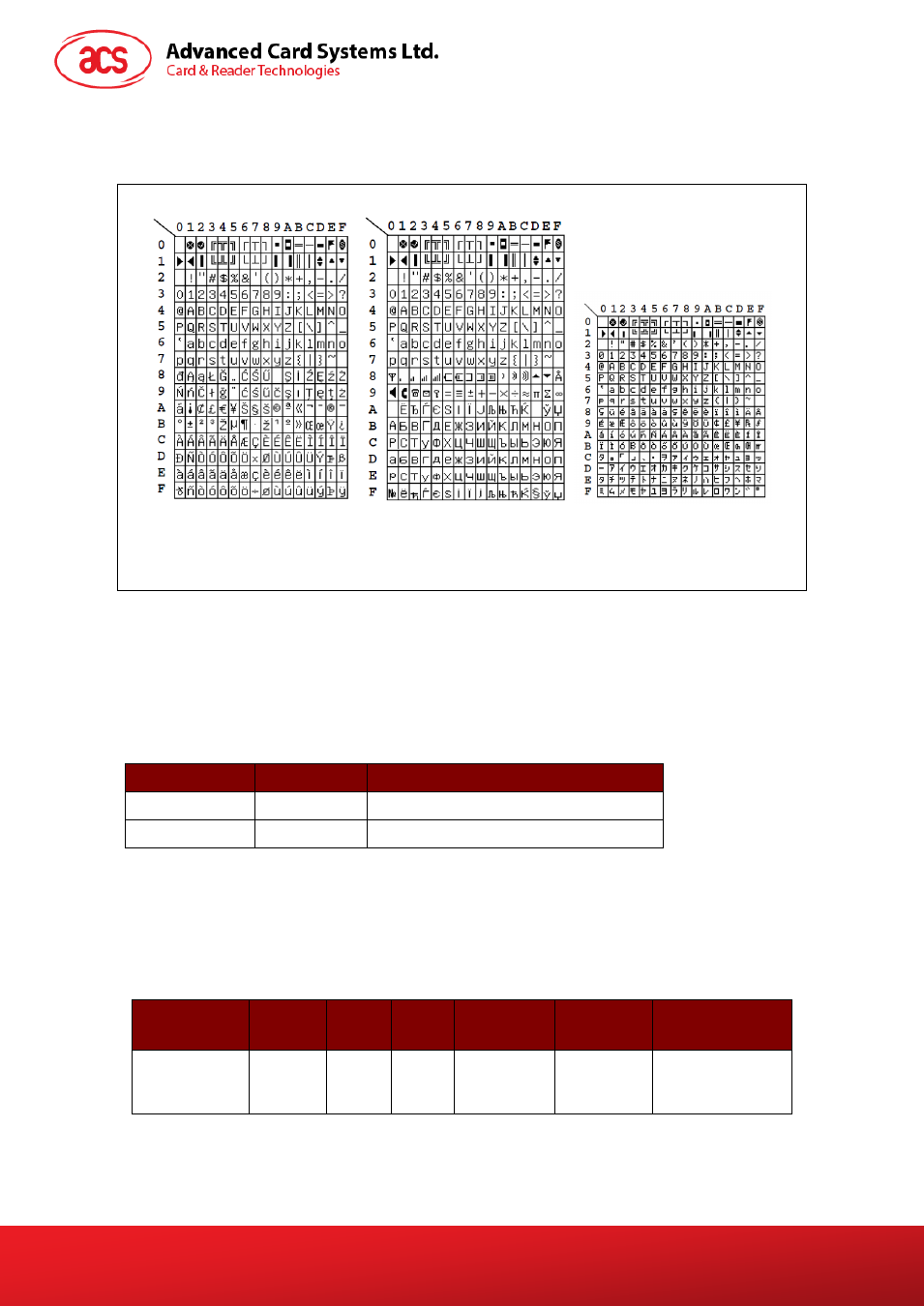

Figure 2: LCD Display Font Table
Where:
Data Out: SW1 SW2
Status Code
Results SW1 SW2 Meaning
Success 90 00h The operation is completed successfully.
Error 63 00h The operation is failed.
5.4.16.3. LCD Display (GB Mode)
This command is used to display LCD message in GB Mode.
LCD Display Command Format (5 Bytes + LCD Message Length)
Command Class INS P1 P2 Lc
Data In
(Max. 16 Bytes)
LCD Display 0xFFh
Option
Byte
0x69h
LCD XY
Position
LCD
Message
Length
LCD Message
Where:
INS: Option Byte (1 Byte)
Character Set A Character Set B Character Set C
