Replacing the Circuit Board Batteries

The ATR360 is equipped with (2) CR2032 3v Lithium Coin Cell batteries: one battery
is on the Main board and the other is on the Display board. The batteries should last
approximately 1.5 to 2 years under normal operating conditions. Do not attempt to
replace these batteries as it will void your warranty. If your clock is already out of
warranty you can attempt to replace the batteries yourself but note that you could
damage the boards if you short out any components on the circuit board. Avoid
using metal objects to remove the batteries.

Note: All Time Recorder settings will be reset to factory defaults as soon as the Main
board battery is removed.

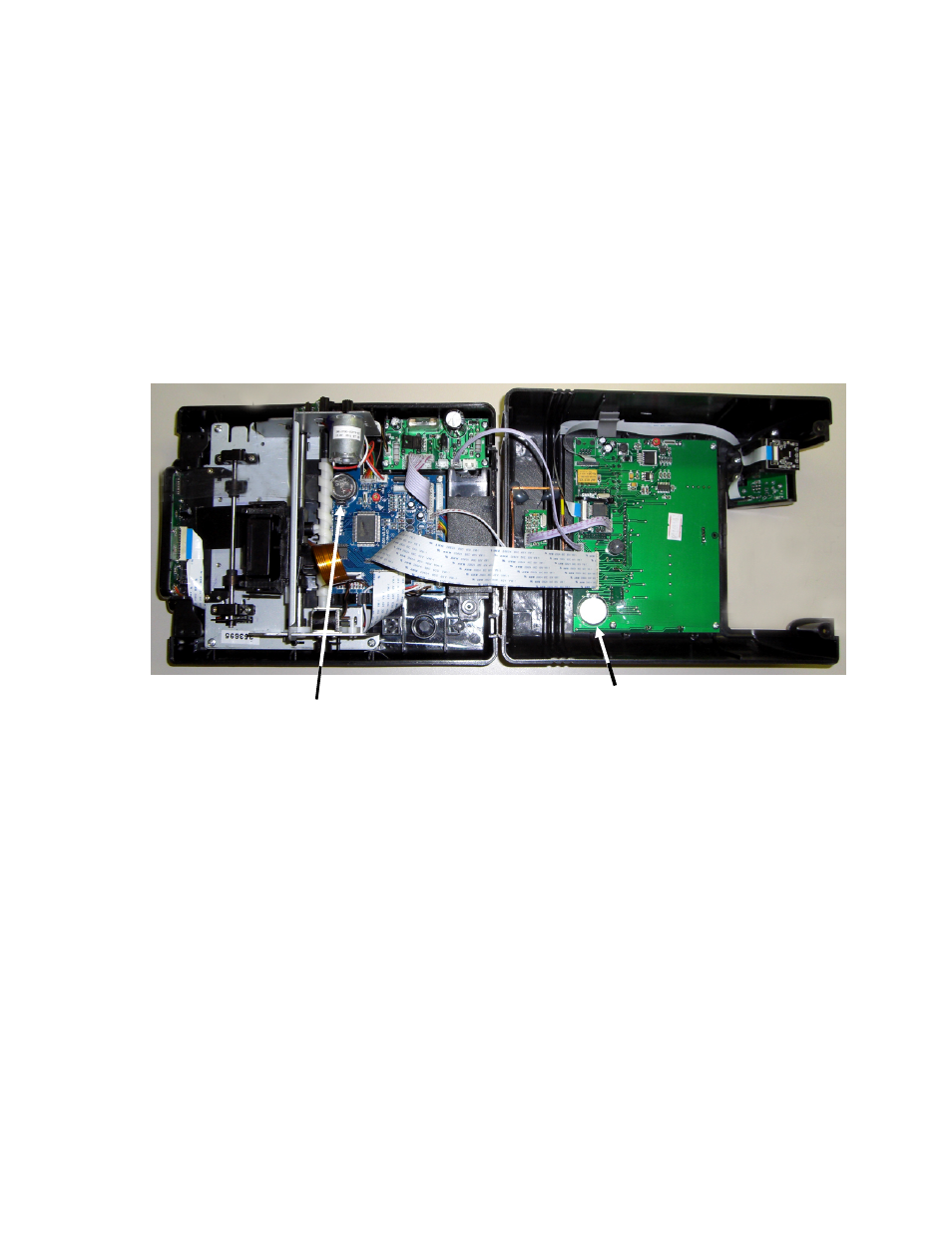

Back Case Front Case













Main Board Battery Display Board Battery


1. Unplug clock.
2. Remove the front cover and the two screws that connect the front and back case.

Remove the front case and lay it flat being careful not to pull any wires or cables
loose.

3. To remove batteries press the metal retaining clip away from the battery. The

battery should pop up. It may be necessary to use a small probe to pop the
battery out.

4. Replace the batteries and re-assemble clock.
