Maintenance

Replacing the Ribbon Cassette

1. Open clock cover. Press “P3” to move the print head to the center of the clock

so that the ribbon cassette can be more easily accessed.

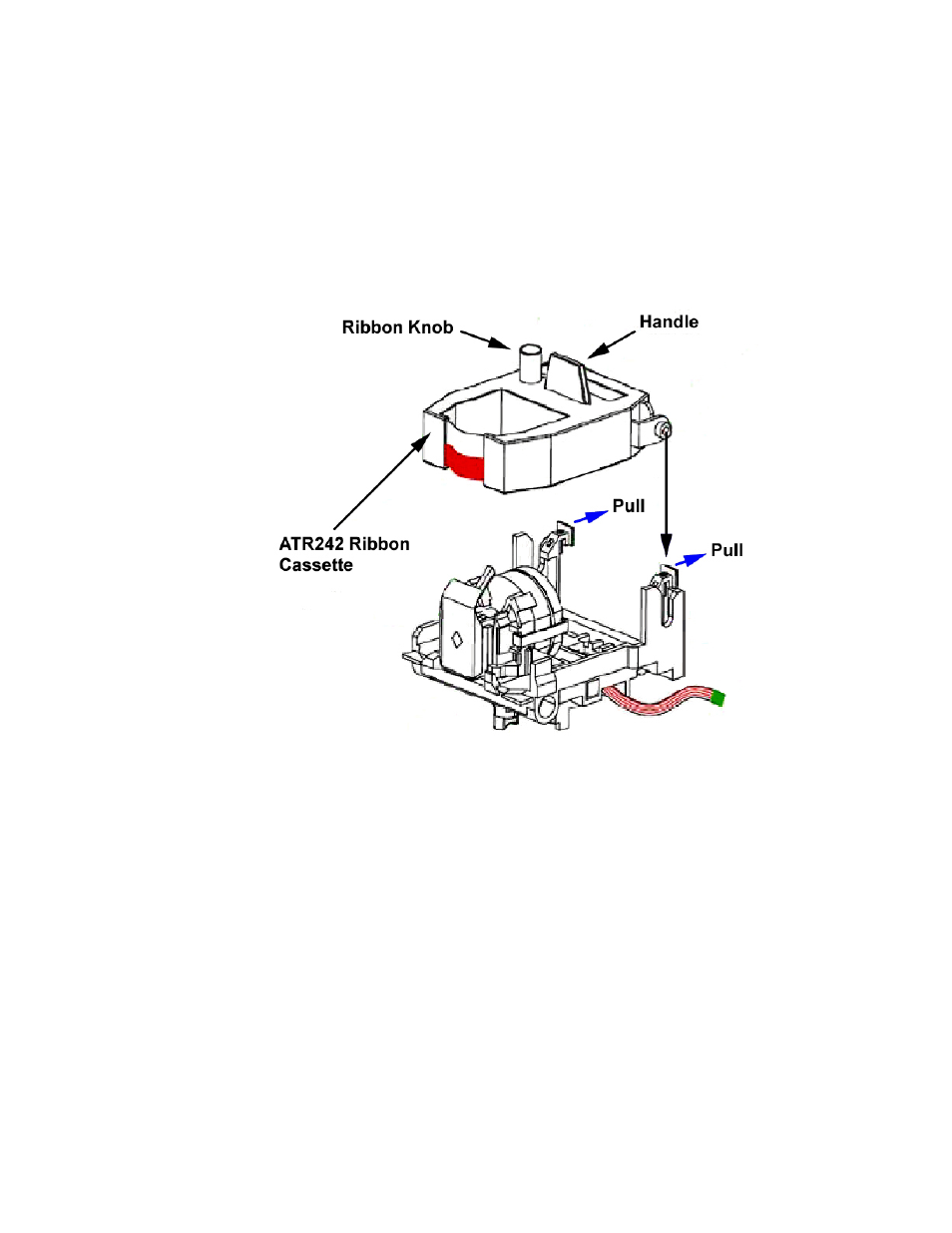

2. Pull the ribbon holder tabs towards you to unlock the ribbon cassette and use the

handle on top of the ribbon to pull the cassette out.

3. Insert replacement ribbon. Make sure to feed the ribbon over the black ribbon

guide and slide the ribbon down between the guide and the silver print shield.
Push the ribbon down until it clicks into place. Turn the ribbon winding knob
clockwise to remove any slack in the ribbon.
