SeeSnake® LT1000
10
A small alignment pin at each end of each platform
should fit into a matching hole to seat the platform side
fully.
11. Locate the left hand laptop platform, which is the
one without the keyboard. Align it to the four holes
(in the flanges of the side plates) and insert the four
screws and hand-tighten them.
12. Adjust the platforms and side plates so the plat-
forms are aligned and level. Fully tighten down the
screws on the brackets and the mounting screws
for the laptop platforms.
13. Replace the right-hand cord-wrap and fasten it into
place with two screws. Note that the USB cable is
captured under the cord-wrap post as it exits the
LT1000.
Installing the Stabilizers
Stabilizers are supplied with the LT1000 which provide
greater reel stability when they are rotated out. Each
stabilizer has a spring-loaded plate inside it which
holds the stabilizer in place when installed.
Pin
Hole

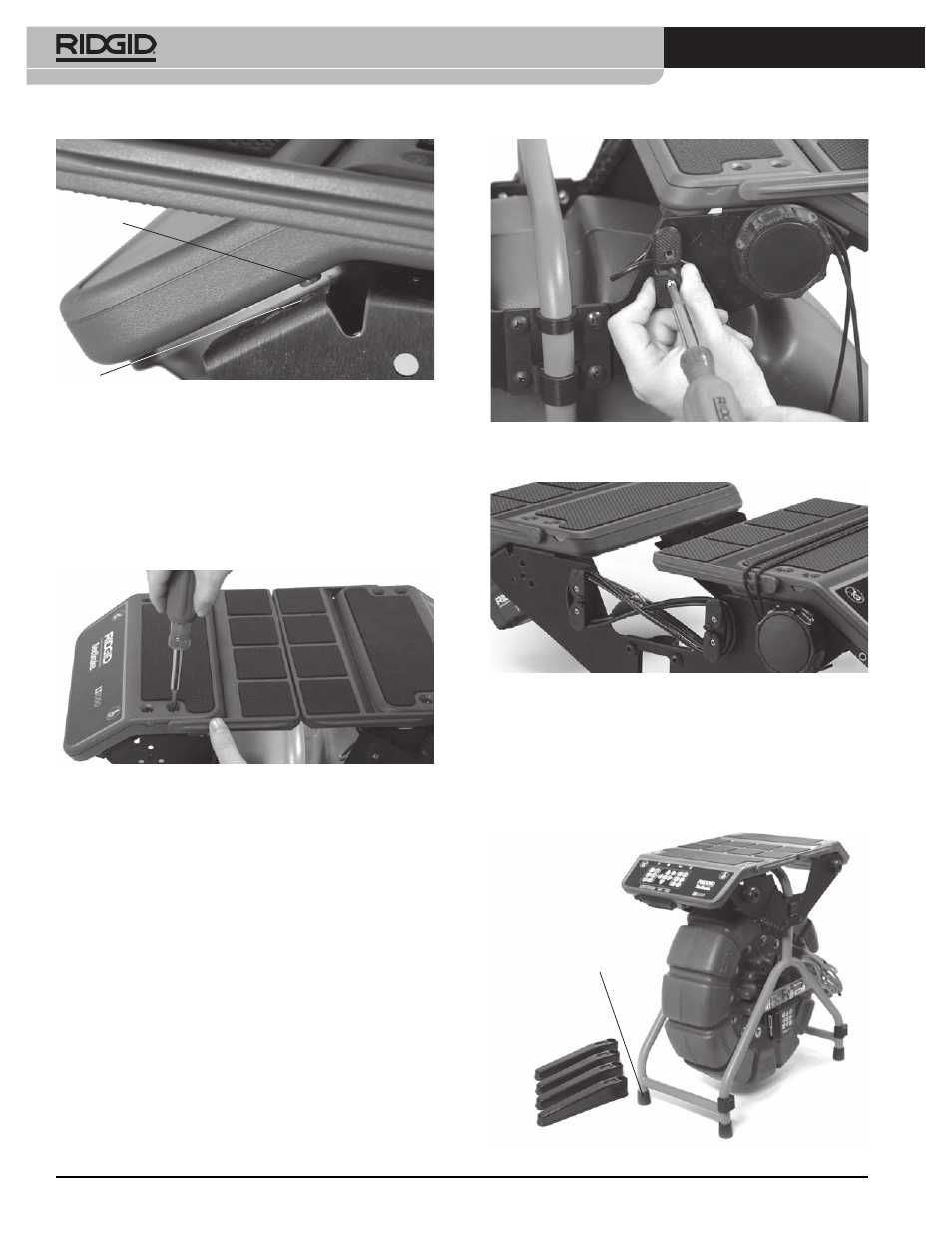

Figure 14 – Alignment Pin and Hole
Figure 15 – Mounting the Left-Hand Platform
Figure 16 – Mounting the Cord-Wrap (Note USB Cable
captured under Cord-Wrap)
Figure 17 – Cord-wrap and USB Cable
Rubber Foot
Figure 18 – Stabilizers with Mini Reel
