SeeSnake® LT1000
8
4. With one side loosely bolted into position, align the
opposite side and start the four machine screws on
the opposite side. The screw-heads should be on
the outer face of the LT1000 and the nuts on the
inner face.
5. Align the LT1000 so it is straight and level and hand-
tighten down the four machine screws on each
side. With the folding wings closed there should be
about a 1” / 2,5 cm gap between the reel and the
wings. Tighten all four machine screws down on
each side with a Phillips head driver.
6. Rotate the capstan handle clockwise to loosen the
laptop retaining cord and unhook the retaining
cord from the cord hooks on the opposite side.
7. Fold the two platform wings in to the center posi-
tion.
Mounting the LT1000 to the SeeSnake
Standard Reel
Mounting the LT1000 on a Standard SeeSnake reel re-
quires removing the two laptop platform surfaces and
the right-hand USB cord wrap from the LT1000 frame.
1. With a Phillips screwdriver, remove two screws from
the USB cable wrap on the right side (the one which
holds down the USB cable where it enters the LT1000).
Unwind the USB cable from the cord wraps.
2. Remove the four screws from each platform half.
3. Lift off the two platform halves and set them to one
side close to the SeeSnake frame. Save all screws
carefully.
4. The two side plates will then be free from the plat-
form halves and may be individually installed.
5. Move the front side plate under the upper handle
of the SeeSnake Standard. Be careful not to scrape
against the frame.
6. Place the mounting bracket over the outer bumper
on the side of the SeeSnake and align the side plate
to match the holes in the mounting bracket.

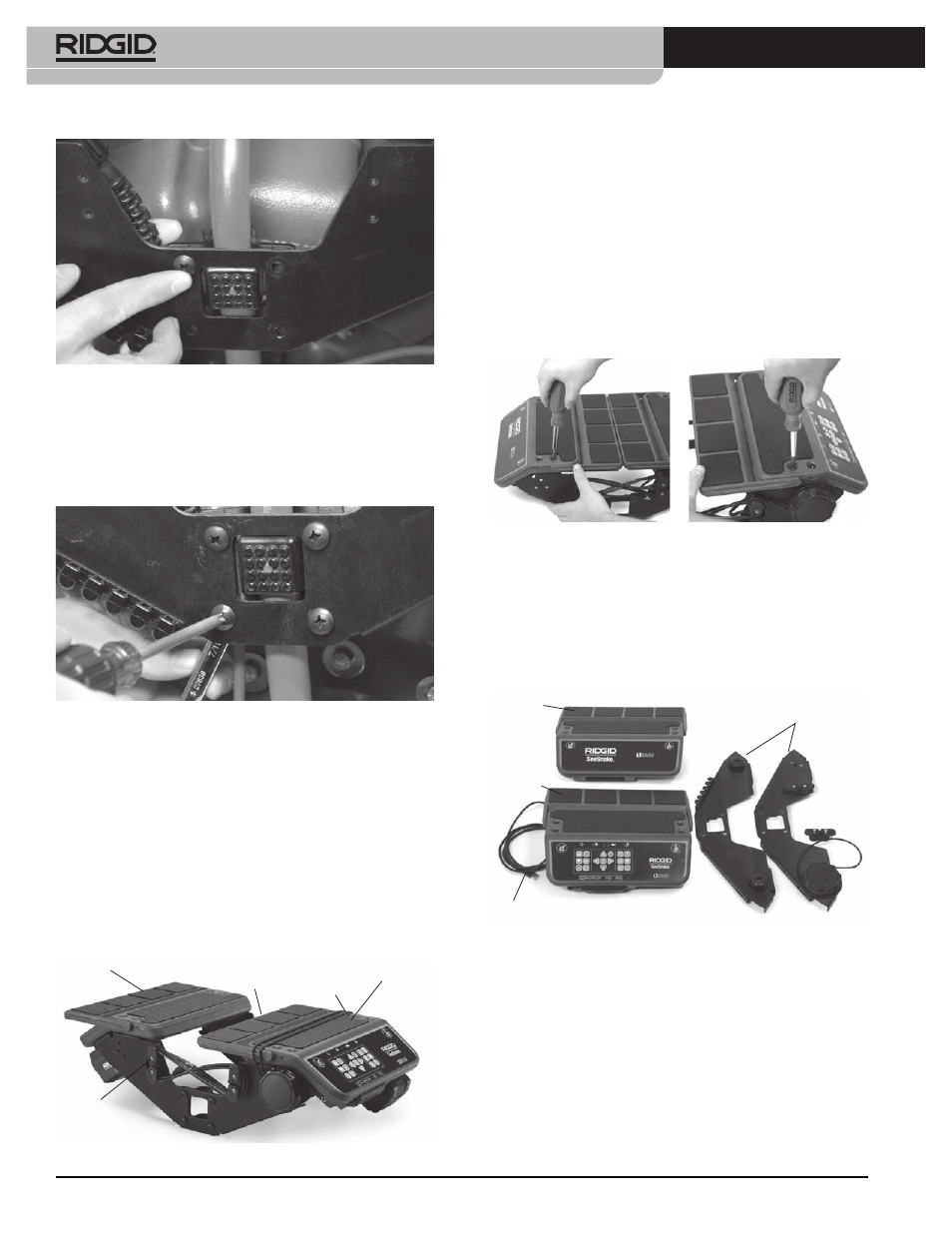

Figure 5 – First Machine Screw
Figure 6 – Tightening Screws
Figure 8 – Removing the Platform Screws (SeeSnake
Standard)
Wings
USB Cord
Wrap
Right
Platform
Left
Platform
Laptop
Retaining
Cord
Figure 7 – Lowering the Platform Wings
Left
Platform Side
Plates
Right
Platform
Figure 9 – Parts of the LT1000
USB Cord
