Chapter 18 Classifier
ES-3148 User’s Guide
152
18.3 Viewing and Editing Classifier Configuration
To view a summary of the classifier configuration, scroll down to the summary table at the
bottom of the Classifier screen. To change the settings of a rule, click a number in the Index
field.
"
When two rules conflict with each other, a higher layer rule has priority over
lower layer rule.

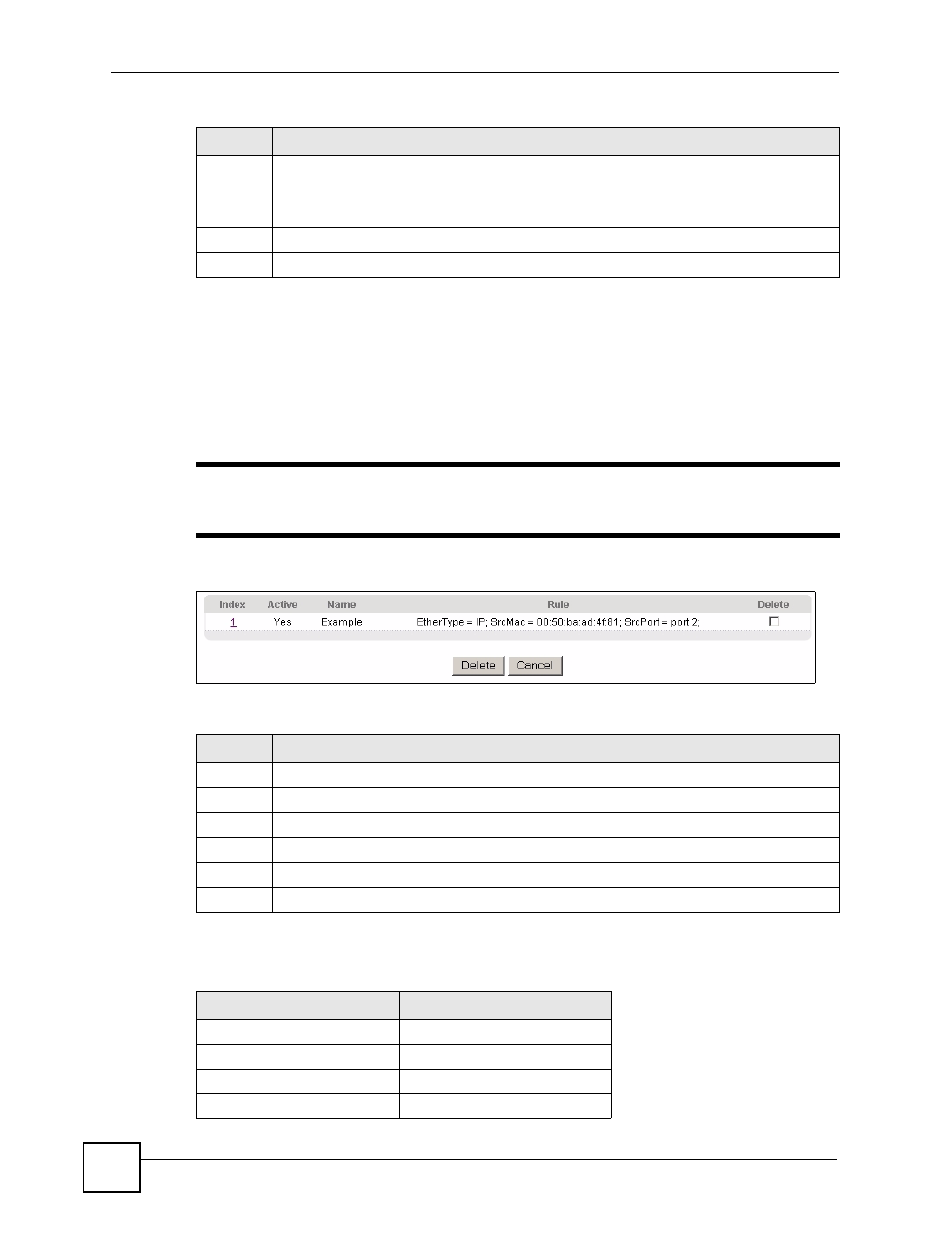

Figure 73 Advanced Application > Classifier: Summary Table
The following table describes the labels in this screen.
The following table shows some other common Ethernet types and the corresponding protocol
number.
Add Click Add to insert the entry in the summary table below and save your changes to the
Switch’s run-time memory. The Switch loses these changes if it is turned off or loses
power, so use the Save link on the top navigation panel to save your changes to the non-
volatile memory when you are done configuring.
Cancel Click Cancel to begin configuring this screen afresh.
Clear Click Clear to set the above fields back to the factory defaults.
Table 44 Advanced Application > Classifier (continued)
LABEL DESCRIPTION
Table 45 Classifier: Summary Table
LABEL DESCRIPTION
Index This field displays the index number of the rule. Click an index number to edit the rule.
Active This field displays Yes when the rule is activated and No when it is deactivated.
Name This field displays the descriptive name for this rule. This is for identification purpose only.
Rule This field displays a summary of the classifier rule’s settings.
Delete Click Delete to remove the selected entry from the summary table.
Cancel Click Cancel to clear the Delete check boxes.
Table 46 Common Ethernet Types and Protocol Number
ETHERNET TYPE PROTOCOL NUMBER
IP ETHII 0800
X.75 Internet 0801
NBS Internet 0802
ECMA Internet 0803
