Prestige 642 ADSL Internet Access Router
Remote Node TCP/IP Configuration
5-3
In this case, only one set of VPI and VCI numbers need be specified for all protocols. The valid range for
the VPI is 1 to 255 and for the VCI is 32 to 65535 (1 to 32 is reserved for local management of ATM
traffic).
The following diagram explains the Sample IP Addresses to help you to understand the field of My Wan
Addr
in Menu 11.3. Refer to the following figure for a brief review of what a WAN IP is. My WAN Addr
indicates the local Prestige WAN IP while Rem IP Address indicates the peer WAN IP.
Figure 5-4

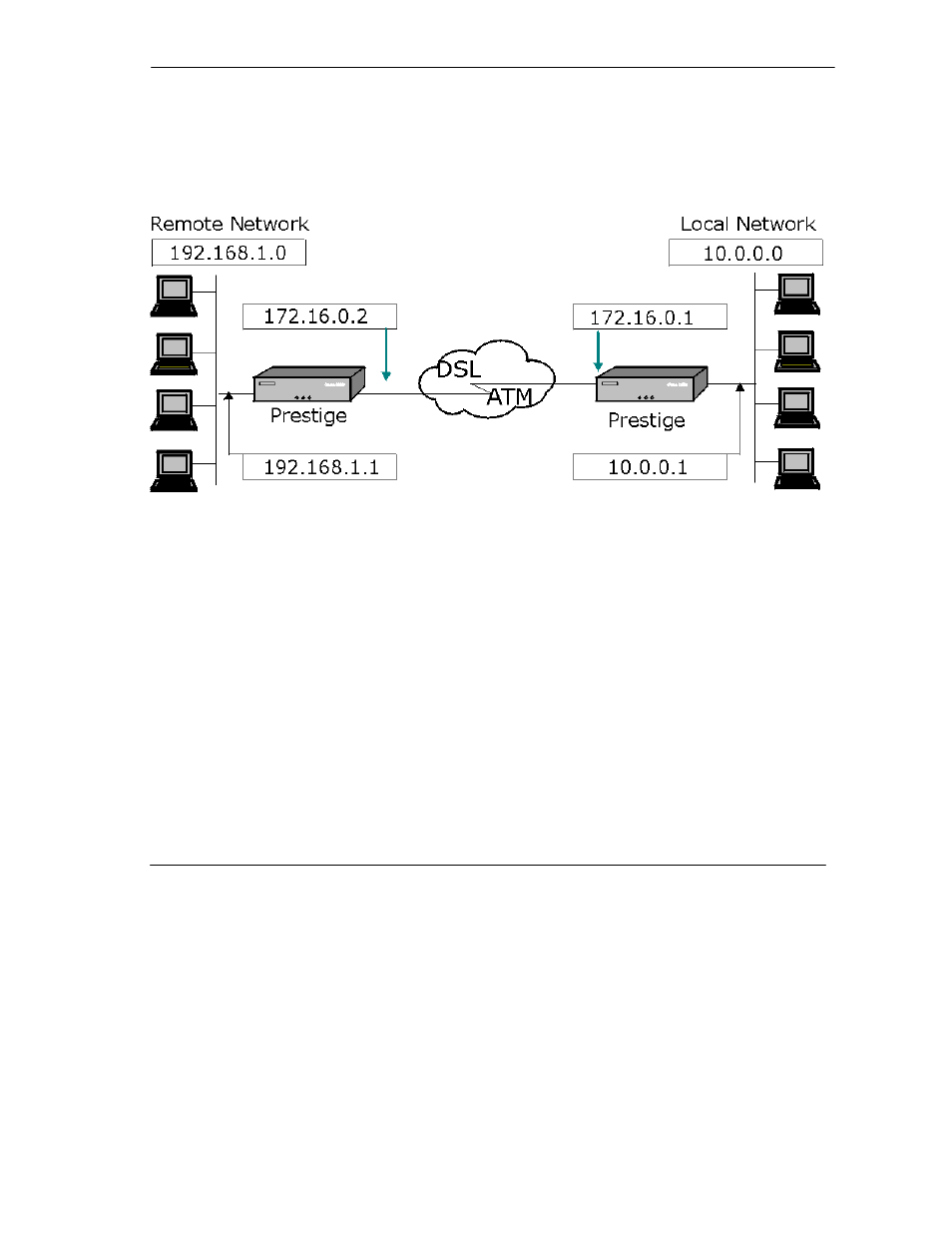

Sample IP Addresses for a TCPI/IP LAN-to-LAN Connection
To configure the TCP/IP parameters of a remote node, first configure the two fields in Menu 11 – Remote
Node Profile
, as shown in the table below.
