Prestige 642 ADSL Internet Access Router

2-1

Hardware Installation & Setup

Chapter 2

Hardware Installation & Initial Setup

This chapter describes the physical features of the Prestige and how to make the cable

connections

.

2.1 Front Panel LEDs OF P642

The LED indicators on the front panel indicate the operational status of the Prestige 642. The table below
the diagram describes the LED functions:

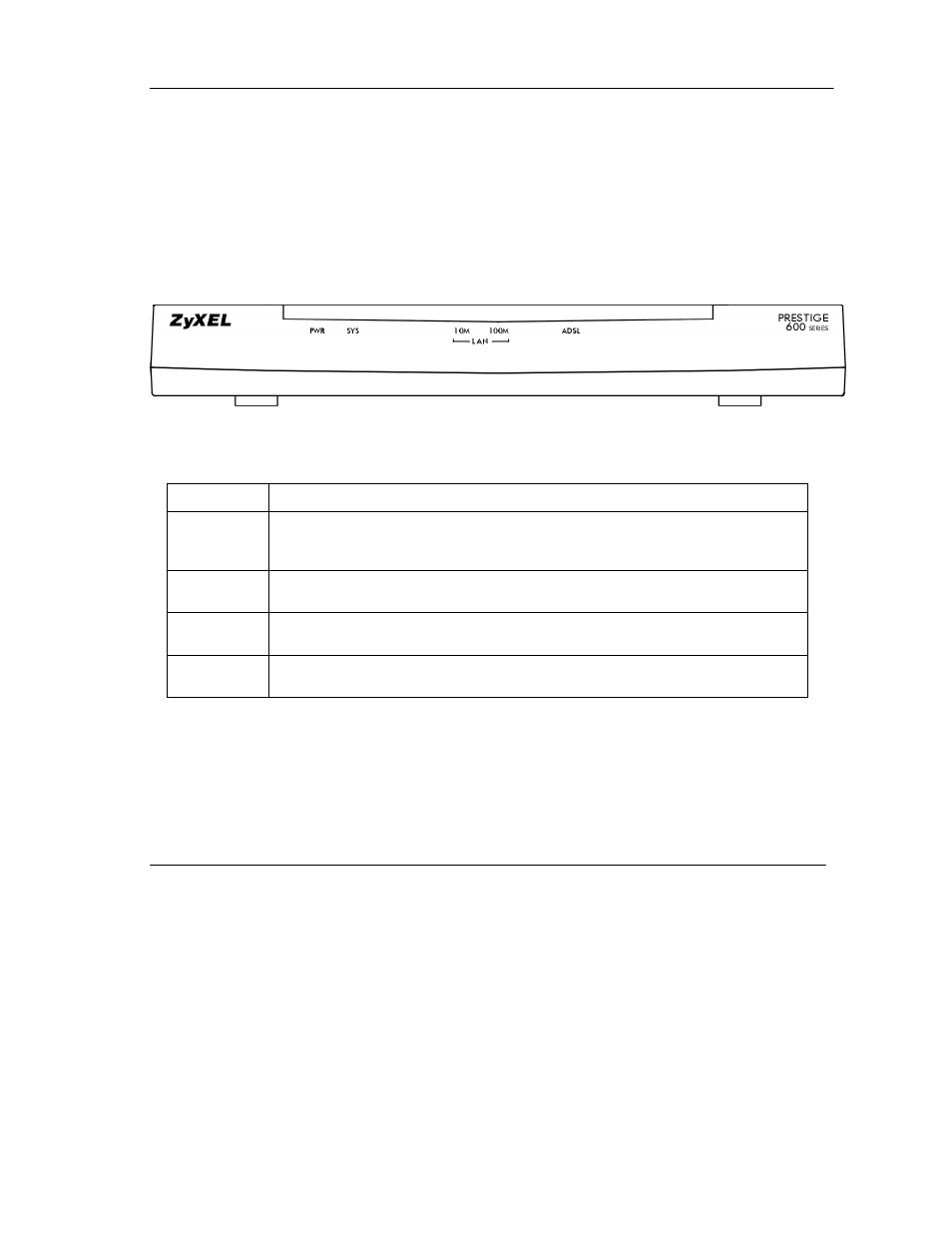

Figure 2-1

Prestige 642 Front Panel.

Table 2-1

Front Panel LED Description

PWR

The PWR (power) LED is on when power is applied to the Prestige.

SYS

A steady on SYS (system) LED indicates the Prestige is on and functioning properly
while an off SYS LED indicates the system is not ready or a malfunction. The
system is rebooting when the SYS LED is blinking.

LAN 10M

A steady light indicates a 10Mb Ethernet connection. The LED will blink when data
is being sent/received.

LAN 100M

A steady light indicates a 100Mb Ethernet connection. The LED will blink when data
is being sent/received.

ADSL

The ADSL LED is on when the Prestige is connected successfully to a DSLAM. The
LED blinks when data is being sent/received. The LED is off when the link is down.

2.2 Prestige 642 Rear Panel and Connections

The following figure shows the rear panel connectors of your Prestige.
