Prestige 642 ADSL Internet Access Router
2-4 Hardware Installation & Setup
Step 1. Connect a phone cable from the wall jack to the single jack end of the Y- Connector.
Step 2. Connect a cable from the double jack end of the Y-Connector to the “wall side” of the
microfilter.
Step 3. Connect another cable from the double jack end of the Y-Connector to the Prestige.
Step 4. Connect the “phone side” of the microfilter to your telephone as shown in the following figure.

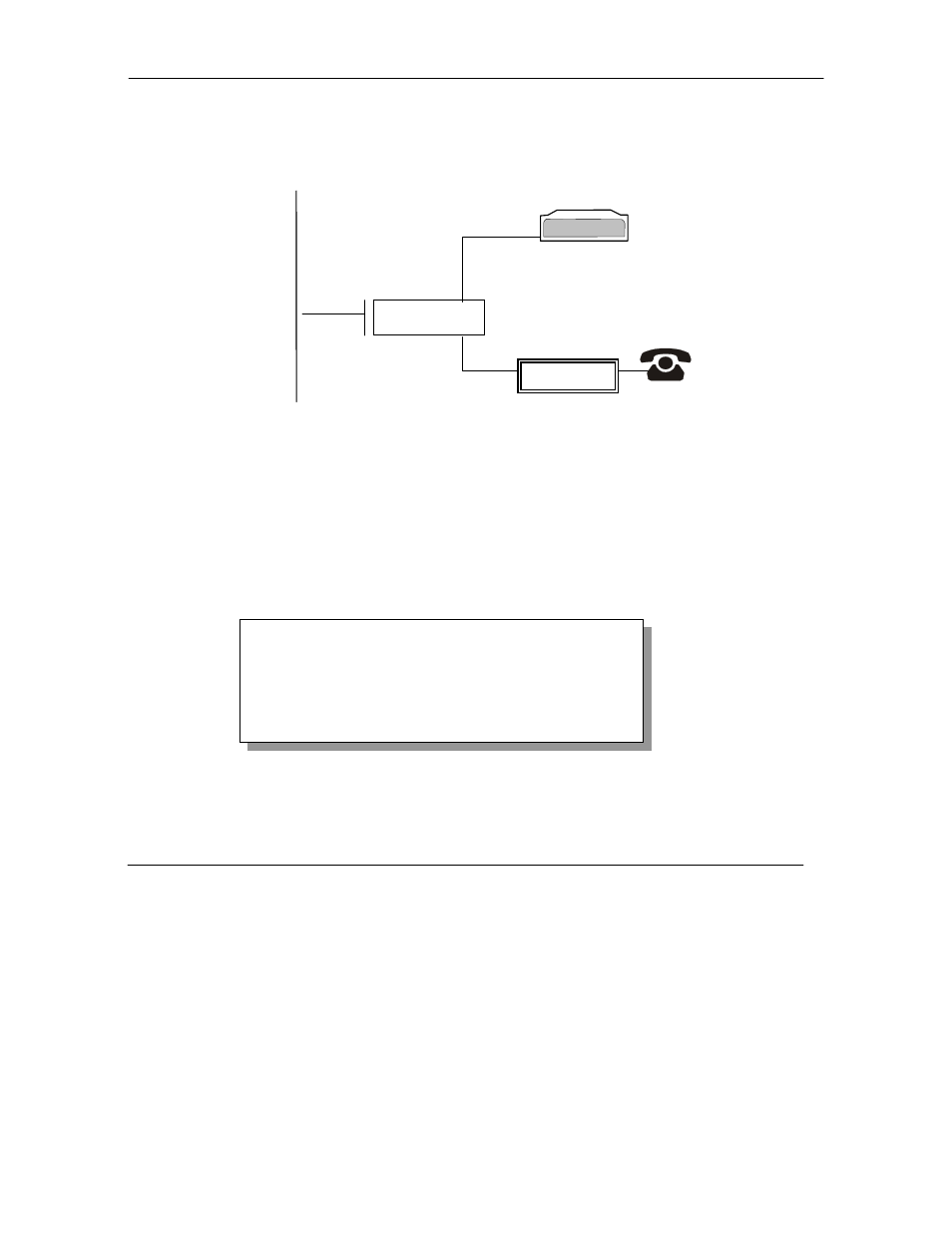

Figure 2-4 Connecting the Microfilter
2.6 Power Up Your Prestige
At this point, you should have connected the console port, the ADSL line, the Ethernet port and the power
port to the appropriate devices or lines. You can now apply power to the Prestige by turning the switch on.
Step 1. Initial Screen
When you power on your Prestige, it performs several internal tests as well as line initialization. After the
initialization, the Prestige asks you to press ENTER to continue, as shown.
Figure 2-5 Power-On Display
Step 2. Entering Password
The login screen appears after you press ENTER, prompting you to enter the password, as shown below.
Copyright (c) 1994 - 2000 ZyXEL Communications Corp.
initialize ch =0, ethernet address: 00:a0:c5:01:23:45
HWSAR (FPGA) : programming (11969) ... done
HWSAR (FPGA) : testing ... done
Wan Channel init ........ done
Loading ADSL modem F/W
............................................... done
Press ENTER to continue...
Wall
Jack
Prestige
Y -CONNECTOR
Wall
Side Phone
Side
Microfilter
