8
914 mm
FLOOR TO
COUNTERTOP
762 mm min
COUNTERTOP
TO COMBUSTIBLE
MATERIALS
SEE COUNTERTOP
CUT-OUT BELOW
340 mm
CUT-OUT
WIDTH
COUNTERTOP CUT-OUT
FRONT
489 mm
CUT-OUT
DEPTH
64 mm min
51 mm TO
COMBUSTIBLE *
51 mm TO
COMBUSTIBLE * 51
mm*
SIDE
CABINET
330 mm
max
*Minimum clearance from cooktop cut-out to combustible materials up to 457 mm above countertop.
NOTE: Application shown allows for installation of two 381 mm modules side by side.
E
381 mm
381
mm
114 mm
457 mm min

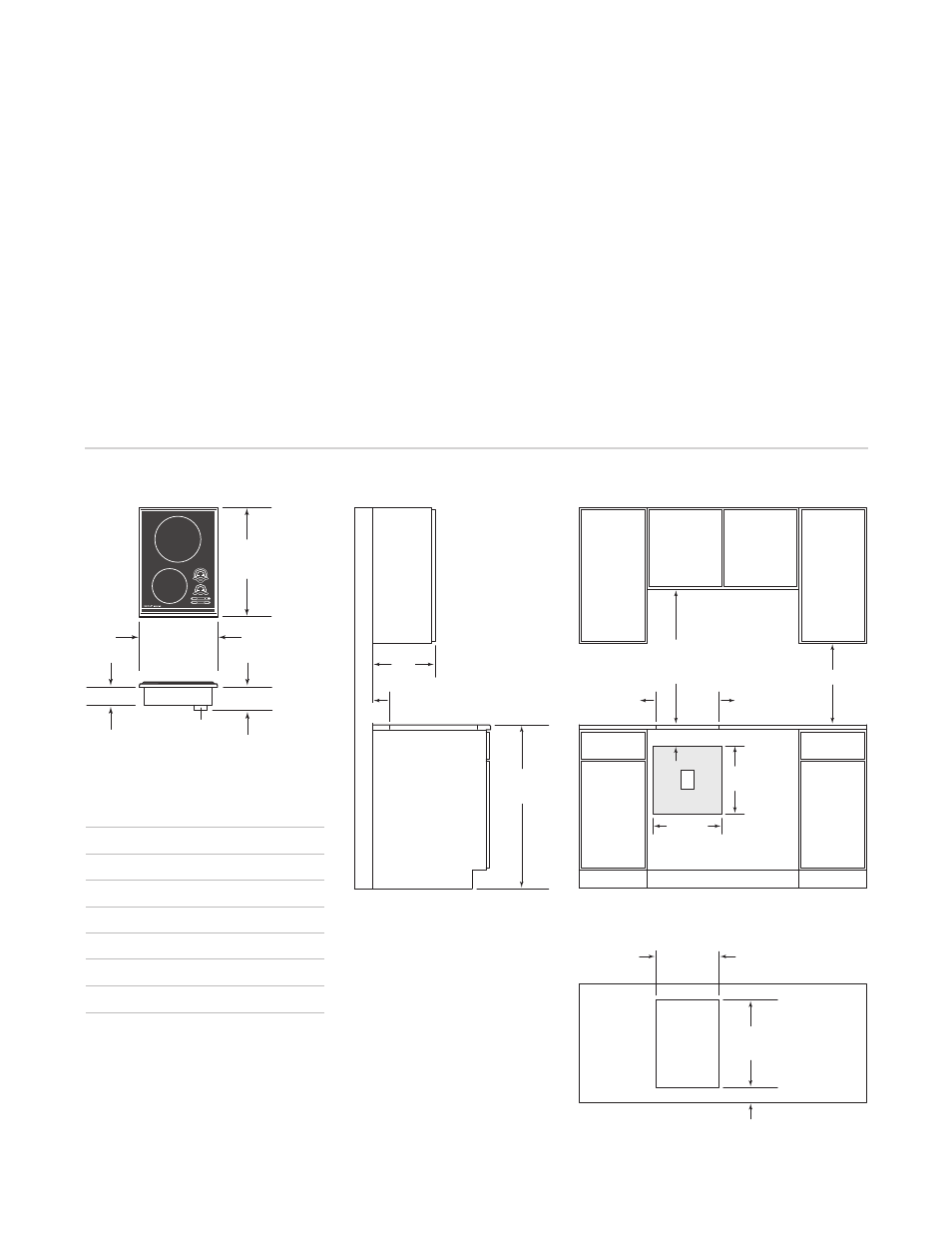

Overall Dimensions
533 mm
OVERALL
DEPTH
381 mm
OVERALL WIDTH
64 mm
TERMINAL BOX
96 mm
M O D E L I C B C T 1 5 I / S
Overall Width 381 mm
Overall Height 64 mm
Overall Depth 533 mm
Minimum Cabinet Depth 578 mm
Minimum Height Clearance* 96 mm
Cut-Out Width 340 mm
Cut-Out Depth 489 mm
I N S TA L L AT I O N S P E C I F I C AT I O N S – M O D E L I C B C T 1 5 I / S
F R A M E D M O D E L I C B C T 1 5 I / S
The illustrations below provide installation
specifications for Model ICBCT15I/S. If Model ICBCT15I/S is installed above
cabinets, the electrical placement is not critical.
The appliance shall be installed in such a way
to allow disconnection of the appliance from
the supply mains after installation.
*Minimum 152 mm clearance is required
between countertop and any combustible
surface directly below the cooktop.
For detailed terminal block dimensions,
refer to the illustration on page 7.
Dimensions may vary to ± 3 mm.
