Wolf Induction s ICBCT30I - Manual (Page 12)

457 mm min
914 mm
FLOOR TO
COUNTERTOP
762 mm min
COUNTERTOP
TO COMBUSTIBLE
MATERIALS
762 mm OVEN OPENING
114 mm
254 mm
89 mm E
SEE COUNTERTOP
CUT-OUT BELOW
721 mm
CUT-OUT WIDTH
COUNTERTOP CUT-OUT RECESS FOR FLUSH INSTALLATION
FRONT
492 mm
CUT-OUT
DEPTH
62 mm min
537 mm
RECESS
FOR FLUSH
INSTALLATION
40 mm
51 mm TO
COMBUSTIBLE *
51 mm TO
COMBUSTIBLE * 51
mm*
SIDE
CABINET
330 mm
max
*Minimum clearance from cooktop cut-out to combustible materials up to 457 mm above countertop.
NOTE: Electrical location applies only to installation with built-in oven.
8 mm
22
mm max
COUNTERTOP
PROFILE
33 mm
RADIUS
11 mm RADIUS
765 mm
RECESS FOR FLUSH INSTALLATION
533 mm
OVERALL
DEPTH
762 mm
OVERALL WIDTH
98 mm 76 mm
TERMINAL BOX
12
W O L F I N D U C T I O N C O O K TO P S
Overall Dimensions
U N F R A M E D M O D E L I C B C T 3 0 I U

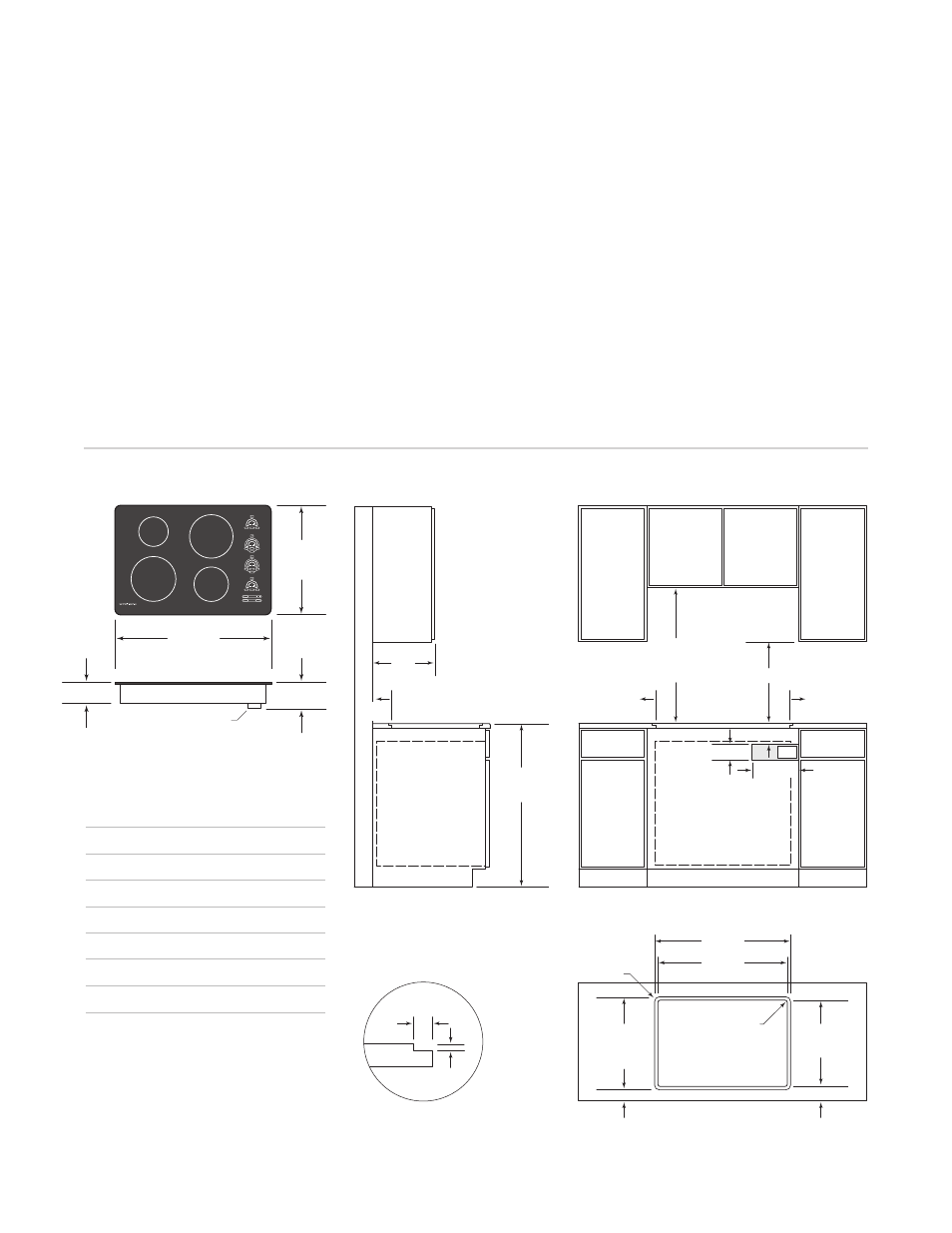

The illustrations below provide installation
specifications for Model ICBCT30IU.
For ease of installation, 838 mm cabinets are
recommended for installation of Model ICBCT30IU.
A Wolf 762 mm built-in single oven may be
installed below Model ICBCT30IU. For this
installation, unless you are using cabinets
deeper than 610 mm, it is recommended that
the electrical supply be placed in the base
cabinet to the right of the oven. Refer to instal-
lation instructions provided with the built-in
oven for additional specifications.
If Model ICBCT30IU is installed above cabinets,
electrical placement is not critical. The appli-
ance shall be installed in such a way to allow
disconnection of the appliance from the supply
mains after installation.
For Model ICBCT30IU installation options, refer
to Unframed Installations on pages 14–15.
IMPORTANT NOTE: For flush mount applica-
tions, it is recommended to measure the
cooktop glass before cutting the countertop to
ensure a proper fit. Small variances may exist
between the template and the cooktop.
M O D E L I C B C T 3 0 I U
Overall Width 762 mm
Overall Height 76 mm
Overall Depth 533 mm
Minimum Cabinet Depth 578 mm
Minimum Height Clearance* 98 mm
Cut-Out Width 721 mm
Cut-Out Depth 492 mm
I N S TA L L AT I O N S P E C I F I C AT I O N S – M O D E L I C B C T 3 0 I U
*Minimum 165 mm clearance is required
between countertop and any combustible
surface directly below the cooktop.
For detailed terminal block dimensions,
refer to the illustration on page 7.
Dimensions may vary to ± 3 mm.
