10
W O L F I N D U C T I O N C O O K TO P S
F R A M E D M O D E L I C B C T 3 6 I / S

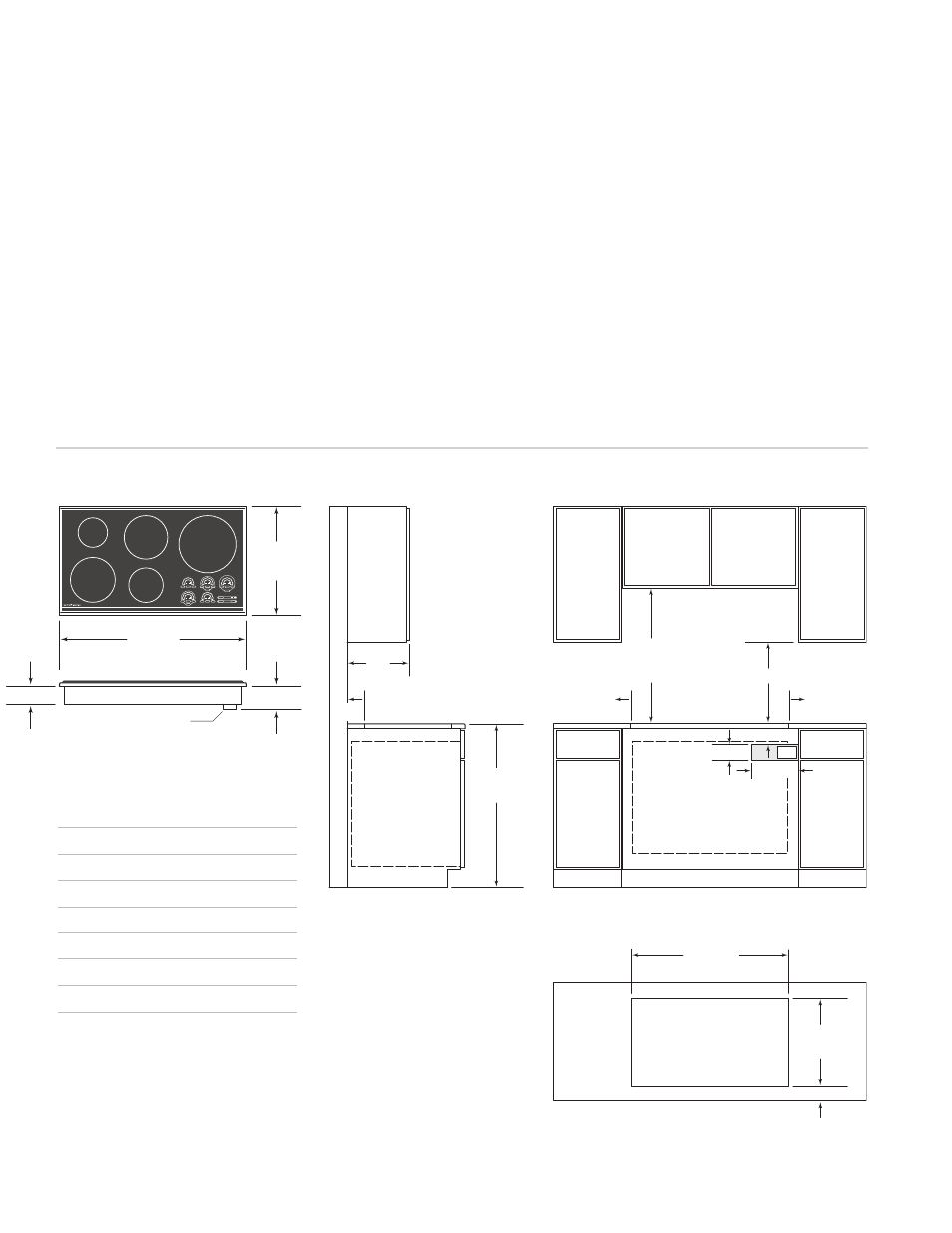

The illustrations below provide installation
specifications for Model ICBCT36I/S.
For ease of installation, 991 mm cabinets are
recommended for installation of Model
ICBCT36I/S.
A Wolf 762 mm or 914 mm built-in single oven
may be installed below Model ICBCT36I/S. For
this installation, unless you are using cabinets
deeper than 610 mm, it is recommended that
the electrical supply be placed in the base
cabinet to the right of the oven.
Refer to installation instructions provided with
the built-in oven for additional specifications.
If Model ICBCT36I/S is installed above
cabinets, the electrical placement is not critical.
The appliance shall be installed in such a way
to allow disconnection of the appliance from
the supply mains after installation.
457 mm min
914 mm
FLOOR TO
COUNTERTOP
762 mm min
COUNTERTOP
TO COMBUSTIBLE
MATERIALS
914 mm OVEN OPENING
114 mm
254 mm
89 mm E
SEE COUNTERTOP
CUT-OUT BELOW
873 mm
CUT-OUT WIDTH
COUNTERTOP CUT-OUT
FRONT
489 mm
CUT-OUT
DEPTH
64 mm min
51 mm TO
COMBUSTIBLE *
51 mm TO
COMBUSTIBLE * 51
mm*
SIDE
CABINET
330 mm
max
*Minimum clearance from cooktop cut-out to combustible materials up to 457 mm above countertop.
NOTE: Electrical location applies only to installation with built-in oven.
Overall Dimensions
533 mm
OVERALL
DEPTH
914 mm
OVERALL WIDTH
TERMINAL BOX
64 mm 96 mm
M O D E L I C B C T 3 6 I / S
Overall Width 914 mm
Overall Height 64 mm
Overall Depth 533 mm
Minimum Cabinet Depth 578 mm
Minimum Height Clearance* 96 mm
Cut-Out Width 873 mm
Cut-Out Depth 489 mm
I N S TA L L AT I O N S P E C I F I C AT I O N S – M O D E L I C B C T 3 6 I / S
*Minimum 152 mm clearance is required
between countertop and any combustible
surface directly below the cooktop.
For detailed terminal block dimensions,
refer to the illustration on page 7.
Dimensions may vary to ± 3 mm.
