Tools Needed:
34
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer.
To find your Wayne-Dalton dealer; refer to your local yellow pages / business listings or go to Find a dealer area online at www.wayne-dalton.com

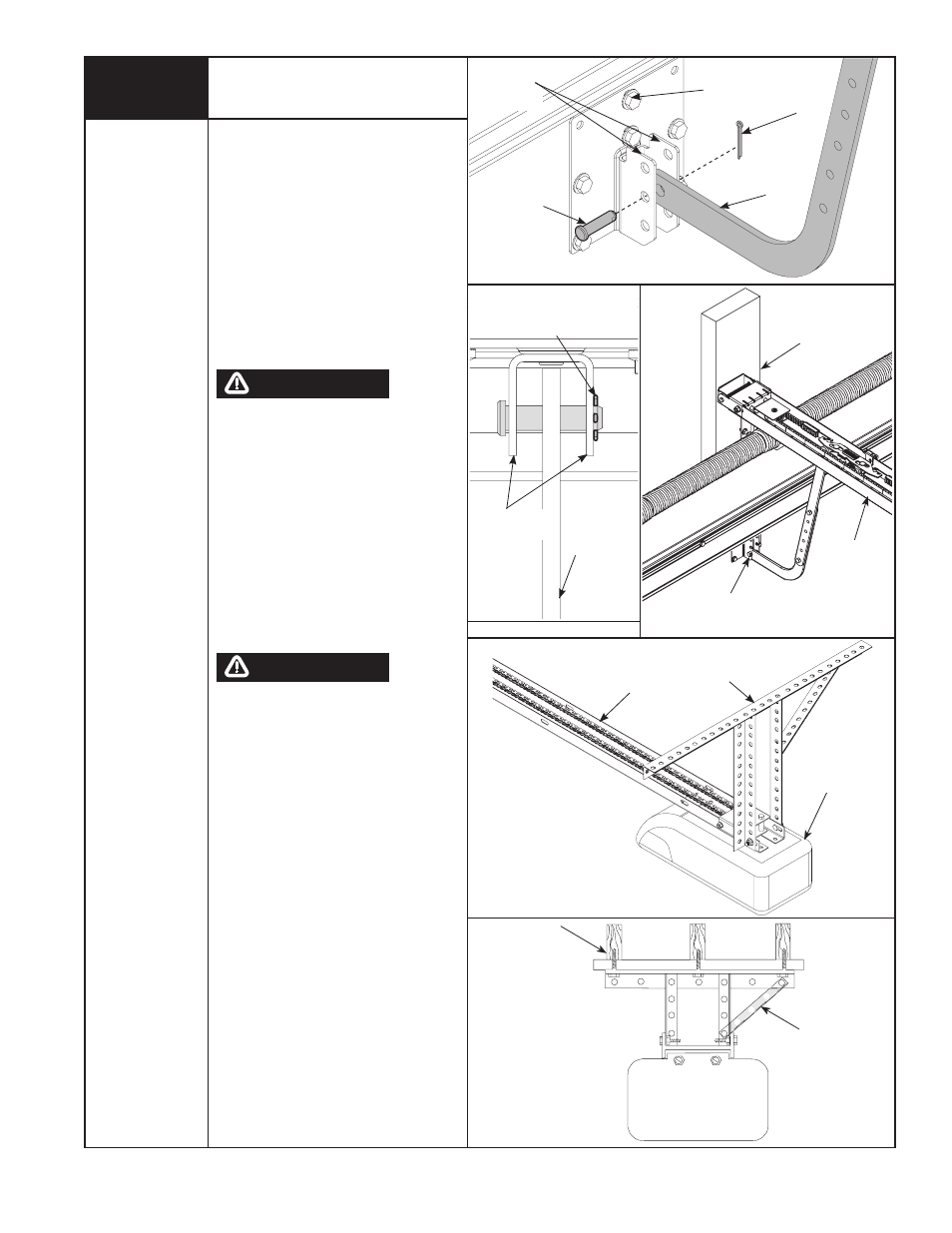

Trolley Operator
align hole in the appropriate arm with
holes in operator bracket tabs. Insert
5/16” x 1-1/4” clevis pin, making sure
hole in clevis pin is outside of second
tab of operator bracket. Insert hairpin
cotter into clevis pin hole and spread
hairpin cotter to ensure it will secure
assembly. Operator must be tested at
time of installation and monthly there
after to ensure that door reverses on
contact with 2” x 4” board laid flat under
the door. Failure to pass this test requires
immediate adjustments or repairs.
FaIluRE TO MakE aDjusTMENTs
OR REPaIRs, IF NECEssaRy, CaN
REsulT IN sEVERE OR FaTal
INjuRy.
If your operator is equipped with a
photoelectric eye system, then this must
be tested at the same time to ensure
that door does not close and a closing
door opens, if photoelectric eye system
is obstructed. Failure to pass this test
requires immediate adjustments or
repairs.
FaIluRE TO MakE aDjusTMENTs
OR REPaIRs, IF NECEssaRy, CaN
REsulT IN sEVERE OR FaTal
INjuRy.
1. Install operator rail 1/2” to 1”
(13 mm - 38 mm) above high arc
of top section of the door.
2. Mount operator to ceiling so that
1” to 1-1/2” (25 - 38 mm)
clearance is maintained between
trolley rail and top section when
door is fully open (trolley rail will
slope down towards rear).
3. attach door arm to operator
bracket installed in step 9.
4. attach operator rail to suitable
mounting surface, 2” x 6” lumber
minimum.
5. attach operator to ceiling using
perforated angle.
IMPORTANT! PERFORaTED aNGlE MusT
bE sECuREly aTTaChED TO sOuND
FRaMING MEMbER(s).
hEaDER
OPERaTOR
FRaMING
MEMbERs
PERFORaTED aNGlE
OPERaTOR
RaIl
PERFORaTED
aNGlE
OPERaTOR
RaIl
wARNINg
suITablE
MOuNTING
suRFaCE (2 x 6)
luMbER MIN.
DOOR aRM TO OPERaTOR
bRaCkET
wARNINg
None
haIRPIN
COTTER OPERaTOR
bRaCkET
DOOR
aRM
5/16” x 1-1/4”
ClEVIs PIN
OPERaTOR
bRaCkET
Tabs
DOOR aRM
Top view
haIRPIN COTTER
(OuTsIDE OF OPERaTOR
bRaCkET Tab)
OPERaTOR
bRaCkET Tabs
