Tools Needed:
16
Tools Needed:
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer.
To find your Wayne-Dalton dealer; refer to your local yellow pages / business listings or go to Find a dealer area online at www.wayne-dalton.com
Top Brackets
Power Drill
7/16” socket
Driver
NOTE: For door section identification see
page 4.

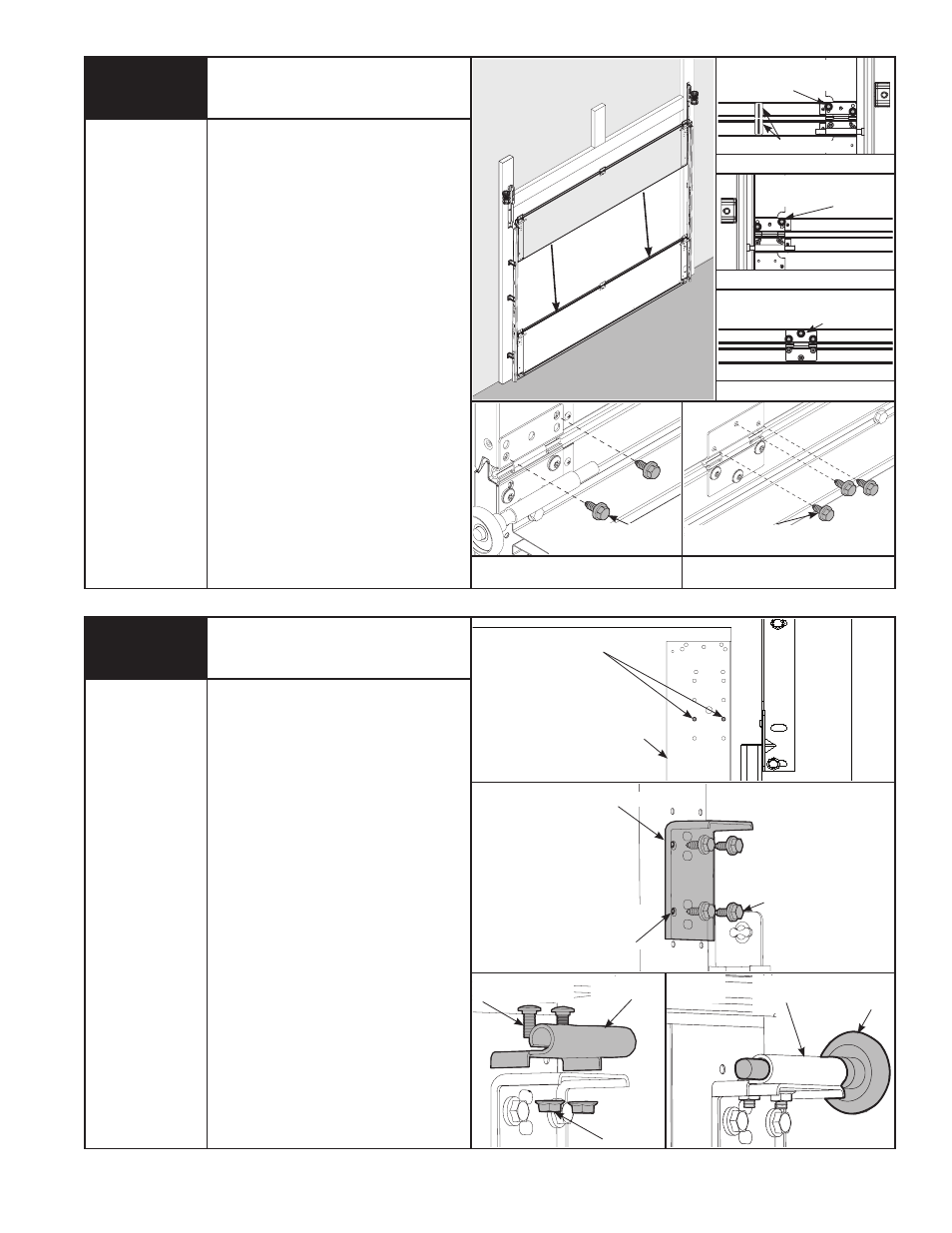

To install the l-shaped top brackets,
align the top holes in the top bracket
base with the second set of holes from
bottom of endcap.
Fasten top bracket base to endcap using
(4) 1/4” - 14 x 5/8” self-tapping screws.
secure the top bracket slide to the
bracket base loosely using (2)
1/4” - 20 x 5/8” carriage bolts and (2)
1/4” - 20 flanged hex nuts. The bracket
will be tightened and adjusted in step
15. Insert rollers into top bracket slide.
Repeat for other side.
10
Stacking Sections
NOTE: For door section identification see
page 4.
NOTE: Make sure hinge leafs are flipped
down, when stacking another section on top.
Place rollers in hinge tubes of the second
section (lock section). With assistance, lift
second section and guide rollers into the
vertical tracks. align vertical marks in the
upper alignment sticker, with the lower
alignment sticker on right hand side on the
back of door. keep sections aligned and
fasten hinges to connect the sections using
1/4” - 14 x 5/8” self-tapping screws. Repeat
for other section(s) except top section.
IMPORTANT: WhEN sECuRING ThE END
hINGEs TO ThE sECTIONs WITh 1/4” - 14
x 5/8” sElF-TaPPING sCREWs, ENsuRE
ThEy aRE aTTaChED as shOWN IN ThE
IllusTRaTIONs abOVE.
IMPORTANT: Push & hOlD ThE hINGE
lEaFs aGaINsT sECTION WhIlE sECuRING
WITh 1/4” - 14 x 5/8” sElF-TaPPING
sCREWs. END hINGEs haVE (2) sCREWs
aND INTERMEDIaTE hINGEs haVE (3)
sCREWs.
9
Power Drill
7/16” socket
Driver
(4) 1/4” - 14 x 5/8”
sElF TaPPING
sCREWs
TOP bRaCkET basE
TOP bRaCkET
slIDE
(2) 1/4” - 20
FlaNGED
hEx NuTs
ROllER
TOP bRaCkET
slIDE
TOP
sECTION
TOP
sECTION
(2) 1/4” - 20 x 5/8”
CaRRIaGE bOlTs
2ND sET OF hOlEs
FROM bOTTOM
2ND sET OF
hOlEs FROM
bOTTOM
ENDCaP
TOP sECTION
lOC
k s
ECTION
(2) 1/4” - 14 x 5/8”
sElF-TaPPING sCREWs
END hINGEs (lEFT haND shOWN, RIGhT
hINGE syMMETRICally OPPOsITE)
INTERMEDIaTE hINGEs
(3) 1/4” - 14 x 5/8” sElF-TaPPING
sCREWs
32 79 85 N EW 9 -0 4- 06
32 79 85 N EW 9 -0 4- 06
32 79 85 N EW 9 -0 4- 06
32 79 85 N EW 9 -0 4- 06
32 79 85 N EW 9 -0 4- 06
32 79 85 N EW 9 -0 4- 06
INTERMEDIaTE hINGE
lEFT END hINGE
RIGhT END hINGE
(3) 1/4” - 14 x 5/8”
sElF-TaPPING sCREWs
(2) 1/4” - 14 x 5/8”
sElF-TaPPING sCREWs
(2) 1/4” - 14 x 5/8”
sElF-TaPPING sCREWs
alIGNMENT sTICkERs
