Tools Needed:

Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer.

To find your Wayne-Dalton dealer; refer to your local yellow pages / business listings or go to Find a dealer area online at

www.wayne-dalton.com

NOTE: Drum wraps must be installed
prior to installing the TorqueMaster

plus end bracket. Drum wrap installation
after the end bracket is installed, is not
possible without un-installing the end
bracket and it’s components.

IMPORTANT: RIGhT aND lEFT haND Is
alWays DETERMINED FROM INsIDE ThE
GaRaGE lOOkING OuT.

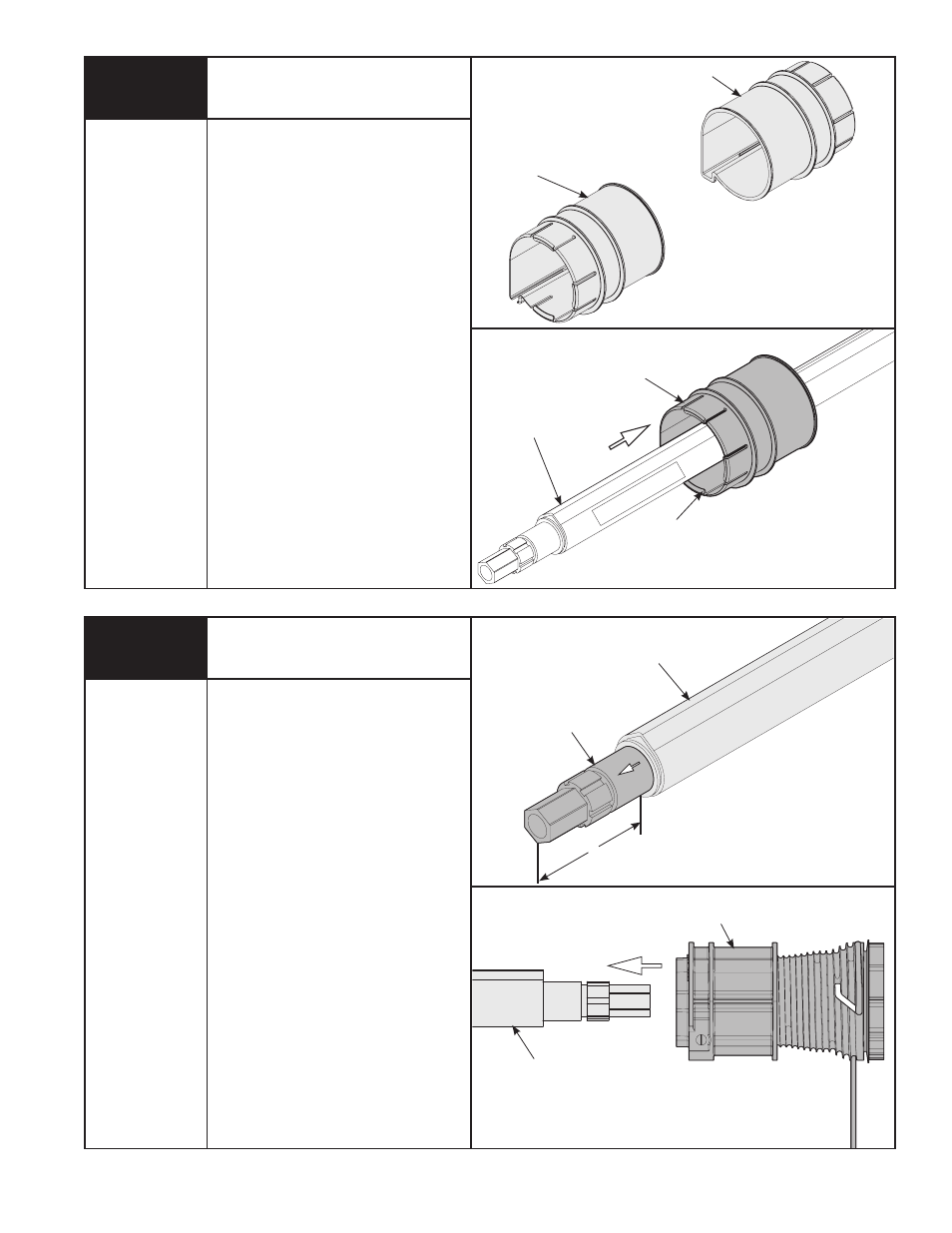

Drum wraps are identified as right and
left. slide the left hand drum wrap over
the left side of the TorqueMaster

spring

tube assembly with the tabs facing left.
Continue sliding the left hand drum wrap
towards the center of the TorqueMaster

spring tube assembly. slide the right
hand drum wrap over the right side of
the TorqueMaster

spring tube assembly

with the tabs facing right. Continue
sliding the right hand drum wrap
towards the center of the TorqueMaster

spring tube assembly.

lEFT haND DRuM WRaP

Drum wraps

None

RIGhT haND DRuM WRaP

TORquEMasTER

sPRING TubE assEMbly

Tabs

lEFT haND DRuM WRaP

shake the TorqueMaster

spring tube

assembly gently to extend the winding
shafts out about 5" on each side. For
single spring applications, there will be
no left hand spring in the TorqueMaster

spring tube assembly.

lift the TorqueMaster

spring tube

assembly and rest it on the top of the
flagangles.

NOTE: Cable drums are marked right
and left hand. Cable drums and
TorqueMaster

spring tube assembly

are cam shaped to fit together only one
way.

IMPORTANT: RIGhT aND lEFT haND Is
alWays DETERMINED FROM INsIDE ThE
GaRaGE lOOkING OuT.

To install the cable drum, slide the
correct cable drum over the winding
shaft until the cable drum seats against
the TorqueMaster

spring tube

assembly.

WINDING

shaFT

RIGhT DRuM

5”

Cable Drums

Tape Measure

TORquEMasTER

sPRING TubE assEMbly

TORquEMasTER

sPRING TubE assEMbly
