Tools Needed:
20
Tools Needed:
Please Do Not Return This Product To The Store. Contact your local Wayne-Dalton dealer.
To find your Wayne-Dalton dealer; refer to your local yellow pages / business listings or go to Find a dealer area online at www.wayne-dalton.com
15

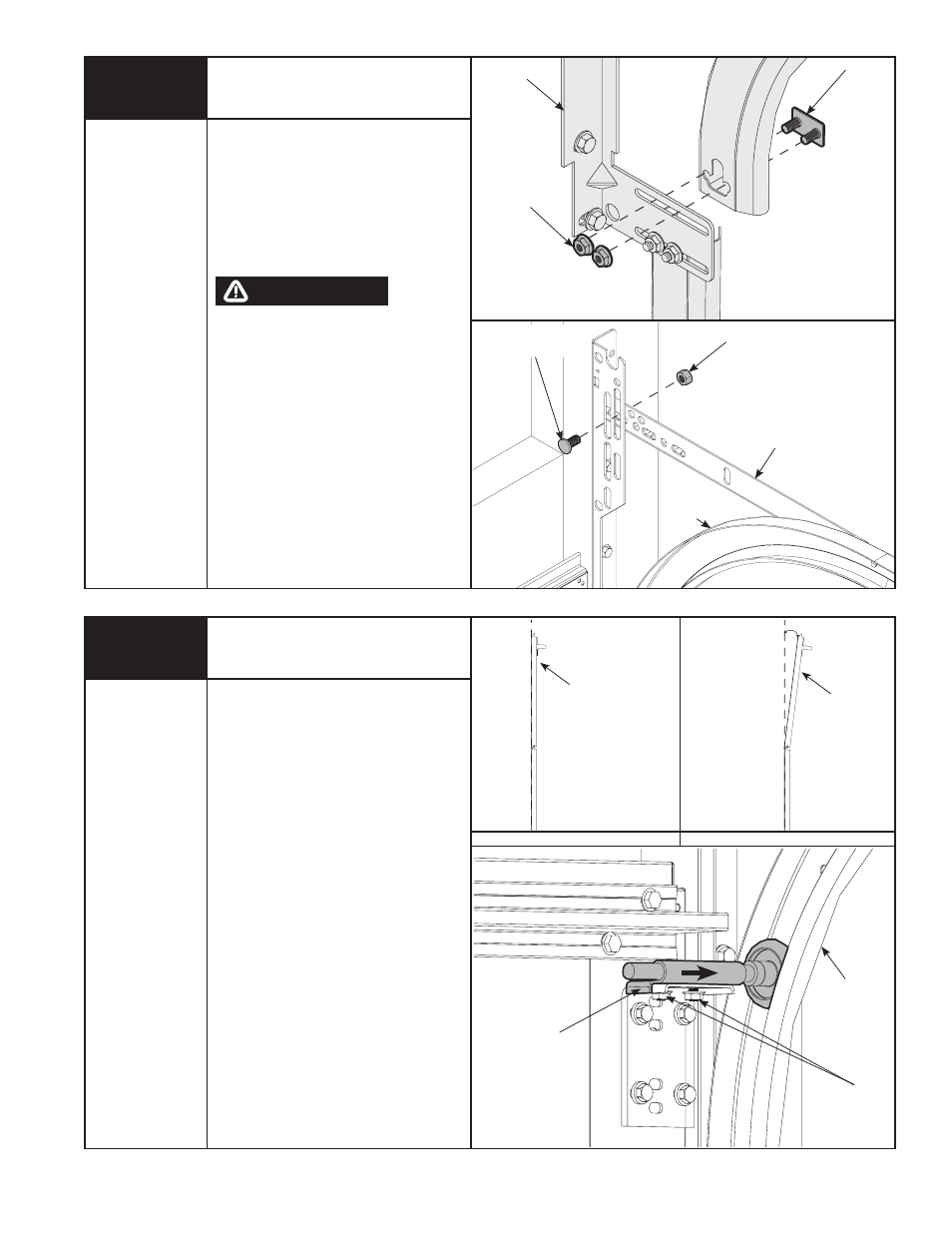

Adjusting Top Brackets
With horizontal tracks installed, you can
now adjust the top brackets.
Vertically align the top section of the
door with the lower sections. Once
aligned, position the top bracket slide,
out against the horizontal track.
Maintaining the slide’s position, tighten
the (2) 1/4” - 20 flange hex nuts to
secure the top roller slide to the top
bracket base.
hORIzONTal
TRaCk
TOP bRaCkET
slIDE
(2) 1/4” - 20
FlaNGED hEx
NuTs
CORRECT INCORRECT
7/16” Wrench
TOP
sECTION
TOP
sECTION
TOP
sECTION
Attaching horizontal Track
to Adjustable flagangle
NOTE: If quick install flagangles were
installed in step 13, skip this step and
continue with step 15. If not, complete this
step.
To install horizontal track, place the curved
end over the top roller. align the bottom of
the horizontal track with the vertical track.
hand tighten the horizontal track to the
flagangle with (1) stud plate and (2)
1/4” - 20 flange hex nuts.
DO NOT RaIsE DOOR uNTIl hORIzONTal
TRaCks aRE sE CuRED aT REaR, as
OuTlINED IN sTEP 26, OR DOOR COulD
Fall FROM OVERhEaD POsI TION CausING
sEVERE OR FaTal INjuRy.
level the horizontal track assembly and
bolt the horizontal angle to the slot in the
flagangle using (1) 3/8” - 16 x 3/4” truss
head bolt and (1) 3/8” - 16 hex nut. Repeat
for other side. Remove the nail that was
temporarily holding the top section in
place, installed in step 12.
IMPORTANT: FaIluRE TO REMOVE NaIl
bEFORE aTTEMPTING TO RaIsE DOOR
COulD CausE PERMaNENT DaMaGE TO
TOP sECTION.
NOTE: If an idrive ® opener will be installed,
position horizontal tracks slightly above
level.
14
7/16” socket
9/16” socket
Ratchet Wrench
9/16” Wrench
level
Flat Tip
screwdriver
1/4” - 20
FlaNGE hEx
NuTs
FlaGaNGlE sTuD
PlaTE
wARNINg
3/8” - 16 x 3/4”
TRuss hEaD bOlT
3/8” - 16 hEx NuT
hORIzONTal
TRaCk
hORIzONTal aNGlE
