Port LeDs 1.
Port LEDs provide status information about their corresponding CPU Ports. The top row of LEDs
corresponds to Ports 1 - 8; the bottom row corresponds to Ports 9 - 16. There are two LEDs for each
Port. The left one is the On-Line LED; the right one is the Selected Port LED:
An • On-Line LEDs light ORANGE to indicate that the computer attached to the corresponding
port is powered up and running.
A
• Selected LEDs light GREEN to indicate that the computer attached to the corresponding port is
the one that has the KVM focus. The LED is steady under normal conditions, but flashes when its
port is accessed under Auto Scan Mode (see F7 SCAN, page 21).
When the B022-016 KVM Switch is first powered on, the
• On-Line and Selected LEDs blink
sequentially as the Switch performs a self-test.
Reset Switch 2.
Pressing this switch performs a system reset. This switch is semi-recessed and must be pushed with a
thin object, such as the end of a paper clip or a ballpoint pen. Lights turn on to indicate that the KVM is
powered up and ready to operate.
Station ID LeD 3.
The B022-016’s Station ID is displayed here. If this is a Single Station installation (see page 9), or
the First Station on a daisy-chained installation (see page 9), the unit has a Station ID of 01. On a
daisy-chained installation, the KVM auto-senses its position and displays the Station ID that
corresponds to its place in the chain (see Port ID Numbering, page 13 for details).
3. Introduction
(Continued)

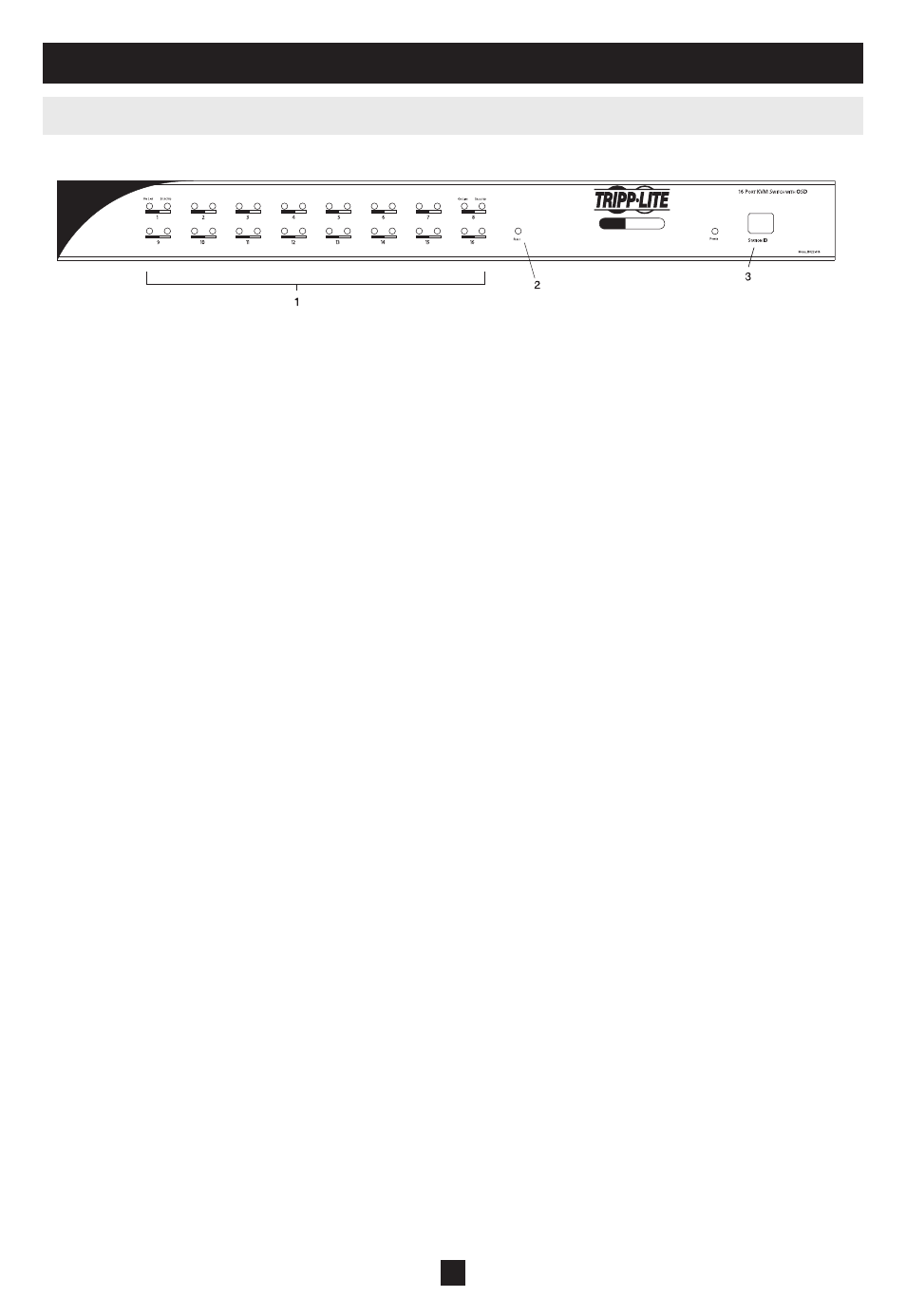

3.2 Front View of B022-016
16-PORT RACKMOUNT
KVM SWITCH
Model: B022-016
KVM SWITCH
