9

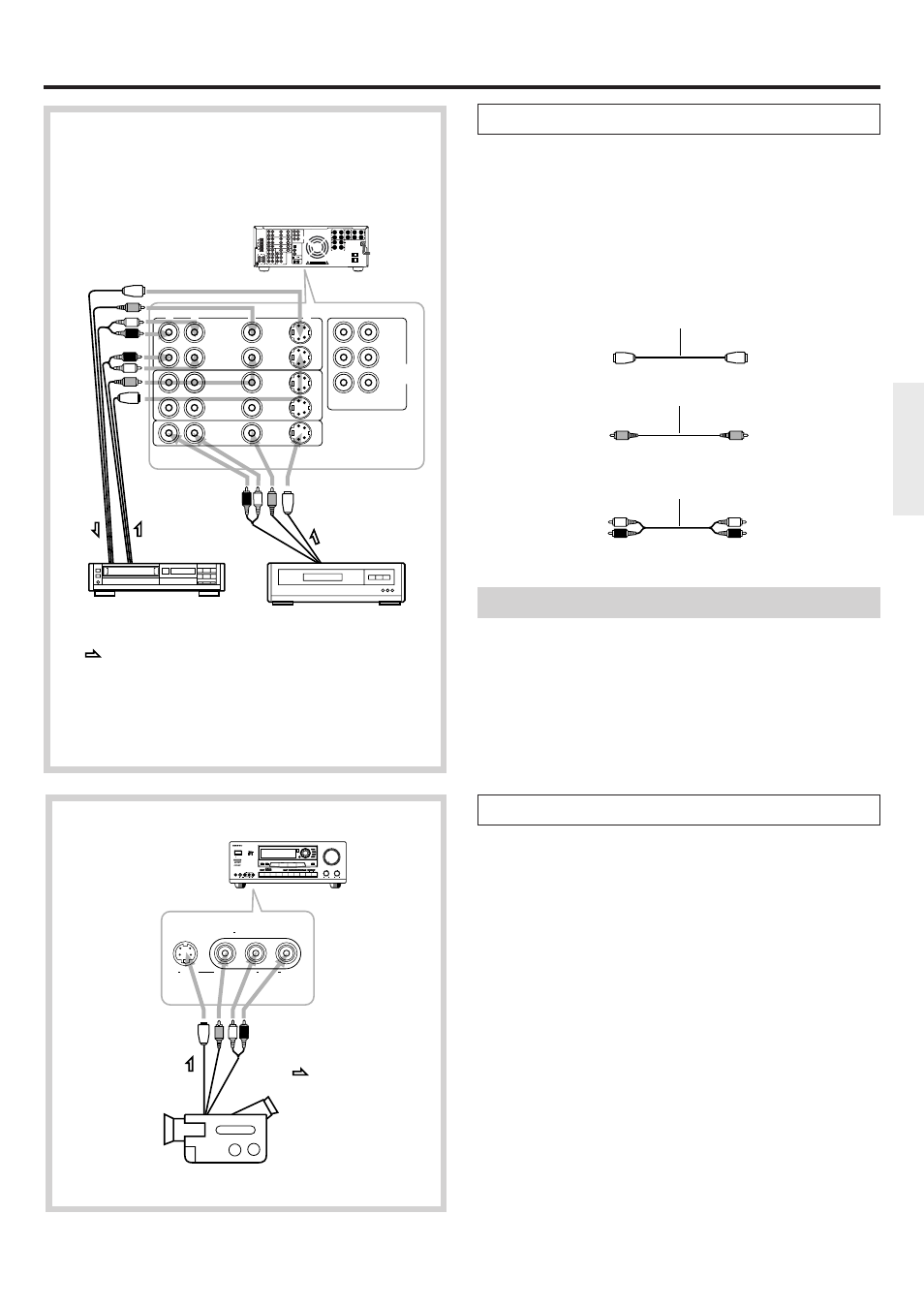

3 Connecting video source equipment
• With a DVD player, video disc player, etc., that is equipped with at least
one digital audio output terminal, its audio output can be connected to the
TX-DS656 via an optical or coaxial cable (see the previous page). In this
case, for recording or using the Multi-source function, it is also necessary
that you connect the equipment via audio connection cables.
• The VIDEO-1 and VIDEO-2 OUT jacks can be used to connect
recording equipment such as a video cassette recorder.
• Video input signals to the TX-DS656 cannot be output back to the same or
other equipment. In other words, the VIDEO-1 V OUT jack does not output
signals which have been input to the TX-DS656 from its VIDEO-1 V IN jack.
4 Connecting a video camera or TV game machine
Connect your video camera or TV game machine to the VIDEO-3/
VIDEO CAM INPUT jacks.
If a monaural video camera is used, connect its audio connection cable
to "R (MONO)" audio jack.
If you have connected a video source with an S-Video output
• The TX-DS656 does not convert S-video input signals into normal
video signals. That is, input signals to the VIDEO-1/2/3/DVD S IN
jack will be output from the MONITOR OUTPUT S jack and the
VIDEO-1/2 S OUT jack only. Similarly, input signals to the VIDEO-
1/2/3/DVD V IN jack will be output from the MONITOR OUTPUT V
jack and the VIDEO-1/2 V OUT jack only.
• See the owner's manual of your video source equipment to determine
whether to connect it via normal video connection cables only or via
both normal video and S-video connection cables.
MJ 27122482
ANTENNA
AM
R V L OUT
IN VIDEO-1 OUT
IN
VIDEO-2 OUT
IN
OUT
IN
IN IN
TAPE-1
TAPE-2
DVD
OUT IN
OUT
R L
R L PHONO
CD
GND
(PLAY)
(REC)
(PLAY)
(REC)
R L CENTER SUBWOOFER
SURROUND
FRONT R L
R L
V
PRE OUT
FRONT R L
R L
DIGITAL INPUT DIGITAL 1 (OPTICAL) DIGITAL 2 (COAXIAL)
OUT IN REMOTE CONTROL
R
L
AC OUTLETS
MONITOR OUTPUT
SURROUND
CENTER SUBWOOFER
DIGITAL 3 (COAXIAL)
S
MULTI CHANNEL INPUT
L
R R L
S
IN
SURROUND SPEAKERS FRONT SPEAKERS MAIN CENTER SPEAKER
AC 120V 60Hz SWITCHED TOTAL 120W 1A MAX.
FRONT REMOTE SPEAKERS
FM 75 FM 300
WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR AVIS
CAUTION: SPEAKER IMPEDANCE 6 OHMS MIN. / SPEAKER
L R
OUT
IN
VIDEO-1
OUT
IN
VIDEO-2
OUT
IN
OUT
IN
IN IN DVD
FRONT
R L
R L
SURROUND
CENTER SUBWOOFER
S
MULTI
CHANNEL
INPUT
V
TX-DS656
IN OUT OUT
Video cassette recorder DVD player
: Signal flow
S-Video connection cable
To source's S-Video
output jack To receiver's VIDEO-
1/2/3/DVD S IN jack
Video connection cable
To source's Video
output jack To receiver's VIDEO-
1/2/3/DVD V IN jack
Audio connection cable
(White)
(Red)
(White)
(Red)
To source's Left
audio output jack
To source's Right
audio output jack
To receiver's VIDEO-
1/2/3/DVD L IN jack
To receiver's VIDEO-
1/2/3/DVD R IN jack
(Yellow) (Yellow)
TX-DS656
Video camera or TV game machine
: Signal flow
L R
VIDEO CAM INPUT / 3 VIDEO
S VIDEO VIDEO (MONO) AUDIO
A-DS 656
MASTER VOLUME
MAX MIN
TREBLE
POWER
PHONES
DISPLAY PTY/TP CHARACTER SCAN GROUP MEMORY FM MUTE / MODE CLEAR TI CH INPUT MUL
VIDEO CAM INPUT / 3 VIDEO
VIDEO AUDIO L R(MONO)
BASS DIGITAL AUDIO SELECTOR
S VIDEO
AV DIGITAL SURROUND AMPLIFIER
STAND-BY
AUTO TUN
SMART SCAN CONTROLLER
ENTER
3-D BASS MAIN REMOTE SPEAKERS
PRESET TUNING SURROUND PARAMETER
MIDNIGHT
THEATER Re-EQ MULTI SOURCE REC OUT
CD PHONO AM FM TAPE-2 MONITOR TAPE-1 M D VIDEO-3 CAM VIDEO-2
VCR-2 / TV VIDEO-1
VCR-1 DVD
PTY/TP
OUT
Connection
