Control positions and names

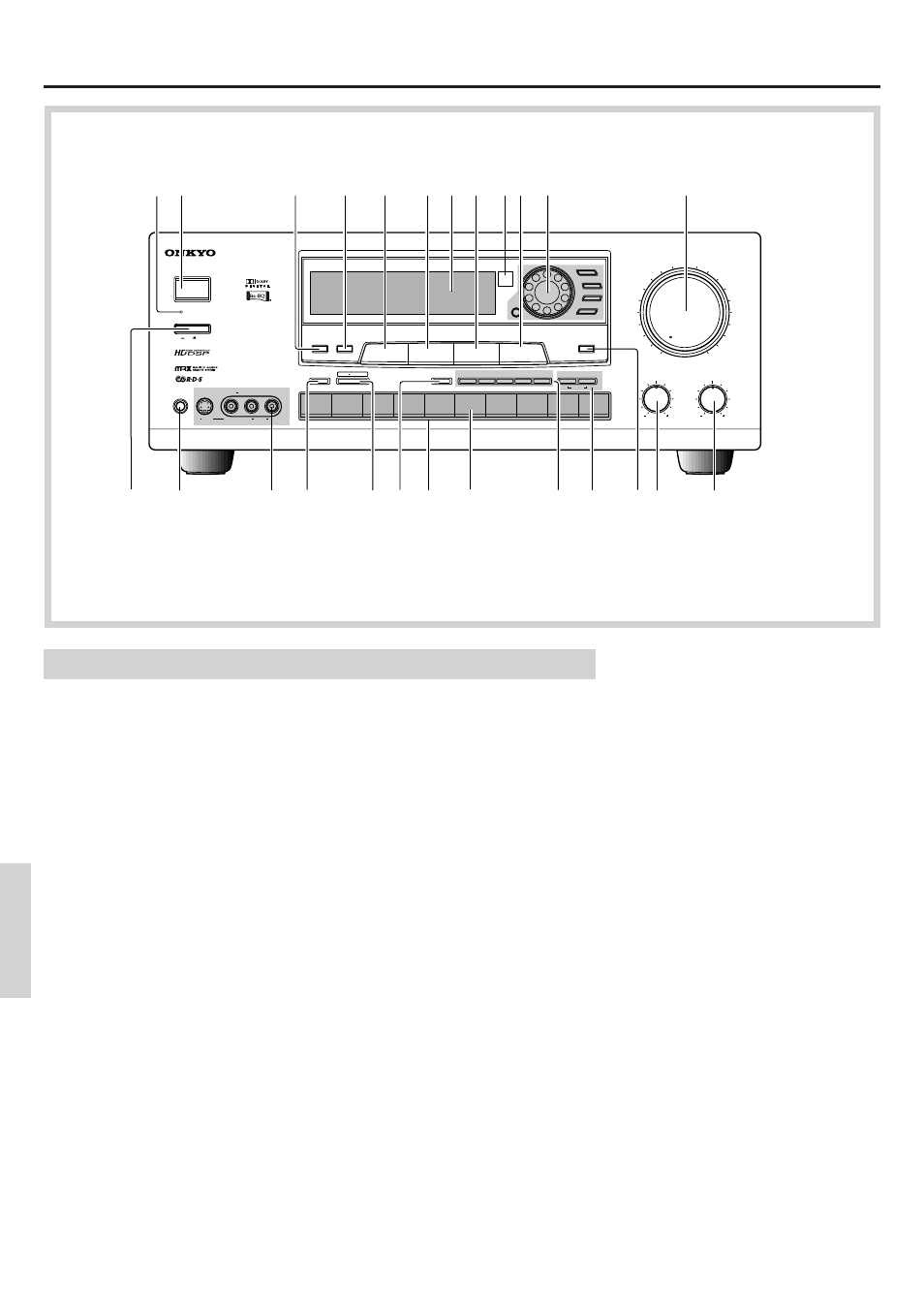

Front panel
Front panel
For more information about buttons or controls,
refer to the pages listed in brackets ([ ]) below.
1. STAND-BY indicator [17]
2. POWER (or SYSTEM) button [17]
3. SPEAKERS MAIN button [27, 29]
4. SPEAKERS REMOTE button [48]
5. REC OUT button [43]
6. MULTI SOURCE button [48]
7. Display
8. Re-EQ button [40]
9. Remote Sensor [5]
10. MIDNIGHT THEATER button [40]
11. Controls for tuning and Surround mode/
parameter adjustment
ENTER button [18, 30, 33, 35, 40, 41]
Jog dial (SMART SCAN CONTROLLER)
[18, 23, 27, 30, 32-35, 37, 39-41]
PRESET button [34]
TUNING button [32]
SURROUND button [27, 39-41]
PARAMETER button [23, 27, 40]
12. MASTER VOLUME control knob [27, 29]
13. TREBLE control knob [31]
14. BASS control knob [31]
15. 3-D BASS button [31]
16. Controls for frequency presetting
MEMORY button [33, 35]
FM MUTE/MODE button [32, 33, 35]
17. Controls for display and tuning
DISPLAY button [35, 37]
CHARACTER button [35]
AUTO TUN button [32, 35]
SCAN button [34, 37]
GROUP button [33, 34]
18. TAPE-2 MONITOR button [44]
19. Input selector buttons [27, 30]
20. PTY/TP button (European model only)
[37]
21. MULTI-CH INPUT button [29]
22. DIGITAL AUDIO SELECTOR button
[30]
23. VIDEO-3 input jacks [9, 43]
24. PHONES jack [31]
25. Power on/off switch (Other than US and
Canadian models) [17]
European models
MASTER VOLUME
MAX MIN
TREBLE
SYSTEM
PHONES
DISPLAY PTY/ TP CHARACTER SCAN GROUP MEMORY FM MUTE / MODE
CLEAR
TI CH INPUT MUL
VIDEO CAM INPUT / 3 VIDEO
VIDEO AUDIO L R(MONO)
BASS
DIGITAL AUDIO
SELECTOR
S VIDEO
STAND-BY
AUTO TUN
SMART SCAN CONTROLLER
ENTER
3-D BASS MAIN REMOTE
SPEAKERS
PRESET
TUNING
SURROUND
PARAMETER
CD PHONO AM FM TAPE-2
MONITOR
TAPE-1
M D
VIDEO-3
CAM
VIDEO-2
VCR-2 / TV
VIDEO-1
VCR-1
DVD
MIDNIGHT
THEATER Re-EQ MULTI SOURCE REC OUT
AUDIO VIDEO CONTROL RECEIVER TX-DS 656
POWER
OFF ON
7 3 12
22
2 1 11
13 14 16 21 17 18 15 19 23 24
4 5 6 8 9
25 20
10
