Multi-room system connections

U.S.A. and Canadian models (Xantech Multi-Room Systems)
Do not plug in the power cord until all connections have been made.
When making connections 1 through 5, be sure to connect the units as shown in the diagram below. Do not make a mistake when connecting the units.

A. Operating components displaying Onkyo's z mark from the sub-room

Components mounted in a rack should be connected as shown below to enable remote control operation.

1. Set up the components (a) displaying

Onkyo's z mark.

2. Connect the sub-room speaker cables to the

FRONT REMOTE SPEAKERS connectors
on the TX-DS656. (
1)

3. Install Connecting Block in the main room,

then connect it to the TX-DS656. (2)

4. Install the Remote Sensor in the sub-room,

then connect it to the Connecting Block in
the main room. (
3)

1. Connect the components (b) to the TX-DS656.
2. Make the connections described above in

steps 2 through 4 of section A.

3. Install Emitter (c) so that its sensor is

directed toward these components, then
connect it to the TX-DS656. (
4)

■ Operating components which are positioned

out of the range of the emitter installed as
described above

4. Connect the components (d) to the TX-DS656.
5. Install another Emitter (e) so that its sensor

is directed toward these components, then
connect it to the Connecting Block. (
5)

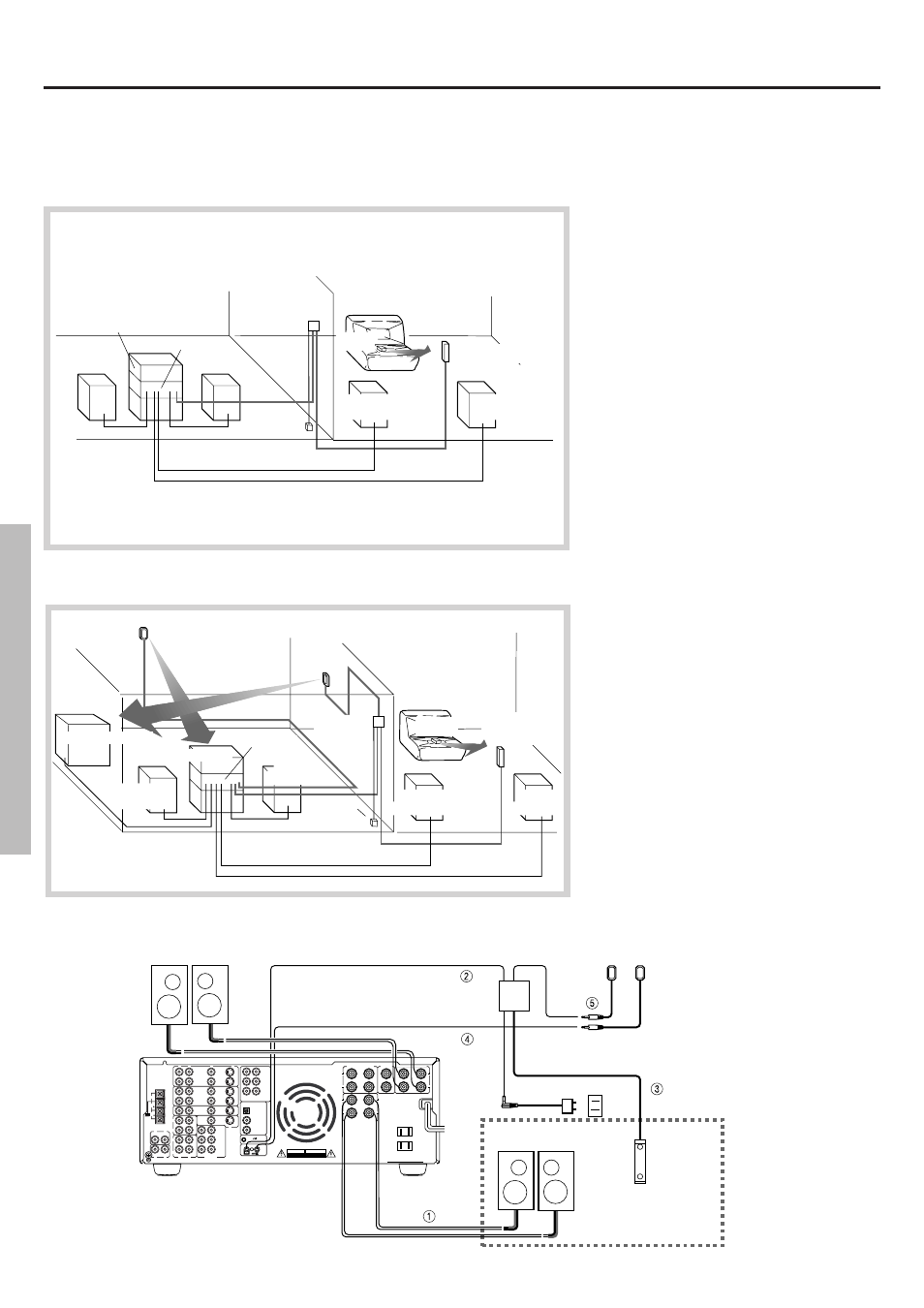

Connection diagram
