Connection
9

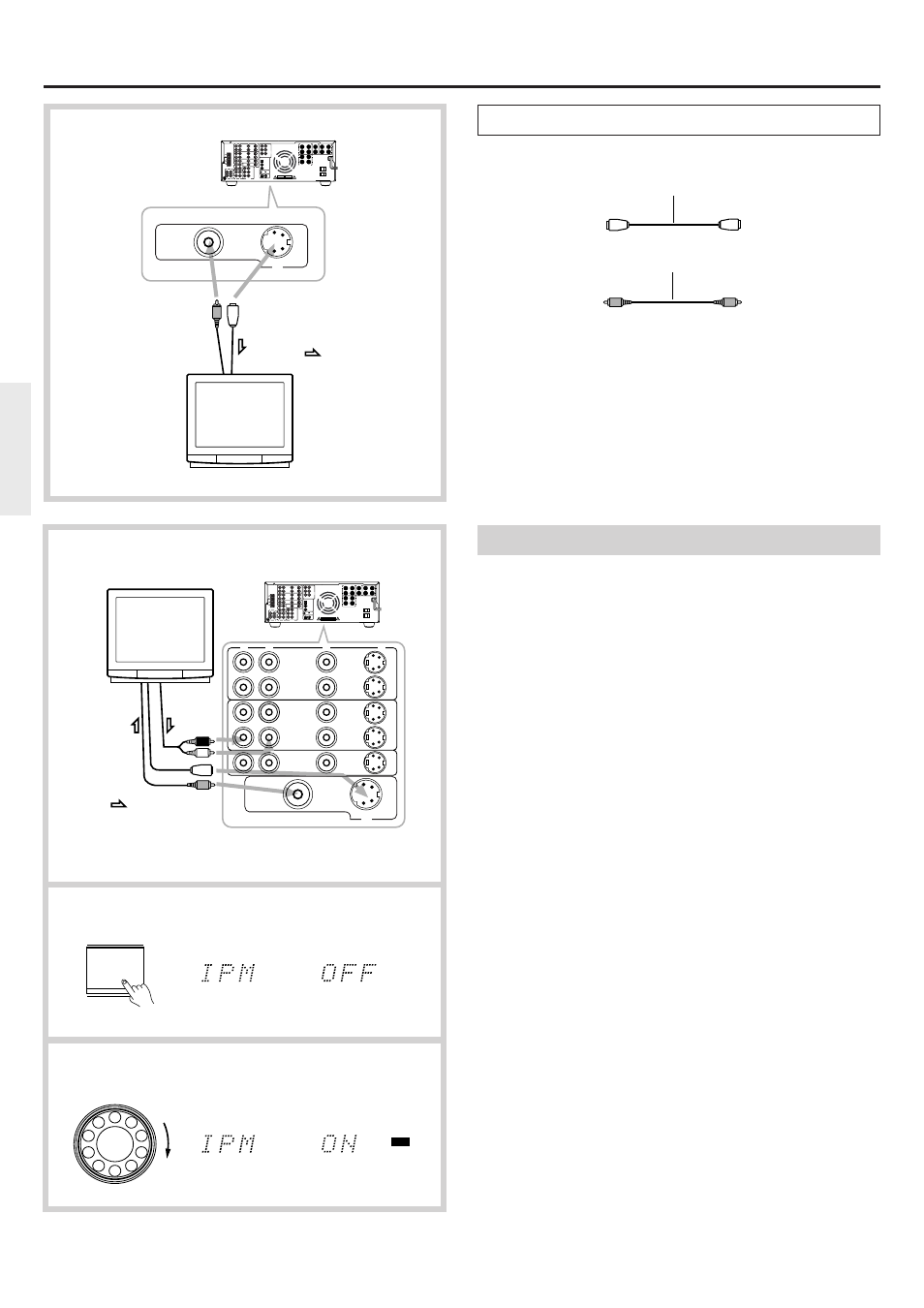

Connecting a TV/monitor
A TV or monitor equipped with a video input jack can be connected to
the TX-DS656.
Note:
If distortion of the TV image occurs or if noise is output from the unit,
place the unit and the TV as far apart as possible.
Turning the unit on/off with the TV's power switch – IPM function
The TX-DS656 is equipped with the IPM (Intelligent Power Manage-
ment) system.
Just turn on your TV's power switch and, in about 5 seconds, the TX-
DS656 turns on automatically. If you turn off the TV's power switch,
"." flashes on the display and the TX-DS656 automatically turns off in
about 5 minutes.
To activate the IPM function...
1. Connect the audio output of your TV to the TX-DS656's
VIDEO-2 L and R IN jacks.
If a monaural TV is used, connect the TV's audio output to the TX-
DS656's VIDEO-2 L IN jack.
2. Press the VIDEO-2 VCR-2/TV button on the front panel.
"VIDEO-2 VCR" or "VIDEO-2 TV" appears on the display.
3. Press the VIDEO-2 VCR/TV button repeatedly until "IPM
OFF (or IPM ON, if the function is already activated)" appears
on the display.
4. Rotate the SMART SCAN CONTROLLER to select "IPM ON".
• The IPM function is activated and, after 3 seconds, the display
changes to "VIDEO-2 TV".
• If you select "IPM OFF", the display will change to "VIDEO-2
VCR" after 3 seconds.
Note:
• The IPM system may not function properly with some TV sets.
• When the IPM system is activated, the video input signals to the
VIDEO-2 V IN jack are not output from the MONITOR OUTPUT
V jack.
• Setting a digital input mode for the VIDEO-2 input source auto-
matically turns off the IPM function. You cannot turn on the TX-
DS656 automatically.
• The IPM function cannot be used when the MULTI-CH INPUT
source is selected.
CAUTION:
If you have connected the TV's video output and video input to the TX-
DS656's VIDEO-2 V IN and MONITOR OUTPUT V jacks, be sure to
turn ON the IPM function. Otherwise, the signals will loop in the
circuit, causing damage to the unit.
3
1
VIDEO-2
VCR-2 / TV
IPM
MJ
27122482
ANTENNA
AM
R
V
L
OUT
IN
VIDEO-1
OUT
IN
VIDEO-2
OUT
IN
OUT
IN
IN
IN
TAPE-1
TAPE-2
DVD
OUT
IN
OUT
R
L
R
L
PHONO
CD
GND
(PLAY)
(REC)
(PLAY)
(REC)
R
L
CENTER SUBWOOFER
SURROUND
FRONT
R
L
R
L
V
PRE OUT
FRONT
R
L
R
L
DIGITAL INPUT
DIGITAL 1
(OPTICAL)
DIGITAL 2
(COAXIAL)
OUT
IN
REMOTE CONTROL
R
L
AC OUTLETS
MONITOR
OUTPUT
SURROUND
CENTER
SUBWOOFER
DIGITAL 3
(COAXIAL)
S
MULTI
CHANNEL
INPUT
L
R
R
L
S
IN
SURROUND SPEAKERS
FRONT
SPEAKERS
MAIN
CENTER
SPEAKER
AC 120V 60Hz
SWITCHED
TOTAL 120W 1A MAX.
FRONT REMOTE SPEAKERS
FM
75
FM
300
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
AVIS
CAUTION: SPEAKER IMPEDANCE
6 OHMS MIN. / SPEAKER
V
MONITOR
OUTPUT
S
TX-DS656
IN
TV
: Signal flow
S-Video connection cable
To TV's S-Video
input jack
To receiver's MONITOR
OUTPUT S jack
Video connection cable
To TV's Video input
jack
To receiver's MONITOR
OUTPUT V jack
(Yellow)
(Yellow)
MJ
27122482
ANTENNA
AM
R
V
L
OUT
IN
VIDEO-1
OUT
IN
VIDEO-2
OUT
IN
OUT
IN
IN
IN
TAPE-1
TAPE-2
DVD
OUT
IN
OUT
R
L
R
L
PHONO
CD
GND
(PLAY)
(REC)
(PLAY)
(REC)
R
L
CENTER SUBWOOFER
SURROUND
FRONT
R
L
R
L
V
PRE OUT
FRONT
R
L
R
L
DIGITAL INPUT
DIGITAL 1
(OPTICAL)
DIGITAL 2
(COAXIAL)
OUT
IN
REMOTE CONTROL
R
L
AC OUTLETS
MONITOR
OUTPUT
SURROUND
CENTER
SUBWOOFER
DIGITAL 3
(COAXIAL)
S
MULTI
CHANNEL
INPUT
L
R
R
L
S
IN
SURROUND SPEAKERS
FRONT
SPEAKERS
MAIN
CENTER
SPEAKER
AC 120V 60Hz
SWITCHED
TOTAL 120W 1A MAX.
FRONT REMOTE SPEAKERS
FM
75
FM
300
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
AVIS
CAUTION: SPEAKER IMPEDANCE
6 OHMS MIN. / SPEAKER
R
V
L
OUT
IN
VIDEO-1
OUT
IN
VIDEO-2
OUT
IN
OUT
IN
IN
IN
DVD
S
MONITOR
OUTPUT
S
V
TX-DS656
TV
IN
OUT
: Signal flow
4
IPM
SMART SCAN CONTROLLER
