29

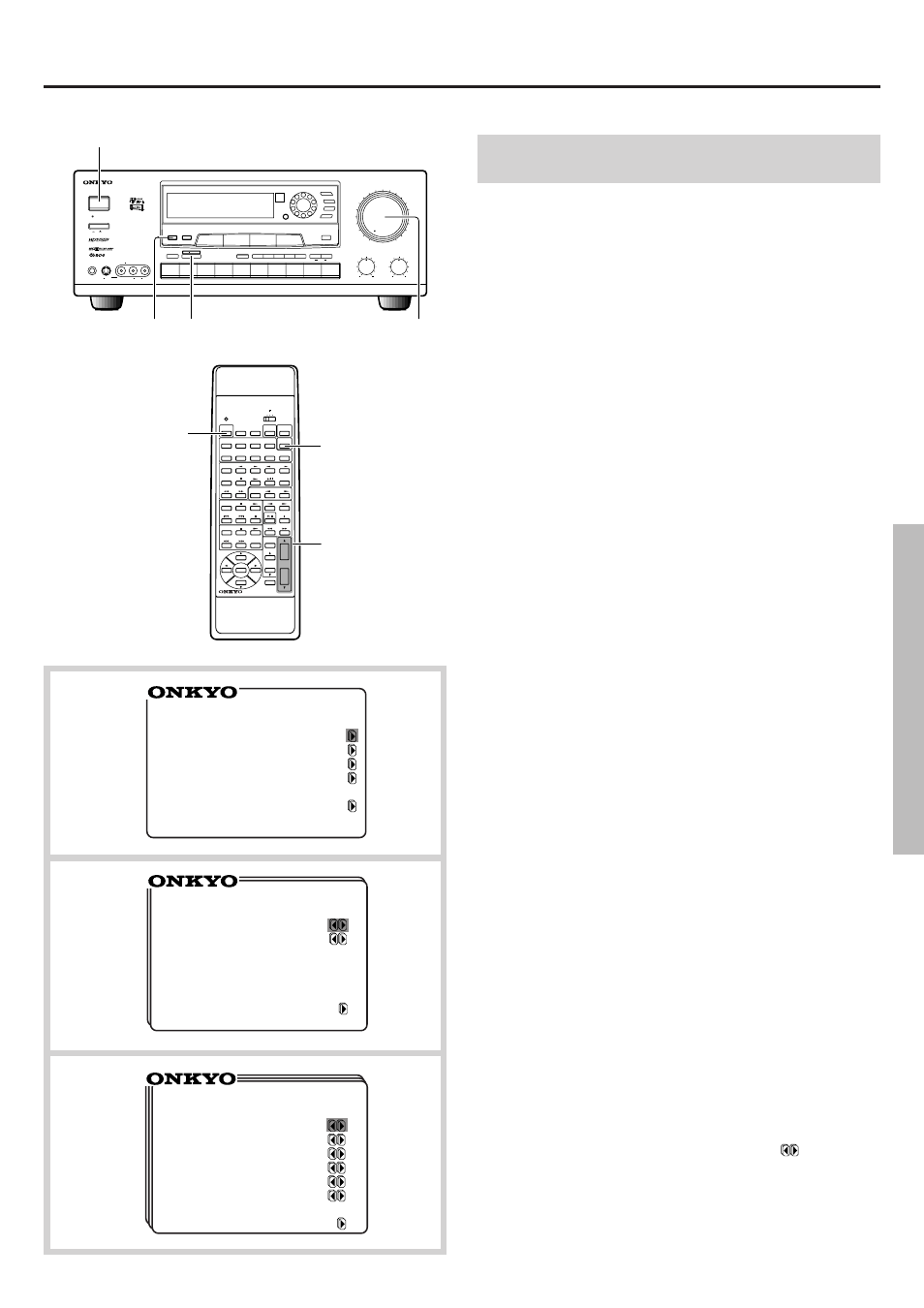

Playing the input source connected to the MULTI
CHANNEL INPUT connector
Using the front panel or the remote controller:
1. Press the POWER (or SYSTEM) button.
The STAND-BY indicator on the front panel goes out and the
display lights up.
Note:
If the SPEAKERS MAIN indicator is not lit on the display, press
the SPEAKERS MAIN button on the unit's front panel to make it
appear on the display.
2. Press the MULTI-CH INPUT button.
The video input source you selected most recently is automatically
selected.
3. Start playing the input source connected to the MULTI
CHANNEL INPUT connector.
4. Adjust the sound volume using the MASTER VOLUME
control knob on the front panel.
Turn the knob clockwise to increase the sound volume; turn it
counterclockwise to decrease the sound volume.
You can adjust the sound volume using the VOLUME y or u
button on the remote controller.
If you press the TAPE-2 MONITOR button...
The video source currently set is automatically selected.
1
MUTING
POWER SLEEP
DVD VIDEO-1 VIDEO-2
TAPE-1 TUNER PHONO C D
SOURCE SELECTOR
DVD
DISC
PAUSE / STEP
TONE TEST MODE SUR
VIDEO-3 M TI-CH UL
INPUT
TAPE-2
POWER
POWER
TAPE C D
TV/ VCR
VOLUME
TUNER
/ REMOTE
SPEAKER
CURSOR
ENTER
REMOTE CONTROLLER
CH SEL
SENDING/ LEARN SUBROOM
C H
A B
LEVEL
DIMMER
PRESET GROUP
LEARNED
PROGRAMMABLE AREA TV VIDEO /
SUBTITLE ON / OFF
RC-373M
4
2
VOLUME
Input source selection and surround setup
MASTER VOLUME
MAX MIN
TREBLE
SYSTEM
PHONES
DISPLAY PTY/ TP CHARACTER SCAN GROUP MEMORY FM MUTE / MODE
CLEAR
TI CH INPUT MUL
VIDEO CAM INPUT / 3 VIDEO
VIDEO AUDIO L R(MONO)
BASS
DIGITAL AUDIO SELECTOR
S VIDEO
STAND-BY
AUTO TUN
SMART SCAN CONTROLLER
ENTER
3-D BASS MAIN REMOTE SPEAKERS
PRESET
TUNING
SURROUND
PARAMETER
CD PHONO AM FM TAPE-2 MONITOR TAPE-1 M D VIDEO-3 CAM VIDEO-2 VCR-2 / TV VIDEO-1 VCR-1 DVD
MIDNIGHT
THEATER Re-EQ MULTI SOURCE REC OUT
AUDIO VIDEO CONTROL RECEIVER TX-DS 656
POWER
OFF ON
SPEAKERS
MAIN
*** Menu ***
Input Selector
Rec Selector
Surround Setup
Screen Setup
System Setup
** Input Selector **
Picture = VIDEO-1
Sound = MULTI-CH
Level Calibration
* Level Calibration *
Left = 0dB
Center = 0dB
Right = 0dB
R-Sur. = 0dB
L-Sur. = 0dB
Subwoofer = 0dB
Default
Using the on-screen Menu:
1. Press the ENTER button.
The Menu appears on the TV screen. (a)
2. Select "Input Selector" using the y or u cursor button and
then press the s cursor button to display the Input Selector
screen.
3. Select the input source(s) using the y or u and a or s cursor
buttons. (b)
The input sources you can select are same as those you can select
by using the input selector buttons on the front panel.
"Picture"
Select from DVD, VIDEO-1, VIDEO-2, and VIDEO-3.
"Sound" Select MULTI-CH.
4. Start playing the selected input source.
5. Select "Level Calibration" using the u cursor button and then
press the s cursor button to display the Level Calibration
screen.
6. While monitoring the sound, select the speaker type using the
y or u cursor button and then adjust the output level using
the a or s cursor button. (c)
The adjustment range is -12 dB to +12 dB (-30 dB to +12 dB for
Subwoofer).
7. To adjust the output levels of all speaker types simultaneously,
use the VOLUME y or u button.
To reset the default output level for all speakers...
First, display the screen used in step 6 of "Using the on-screen Menu" above.
1. Select "Default" using the u cursor button and then press the
s cursor button. On the screen displayed YES NO, select
"YES" (Reset) or "NO" (NOT reset).
2. Press the a cursor button to reset the speaker levels.
The levels of all the speakers have been reset to 0 dB.
3. Press the ENTER button.
