13

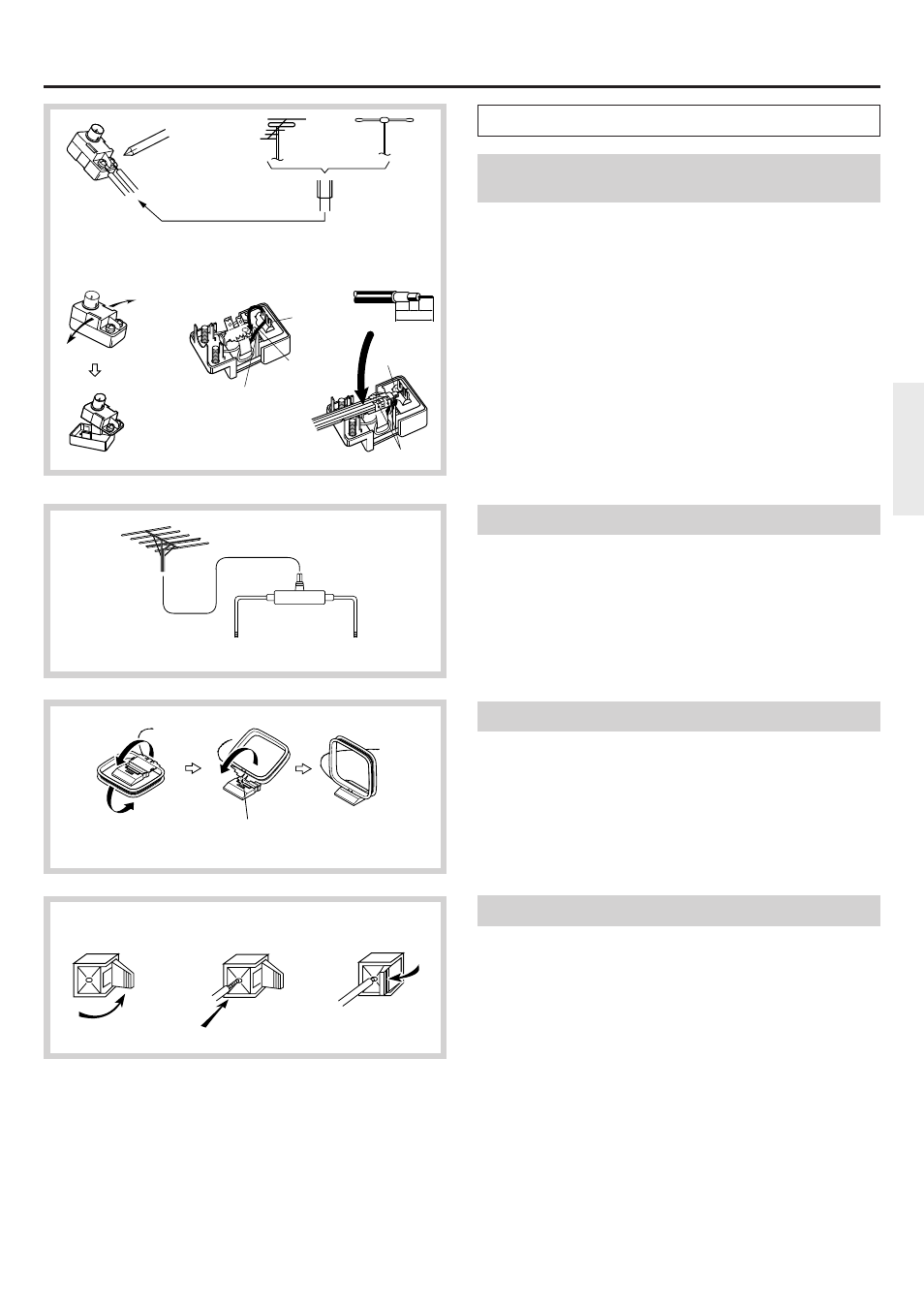

0 Connecting the antennas
Connecting the antenna cable to the 75/300 ohm
antenna adapter (worldwide models)
Connecting a 300 ohm ribbon wire to the 75/300 ohm adapter:
Loosen the screws and wrap the wire around them. Tighten the screws
with a screwdriver.
Connecting a coaxial :
1. With your fingernail or a small screwdriver, press the stoppers
outward and remove the cover.
2. Remove the transformer wire A from slit B and insert it into slit C.
3. Prepare the coaxial cable as shown in the diagram.
Connect the 75/300 ohm antenna adapter to the coaxial cable.
1 Insert the end of the cable.
2 Clamp it in place with pliers.
4. Re-install the cover.
• This adapter is included if your receiver is a worldwide model.
✦ ✦ ✦
✦ ✦ ✦ ✦ ✦
✦ ✦ ✦
6
mm
3
mm
6
mm
15mm
2
1
300 ohms
ribbon wire
Indoor
antenna
Outdoor
antenna
Slit B
Slit C
Wire A
1 2 3
Directional linkage
Do not use the same antenna for both FM and TV (or VCR) reception
since the FM and TV (or VCR) signals can interfere with each other. If
you must use a common FM/TV (or VCR) antenna, use a directional
linkage-type splitter.
Assembling the AM loop antenna
Assemble the loop antenna as shown in the illustration.
Insert into the hole.
1 2 3
Directional linkage-
type splitter
To TX-DS656 To TV (or VCR)
Connecting the antenna cable
1. Press down on the lever.
2. Insert the wire.
3. Return the lever.
Connection
