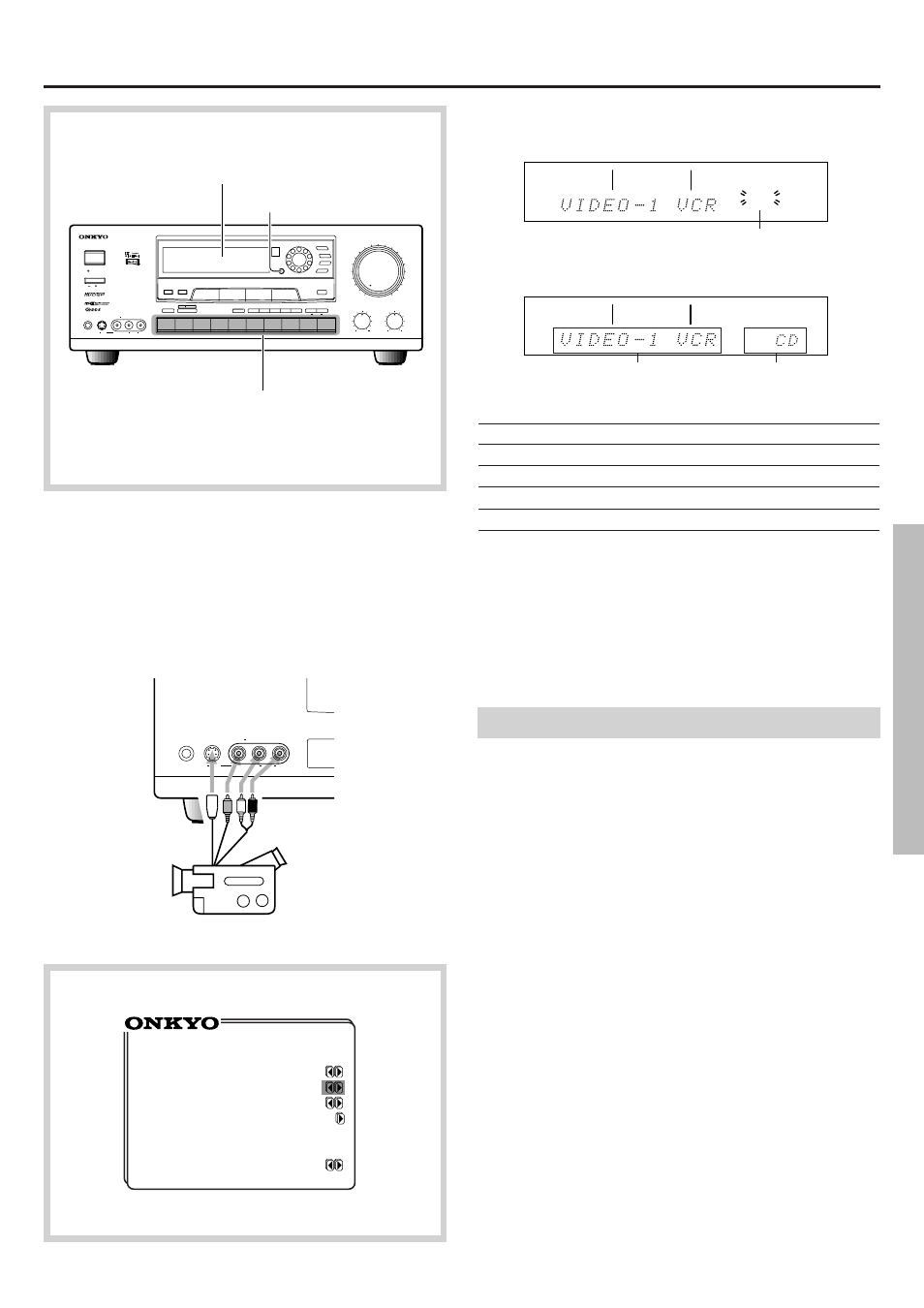

Using the front panel
1. Press the REC OUT button.
The REC OUT indicator flashes for 8 seconds.
2. While the REC OUT indicator is flashing, select the recording
source using the source selector buttons.
The REC OUT indicator and the selected recording source name flash.
Indication Video recording Indication Audio recording
source source
D DVD CD CD
V1 VIDEO-1 T1 TAPE-1
V2 VIDEO-2 T2 TAPE-2
V3 VIDEO-3 TU FM or AM
PH PHONO
3. Start recording on the recording equipment, then start playing
the selected source.
Now the recording source will not change even if you change the
input source by using the source selector buttons.
To set the source selected as the recording source using the source
selector buttons...
In step 1, press the REC OUT button again while the REC OUT
indicator is flashing.
Adding sound to video camera images
You can add music from CDs or other source to video images from a
video camera. The following explanation assumes that you are adding
sound from a CD player to images from a video camera connected to
the VIDEO-3/VIDEO CAM INPUT connectors.
In the following procedure, use the remote controller unless otherwise
specified.
1. Connect a video camera to the VIDEO 3/VIDEO CAM INPUT
connector.
2. Press the ENTER button.
The Menu appears on the TV screen.
3. Select "Input Selector" using the y or u cursor button, then
press the s cursor button.
The Input Selector screen appears.
4. Select "Picture" using the y or u button and then select
"VIDEO-3" using the a or s cursor button.
5. Select "Sound" using the y or u button and then select "CD"
using the a or s cursor button. (a)
6. Press the ENTER button.
7. Start recording on the video cassette recorder, then start
playback on the CD player and the video camera.
a
** Input Selector **
Picture = VIDEO-3
Sound = CD
TAPE-2 Moni. = OFF
Input Mode=Digital-2
Surround
Mode= LIVE
MASTER VOLUME
MAX MIN
TREBLE
SYSTEM
PHONES
DISPLAY PTY/ TP CHARACTER SCAN GROUP MEMORY FM MUTE / MODE
CLEAR
TI CH INPUT MUL
VIDEO CAM INPUT / 3 VIDEO
VIDEO AUDIO L R(MONO)
BASS
DIGITAL AUDIO SELECTOR
S VIDEO
STAND-BY
AUTO TUN
SMART SCAN CONTROLLER
ENTER
3-D BASS MAIN REMOTE SPEAKERS
PRESET
TUNING
SURROUND
PARAMETER
CD PHONO AM FM TAPE-2 MONITOR TAPE-1 M D VIDEO-3 CAM VIDEO-2 VCR-2 / TV VIDEO-1 VCR-1 DVD
MIDNIGHT
THEATER Re-EQ MULTI SOURCE REC OUT
AUDIO VIDEO CONTROL RECEIVER TX-DS 656
POWER
OFF ON
Display
ENTER
Source selector buttons
Recording from a source
Flashing
SPEAKERS
V- 1
MAIN SURROUND MODE HALL
REC OUT
STEREO
3-DB
SPEAKERS
V- 1
MAIN SURROUND MODE HALL
REC OUT
STEREO
3-DB
Playback source Recording source
PHONES VIDEO CAM INPUT / 3 VIDEO
VIDEO AUDIO L R(MONO) S VIDEO
Video camera/TV game machine
