8

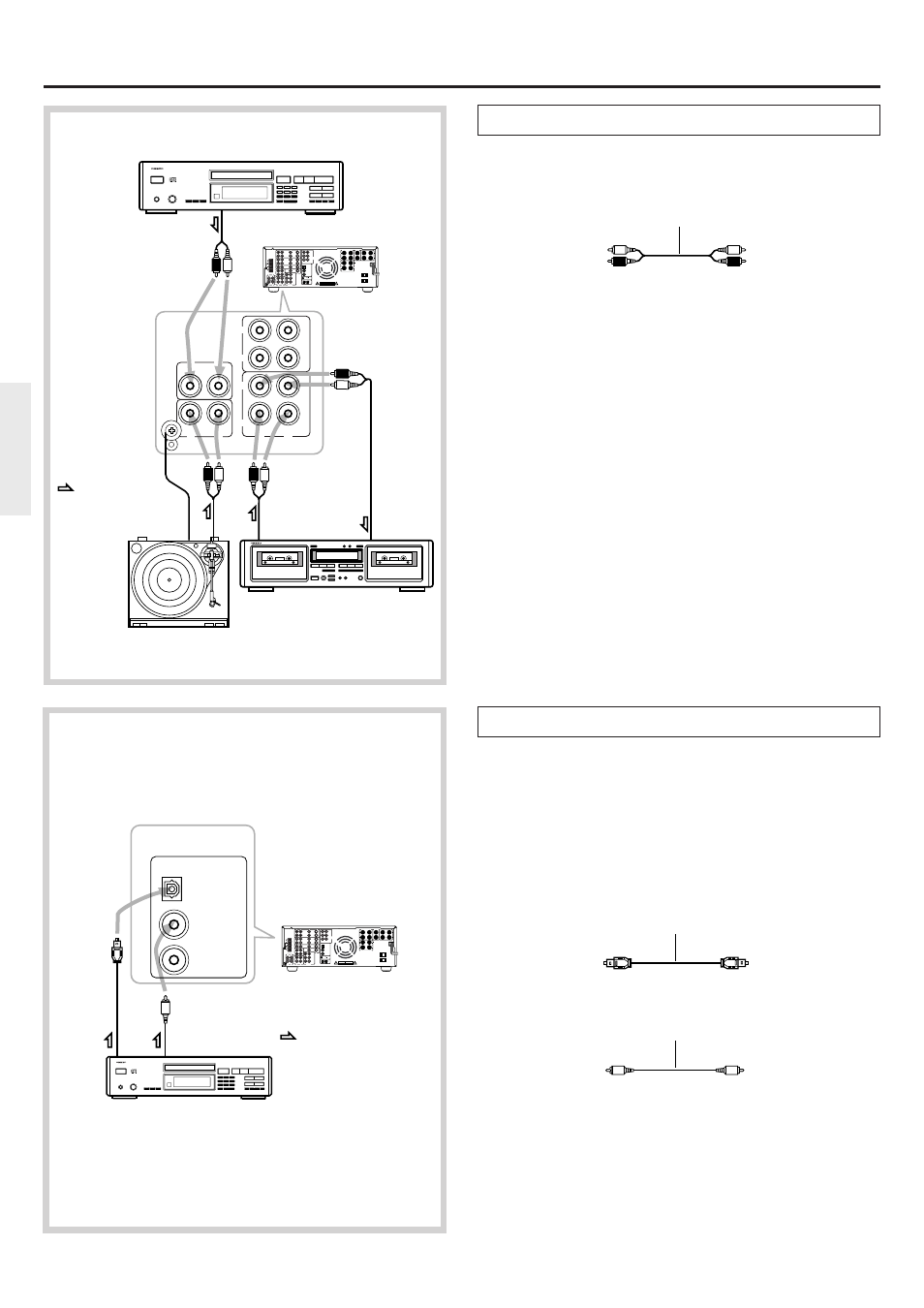

Connection
1 Connecting analog audio source equipment
Connect your audio source equipment, such as a turntable, CD player,
MD recorder, DAT deck, or cassette tape deck, as shown below.
2 Connecting digital audio source equipment
The TX-DS656 has three digital input terminals. Therefore, you can
connect up to three digital audio sources, such as a CD player, MD
recorder, or DAT deck, etc., using optical and coaxial cables.
Note:
Even if the digital source is connected via optical or coaxial cable, it
also must be connected via audio connection cables. The TX-DS656
receives analog signals from input source equipment only during
recording or when the Multi-source function is enabled.
If you have a 3-head cassette tape deck...
Connect it to the TAPE-2 IN jacks. This allows you to monitor the
sound being recorded.
GND terminals
Connect the grounding wire of your turntable to one of these terminals.
Use the other terminal as a spare. Do not leave the grounding wire
connected if noise increases after connecting.
Note:
• Remove the protective cap covering the DIGITAL-1 (OPTICAL)
terminal before trying to make a connection. When this terminal is
not in use, replace the protective cap.
• If you have an LD player with AC-3RF output, connect it via an
AC-3RF demodulator to one of the TX-DS656's DIGITAL INPUT
terminals.
MJ 27122482
ANTENNA
AM
R V L OUT
IN VIDEO-1 OUT
IN
VIDEO-2 OUT
IN
OUT
IN
IN IN
TAPE-1
TAPE-2
DVD
OUT IN
OUT
R L
R L PHONO
CD
GND
(PLAY)
(REC)
(PLAY)
(REC)
R L CENTER SUBWOOFER
SURROUND
FRONT R L
R L
V
PRE OUT
FRONT R L
R L
DIGITAL INPUT DIGITAL 1 (OPTICAL) DIGITAL 2 (COAXIAL)
OUT IN REMOTE CONTROL
R
L
AC OUTLETS
MONITOR OUTPUT
SURROUND
CENTER SUBWOOFER
DIGITAL 3 (COAXIAL)
S
MULTI CHANNEL INPUT
L
R R L
S
IN
SURROUND SPEAKERS FRONT SPEAKERS MAIN CENTER SPEAKER
AC 120V 60Hz SWITCHED TOTAL 120W 1A MAX.
FRONT REMOTE SPEAKERS
FM 75 FM 300
WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR AVIS
CAUTION: SPEAKER IMPEDANCE 6 OHMS MIN. / SPEAKER
DIGITAL INPUT
DIGITAL 1
(OPTICAL)
DIGITAL 2
(COAXIAL)
DIGITAL 3
(COAXIAL)
TX-DS656
Optical
output
Coaxial output
CD player, DAT deck or
MD recorder
: Signal flow
Audio connection cable
To source's Left
output jack
To source's Right
output jack To receiver's TAPE-1/
TAPE-2 R IN (PLAY)
To receiver's TAPE-1/
TAPE-2 L IN (PLAY)
(White)
(Red)
(White)
(Red)
MJ 27122482
ANTENNA
AM
R V L OUT
IN VIDEO-1 OUT
IN
VIDEO-2 OUT
IN
OUT
IN IN IN
TAPE-1
TAPE-2
DVD
OUT IN
OUT
R L
R L PHONO
CD
GND
(PLAY)
(REC)
(PLAY)
(REC)
R L CENTER SUBWOOFER
SURROUND
FRONT R L
R L
V
PRE OUT
FRONT R L R L
DIGITAL INPUT DIGITAL 1 (OPTICAL) DIGITAL 2 (COAXIAL)
OUT IN REMOTE CONTROL
R
L
AC OUTLETS
MONITOR OUTPUT
SURROUND
CENTER SUBWOOFER
DIGITAL 3 (COAXIAL)
S
MULTI CHANNEL INPUT
L
R R L
S
IN
SURROUND SPEAKERS FRONT SPEAKERS MAIN CENTER SPEAKER
AC 120V 60Hz SWITCHED TOTAL 120W 1A MAX.
FRONT REMOTE SPEAKERS
FM 75 FM 300
WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR AVIS
CAUTION: SPEAKER IMPEDANCE 6 OHMS MIN. / SPEAKER
TAPE-1
OUT
IN
OUT
CD
(PLAY)
(REC)
(PLAY)
(REC)
L
IN
/
R
PHONO
L
R L
TAPE-2
R
GND
CD player
OUT
TX-DS656
Turntable
IN OUT OUT
MD recorder, DAT deck, or
cassette tape deck
: Signal flow
• Source with optical digital output
To source's optical
output terminal
To receiver's DIGITAL
INPUT DIGITAL 1
(OPTICAL) terminal
Optical cable
• Source with coaxial digital output
To source's coaxial
output terminal
To receiver's DIGITAL
INPUT DIGITAL 2
(COAXIAL) or DIGITAL
3 (COAXIAL) terminal
Coaxial cable
