14
Connection

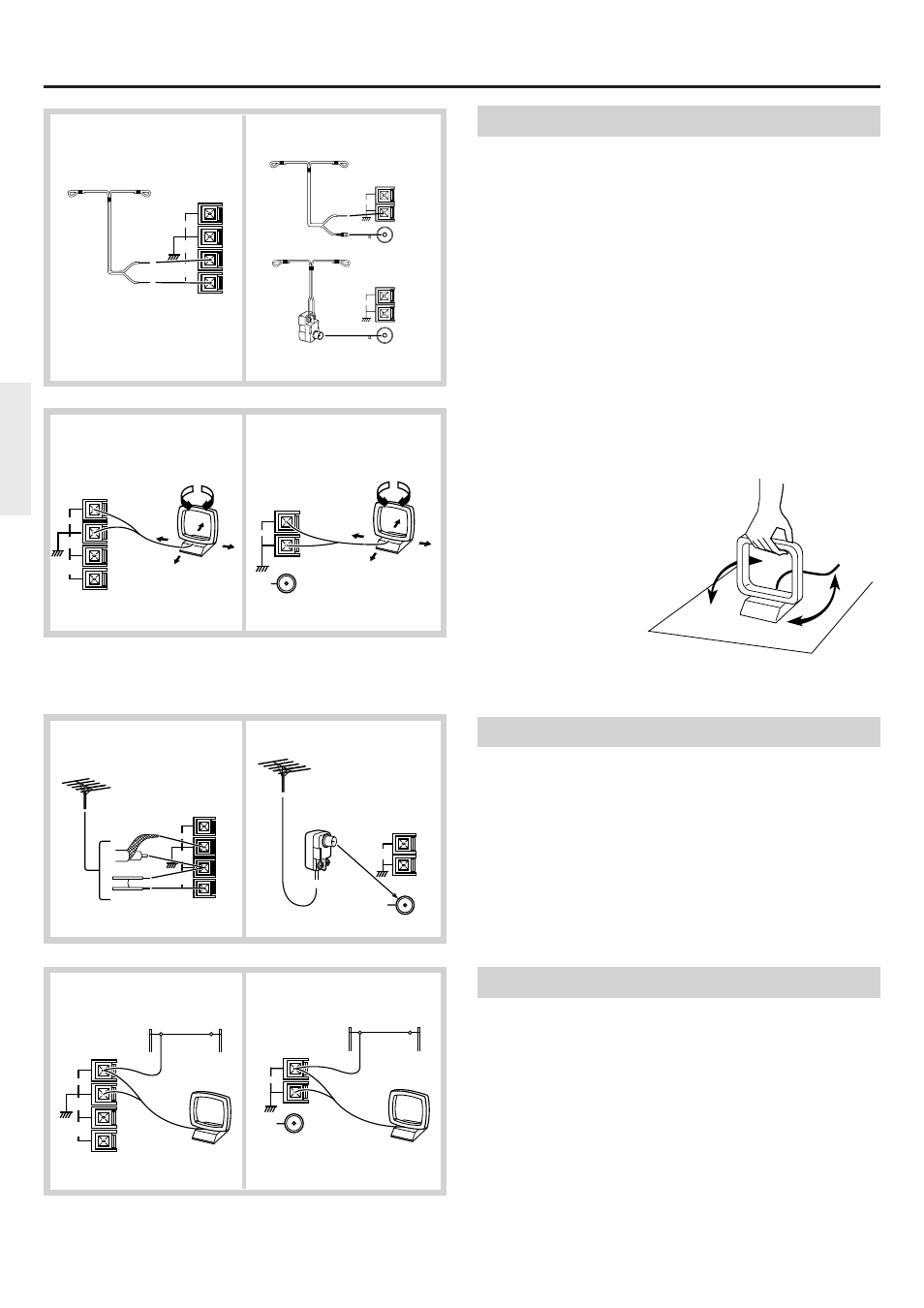

Connecting the included antennas
Connecting the T-shaped FM antenna:
The T-shaped FM antenna is for indoor use only. Extend the antenna
and move it in various directions until the clearest signal is received.
Fix it with push pins or similar implements in the position that will
cause the least amount of distortion.
If the reception is not very clear with the attached T-shaped FM
antenna, the use of an outdoor antenna is recommended.
Connecting the AM loop antenna:
The AM loop antenna is for indoor use only. Set it in the direction and
position where you receive the clearest sound. Put it as far away as
possible from the unit, TVs, speaker cables,
and power cords.
When reception is not satisfactory with
the attached AM loop antenna alone,
connection of an outdoor antenna is
recommended.
ANTENNA
FM
75 Ω
AM
FM
300 Ω
ANTENNA
FM
75
AM
ANTENNA
FM
75
AM
U.S. and Canadian models Other models
U.S. and Canadian models Other models
U.S. and Canadian models Other models
U.S. and Canadian models Other models
ANTENNA
FM
75 Ω
AM
FM
300 Ω
FM
75 Ω
ANTENNA
AM
ANTENNA
FM
75 Ω
FM
300 Ω
AM
FM
75 Ω
ANTENNA
AM
ANTENNA
FM
75 Ω
AM
FM
300 Ω
ANTENNA
FM
75 Ω
AM
Connecting an FM outdoor antenna
Please make sure that you follow the considerations below regarding
the location.
Keep the antenna away from noise sources (neon signs, busy roads, etc.).
It is dangerous to put the antenna close to power lines. Keep it well
away from power lines, transformers, etc.
• To avoid the risk of lightning and electrical shock, grounding is
necessary. Follow item 19 of the “Important Safeguards” on page 2
when you install the outdoor antenna.
Connecting an AM outdoor antenna
The outdoor antenna will be more effective if it is stretched horizon-
tally above a window or outside.
• Do not remove the AM loop antenna.
• To avoid the risk of lightning and electrical shock, grounding is
necessary. Follow item 19 of the “Important Safeguards” on page 2
when you install the outdoor antenna.
